Yellow Color Polyester 72t Silk Screen Printing Mesh Roll

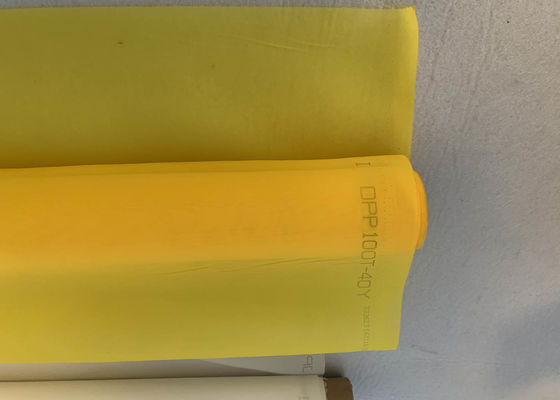

Large Image : Yellow Color Polyester 72t Silk Screen Printing Mesh Roll

Product Details:

Place of Origin:	Hebei, China (Mainland)
Brand Name:	R&K
Certification:	FDA / SGS / ISO:9001
Model Number:	R&K-Polyester Mesh

Payment & Shipping Terms:

Minimum Order Quantity:	1 meter
Price:	Negotiable
Packaging Details:	cartons;cases;as your requirement
Delivery Time:	7~15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000 Meters per month

Contact Now

Detailed Product Description

Product Name:	72T Yellow Color Polyester Silk Screen Printing Mesh Roll	Monofilament Style:	Yes
Printing:	Silk Screen Printing	Material:	Polyester
Mesh Count:	72T	Color:	Yellow
Weave Type:	Plain Weave	Width:	1.27m , 1.45m ,1.65m
Package:	Roll Package	Length:	50 Meter Per Roll
High Light:	silk screen printing mesh fda , 72t silk screen printing mesh , acid resistant screen printing mesh material

72T Yellow Color Polyester Silk Screen Printing Mesh Roll

Product Details

Material:	100%Polyester	Color:	White,yellow,black
Thread Diameter:	30-150micron	Mesh:	40-400mesh/inch
Length:	30-70m/roll	Width:	1.15-3.6m
Sample:	Free	Weave:	Plain Weave,twill Weave

With our advanced technology and equipment, we only provide high-quality screens.
We have experienced technicians and advanced equipment imported from Japan from Switzerland. So as to ensure quality.
Our products have high tension tension without tension control, accurate control, chemical resistance, abrasion and heat resistance and

Moisture.
Products are widely used in the electronics industry, textile printing and dyeing, ceramics, glass printing, printing and other fields

Product specification

Mesh Count Diameter (Mesh/inch μm)	Mesh Count (Mesh /Inch)	Weave	Aperture (μm)	Thread Diameter (μm)	Opening (%)	Thickness(μm)	Thickness Tollerance (+/- μm)	Theoretical lnk(cm3/m2)	Weight (g/m2)
12-250	30	1:1	583	250	49	490	20	228	117
13-150PW(SL)	33	1:1	619	150	64	300	14	128	60
16-200	40	1:1	425	200	46	400	18	172	148
20-120PW(T)	50	1:1	380	120	58	210	11	122	76
21-80pw(S)	55	1:1	296	80	69	120	9	79	35
21-150PW(SL)	55	1:1	326	150	46	260	14	118	121
24-100PW(T)	60	1:1	316	100	57	136	11	65	81
28-140PW(SL)	70	1:1	217	140	40	195	13	76	125
32-55PW(S)	81	1:1	257	55	67	103	6	67	28
32-64PW(S)	81	1:1	248	64	63	95	6	56	32
32-100PW(T)	81	1:1	212	100	45	165	8	73	75
36-90PW(T)	92	1:1	183	90	44	150	8	65	68
39-55PW(S)	100	1:1	177	55	56	88	6	55	30
40-80PW(T)	103	1:1	166	80	44	133	7	59	60
43-80PW(T)	110	1:1	149	80	41	130	7	53	64
47-45PW(S)	120	1:1	166	45*2	61	80	6	42	40
47-55PW(S)	120	1:1	152	55	51	88	6	48	34
48-70PW(T)	122	1:1	133	70	41	115	6	47	55
53-45PW(S)	135	1:1	143	45*2	57	79	7	41	46
53-55PW(S)	135	1:1	133	55	50	86	6	42	40
54-64PW(T)	137	1:1	115	64	39	100	5	39	51
54-70(PW)HD	137	1:1	109	70	35	116	6	40	62
61-64PW(T)	155	1:1	90	64	31	101	5	30	58
64-55PW(S)	160	1:1	98	55	38	98	5	36	48
64-64PW(T)	160	1:1	85	64	30	115	6	34	61
68-55PW(S)	175	1:1	85	55	34	85	4	28	48
68-64PW(T)	175	1:1	78	64	28	105	5	30	65
72-48PW(S)	182	1:1	90	48	36	78	5	33	39
72-55PW(T)	182	1:1	85	55	30	90	5	27	51
77-48PW(S)	195	1:1	77	48	35	80	4	28	42
77-55PW(T)	195	1:1	67	55	27	88	4	24	55
80-48PW(T)	200	1:1	72	48	33	74	4	25	56
90-48PW(T)	230	1:1	56	48	25	78	4	19	50
100-40PW(T)	255	1:1	58	40	33	63	3	21	37
110-40PW(HD)	280	1:1	48	40	27	64	3	17	40
120-31PW(S)	305	1:1	49	31	35	49	3	17	26
120-34PW(T)	305	1:1	45	34	30	55	3	16	35
120-40PW(HD)	305	1:1	37	40	20	63	3	13	44
130-34PW(T)	330	1:1	40	34	27	55	3	15	37
140-31PW(S)	355	1:1	36	31	26	48	2	12	30
140-34PW(T)	355	1:1	31	34	20	53	3	10	39
140-34TW(T)	355	1:1	33	34	21	56	3	12	41
150-31PW(S)	380	1:1	32	31	23	49	3	11	32
150-34PW(T)	380	1:1	23	34	13	55	3	6.5	42
165-34PW(S)	420	1:1	23	31	15	48	2	7	36
180-27PW(S)	460	1:1	23	27	16	43	2.5	7	31

Product Characteristics

Screen Printing Silk Screen with characteristics:

1. screen printing adaptability is very strong, wide range of applications.

2. Screen printing not only can be monochrome printing, but also can be color register and screen color printing.

3. The Light Resistance of screen printing products is stronger than that of other kinds of printing products. It is more suitable for outdoor advertising and signage.

4, screen printing can be a large area of printing, today's screen printing products up to a maximum range of 3 meters 4 meters, or more.
