77t Screen Printing Fabric Mesh For Cd / Dvd Printing

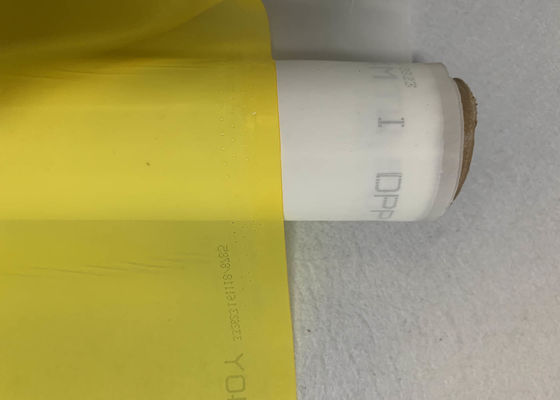

Large Image : 77t Screen Printing Fabric Mesh For Cd / Dvd Printing

Product Details:

Place of Origin:	Hebei, China (Mainland)
Brand Name:	R&K
Certification:	FDA / SGS / ISO:9001
Model Number:	R&K-Polyester Mesh

Payment & Shipping Terms:

Minimum Order Quantity:	1 meter
Price:	Negotiable
Packaging Details:	cartons;cases;as your requirement
Delivery Time:	7~15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000 Meters per month

Contact Now

Detailed Product Description

Product Name:	77 T 165 M Width Silk Screen Printing Mesh For CD / DVD Printing	Monofilament Style:	Yes
Printing:	Silk Screen Printing	Material:	Polyester
Mesh Count:	420 Mesh	Length:	50m , 100m
Weave Type:	Plain Weave	Usage:	CD / DVD Printing
Width:	165cm	Package:	Roll Package
High Light:	77t screen printing fabric mesh , acid resistant screen printing fabric mesh , acid resistant mesh for screen printing

77 T 165 M Width Silk Screen Printing Mesh For CD / DVD Printing

Product Details

Material	100% polyester
Product name	420 Mesh Yellow Color High air permeability Polyester Silk Screen Printing Mesh
Mesh count	40-420mesh
Keyword	Silk Screen Printing Mesh
Color	yellow
Thread Diameter	30-150micron
Weave style	Plain weave

Product description

The number of meshes is the number of threads per inch in the warp and weft directions of the fabric. Hebei Ruijing's woven mesh has the same number of meshes in the warp and weft directions.

The thread diameter is specified as the thread diameter in microns; the warp and weft counts are the same.

Product specification

Mesh Count Diameter (Mesh/inch μm)	Mesh Count (Mesh /Inch)	Weave	Aperture (μm)	Thread Diameter (μm)	Opening (%)	Thickness(μm)	Thickness Tollerance (+/- μm)	Theoretical lnk(cm3/m2)	Weight (g/m2)
12-250	30	1:1	583	250	49	490	20	228	117
13-150PW(SL)	33	1:1	619	150	64	300	14	128	60
16-200	40	1:1	425	200	46	400	18	172	148
20-120PW(T)	50	1:1	380	120	58	210	11	122	76
21-80pw(S)	55	1:1	296	80	69	120	9	79	35
21-150PW(SL)	55	1:1	326	150	46	260	14	118	121
24-100PW(T)	60	1:1	316	100	57	136	11	65	81
28-140PW(SL)	70	1:1	217	140	40	195	13	76	125
32-55PW(S)	81	1:1	257	55	67	103	6	67	28
32-64PW(S)	81	1:1	248	64	63	95	6	56	32
32-100PW(T)	81	1:1	212	100	45	165	8	73	75
36-90PW(T)	92	1:1	183	90	44	150	8	65	68
39-55PW(S)	100	1:1	177	55	56	88	6	55	30
40-80PW(T)	103	1:1	166	80	44	133	7	59	60
43-80PW(T)	110	1:1	149	80	41	130	7	53	64
47-45PW(S)	120	1:1	166	45*2	61	80	6	42	40
47-55PW(S)	120	1:1	152	55	51	88	6	48	34
48-70PW(T)	122	1:1	133	70	41	115	6	47	55
53-45PW(S)	135	1:1	143	45*2	57	79	7	41	46
53-55PW(S)	135	1:1	133	55	50	86	6	42	40
54-64PW(T)	137	1:1	115	64	39	100	5	39	51
54-70(PW)HD	137	1:1	109	70	35	116	6	40	62
61-64PW(T)	155	1:1	90	64	31	101	5	30	58
64-55PW(S)	160	1:1	98	55	38	98	5	36	48
64-64PW(T)	160	1:1	85	64	30	115	6	34	61
68-55PW(S)	175	1:1	85	55	34	85	4	28	48
68-64PW(T)	175	1:1	78	64	28	105	5	30	65
72-48PW(S)	182	1:1	90	48	36	78	5	33	39
72-55PW(T)	182	1:1	85	55	30	90	5	27	51
77-48PW(S)	195	1:1	77	48	35	80	4	28	42
77-55PW(T)	195	1:1	67	55	27	88	4	24	55
80-48PW(T)	200	1:1	72	48	33	74	4	25	56
90-48PW(T)	230	1:1	56	48	25	78	4	19	50
100-40PW(T)	255	1:1	58	40	33	63	3	21	37
110-40PW(HD)	280	1:1	48	40	27	64	3	17	40
120-31PW(S)	305	1:1	49	31	35	49	3	17	26
120-34PW(T)	305	1:1	45	34	30	55	3	16	35
120-40PW(HD)	305	1:1	37	40	20	63	3	13	44
130-34PW(T)	330	1:1	40	34	27	55	3	15	37
140-31PW(S)	355	1:1	36	31	26	48	2	12	30
140-34PW(T)	355	1:1	31	34	20	53	3	10	39
140-34TW(T)	355	1:1	33	34	21	56	3	12	41
150-31PW(S)	380	1:1	32	31	23	49	3	11	32
150-34PW(T)	380	1:1	23	34	13	55	3	6.5	42
165-34PW(S)	420	1:1	23	31	15	48	2	7	36
180-27PW(S)	460	1:1	23	27	16	43	2.5	7	31

Product Application

(4) Textile printing net

Polyester screen printing can transfer thick ink deposits and produce special effects, making it the best process for printing high-quality commercial clothing.

(5) CD/DVD printing grid

Polyester screen printing can provide a variety of ink transparency, ink flexibility and various decorative pattern options, which is the most important in terms of fast production cycle and not affecting the performance of the disc. Therefore, screen printing is the preferred printing process for CD/DVD.

(6) Glass printing screen

Pharmacy glassware printing

Home appliance printing.

Product Advantage

1 / High tension and low-Elongation;
2 / Less tension loss after high strength;
3 / Standard size and filtration value;
4 / (+-)2-6micorn thickness tollerance;
5 / Faster printing speed and finer printing effect
