HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
Product Details:
Payment & Shipping Terms:
|
Material: | 100% Polyester | Surface: | Smooth |
---|---|---|---|
Advantage: | High Wear Resistance | Color: | White And Blue |
Usage: | Dryer And Filter | Function: | Paper Mill Dryer Belt |
High Light: | acid resistance polyester mesh belt,alkali resistance polyester mesh belt,industry clean washing polyester mesh belt |

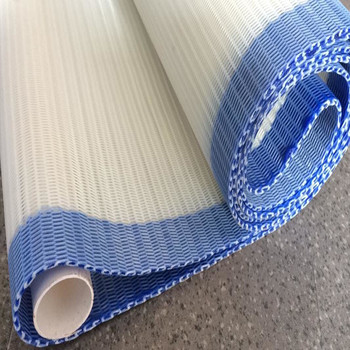

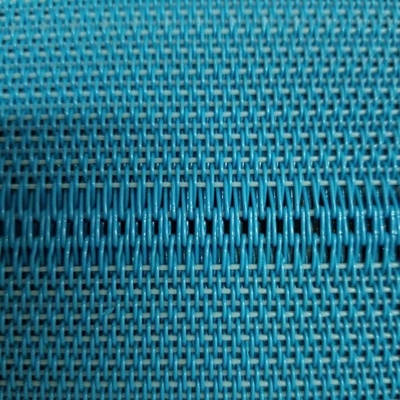

Acid And Alkali Resistance 16903 22903 Polyester Mesh Belt For Industry Clean Washing
Product Description
polyester mesh belt is suitable for high-pressure pressfilter washer, horizontal belt washer, pulp-liquor separator and netting belt coal-washer.
polyester mesh belt are extensively used for producing cardboard,kraft paper,corrugated paper,paper for train fare,single two-shed press-filter,instead of papermaking machine dry blanket,canvas,as well as apply to colliery,food and medicine as conveyor belts.
polyester mesh belt are made with special first quality yarns in 100%polyester,every spiral link dryer fabric is heat-set granting a high degree of stability and long running life.
strength, flat surface, good air permeability, stable property against heat and moisture, low thermal shrinking, less elongation at heat and a long lifespan.
Product Application
1. Separation in solid and liquid to equip with filter press
2. conveyor belts filtration machine
3. Filter Leaf ,
4. Horizontal Rotating Pan Filter ,Vacuum filter
5. in Chemical industry ,Fertilizer industry
6. Sugar making ,
7. food and beverage ,metallurgy
8. Building ,Waste water dealing ,and so on .
Mesh belts are mainly used in filtration or separation applications for municipal projects for example waste water treatment, and various sludge belt press liquid filtration applications. Our products are suitable for most mechanical dewatering cases of various materials.
Product Features
Has the acid and alkali resistance, wear resistance, high temperature resistant, long service life.
With smooth surface, the tensile strength, permeability is good.
High heat transfer efficiency, for the user to save energy.
Install easy to use, interface without stain, strength can reach the normal mesh products.
Heat-resistance,high temperature resistance(180 degree).
High dimensional and diagonal stability,good air ventilation.
Filled or unfilled to achieved differing filtration characteristics.
Super heat with resin sealed edges for lasting,no marking,economical solution
Can be repaired easily on site
Product Specification
Model |
Filament diameter (mm)
|
Density (root/cm)
|
Tensile strength
|
Weight
Kg/m2 |
Thickness mm
|
Air permeability
M3/m3h |
|||
Warp
|
Weft
|
Warp
|
Weft
|
Surface
|
Joint
|
||||
31505
|
0.4
|
0.5
|
33
|
9
|
1600
|
900
|
0.8
|
1.3
|
2976
|
26508
|
0.5
|
0.5
|
28
|
18.5
|
1600
|
900
|
1.2
|
1.5
|
2050
|
2470
|
0.5
|
0.7
|
24
|
9
|
1600
|
900
|
1.23
|
1.9
|
7520
|
22903
|
0.5
|
0.9
|
23
|
5..5
|
1600
|
900
|
1.4
|
1.9
|
8480
|
