HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
|
Product Details:
Payment & Shipping Terms:
|
Technique: | Woven | Application: | Screen |
---|---|---|---|
Type: | Wire Cloth | Material: | 316 |
Color: | Silver | Name: | Stainless Steel Woven Mesh |
Hole Shape: | Round | Mesh Count: | 1-400mesh |
High Light: | galvanized woven wire mesh,woven wire mesh sheets |
Super Precision 325 Mesh Stainless Steel Woven Wire Mesh
Descriptions of stainless steel filter screen
Stainless steel filter screen is usually also called ultra-thin silk cloth, which is a special kind of silk cloth used in the printing industry. It adopts plain weave or twill weave process.
The stainless steel filter screen requires square meshes, and the included angle of the two adjacent lines is 90 degrees, and the permeability is high. The mesh surface should be flat without joints, uniform mesh, high friction strength, small stretch recovery rate, acid and alkali resistance, and no change in strength due to the influence of ultraviolet rays.
Through the use of carefully selected special alloy raw materials and the use of the most advanced weaving technology, the structure of the stainless steel printing screen is particularly compact, while ensuring that the thickness of the screen is within the allowable tolerance range. The precision of the daughter is thus more suitable for high-density printing.
Features of stainless steel filter screen
1. High tension: The tension of stainless steel printing screen is much higher than that of ordinary polyester screen.
2. Ultra-precision: uniform wire diameter and aperture, extremely low difference.
3. Low elongation: Screen elongation is very small.
4. High flexibility: Stainless steel printing screen has high elasticity.
5. High corrosion resistance: It has excellent corrosion resistance, even exceeding polyester fiber.
6. Anti-static: Anti-static printing to ensure printing safety.
7. Good hot melt: stainless steel wire mesh special function, suitable for hot melt ink.
8. Good solvent resistance: Good solvent resistance and ensure its cleanliness and integrity.
Application
1. Stainless steel filter silk cloth is suitable for direct plate making, and the surface is curved substrates, such as: glass, ceramic, metal, plastic, rubber, printed circuits, etc.
2. It is especially suitable for use in harsh environments, multi-color overprinting, batch printing, tone printing, Suitable for precision printing.
Specifications
Specification |
Wire diameter |
Tension |
|||
mesh |
mesh/cm |
mm |
Newton / cm |
Newton / cm |
|
80 |
32 |
0.050 |
20-22 |
15-17 |
|
200 |
79 |
0.035 |
26-28 |
20-22 |
|
230 |
91 |
0.030 |
20-22 |
15-17 |
|
280 |
110 |
0.025 |
16-18 |
12-14 |
|
325 |
128 |
0.023 |
17-19 |
13-15 |
Specification |
Wire diameter |
Tension |
||
mesh/inch |
mesh/cm |
mm |
Newton / cm |
Newton / cm |
120 |
47 |
0.094 |
31-36 |
55-52 |
150 |
59 |
0.065 |
33-35 |
50-52 |
200 |
79 |
0.052 |
32-36 |
39-41 |
250 |
98 |
0.040 |
35-37 |
31-33 |
270 |
106 |
0.040 |
38-40 |
35-37 |
325 |
128 |
0.035 |
36-38 |
32-34 |
400 |
158 |
0.028 |
31-33 |
25-27 |
500 |
200 |
0.025 |
31-33 |
25-27 |

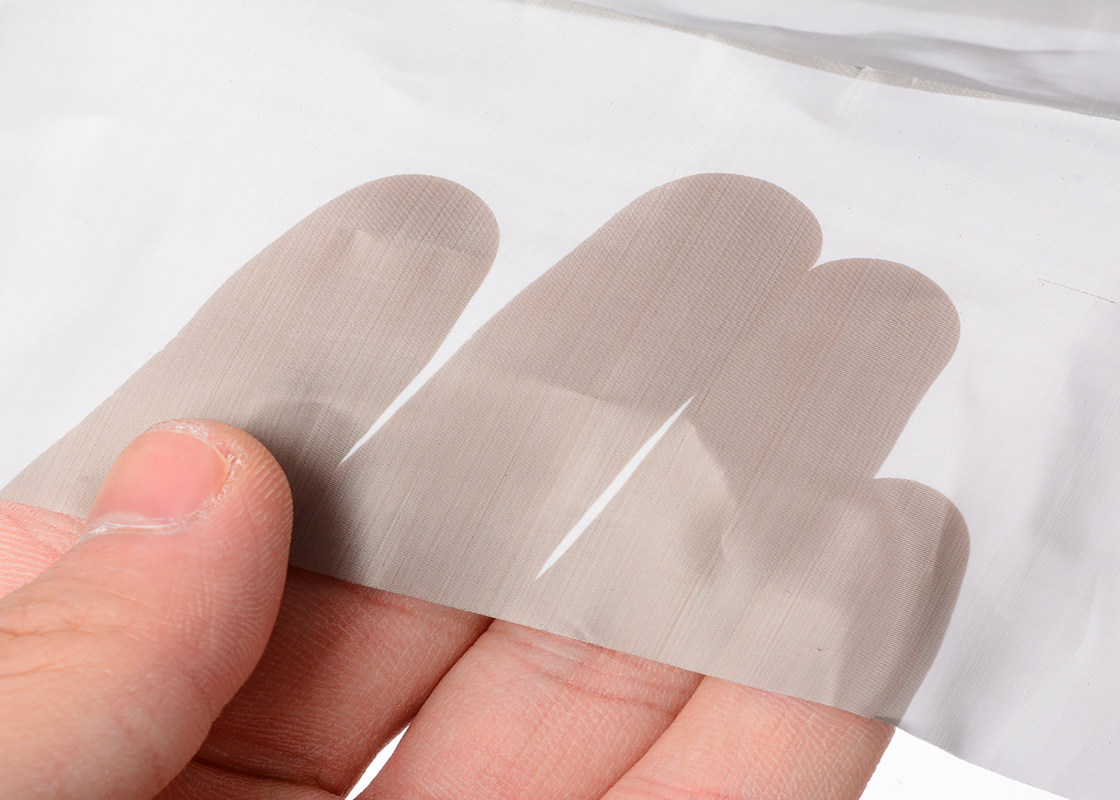

Detailed picture
