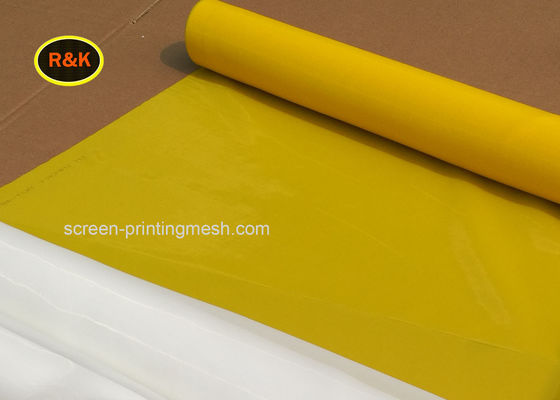

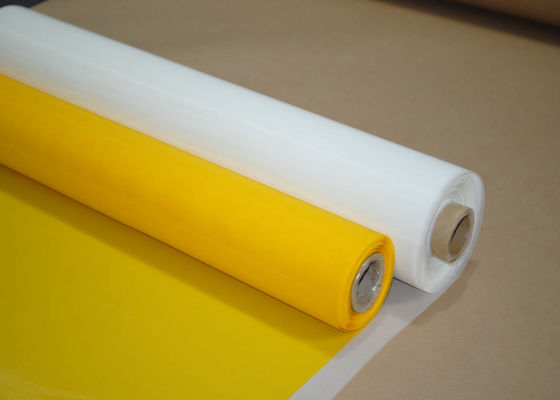

Yellow White High Tension Thermal Screen Printing Mesh Printing On Glass
Description For Thermal Screen Printing Mesh:
We are the manufacturer for this polyester mesh with more than 25 years, we use the NANTONG yarn to weave it, we have more than about 100sets machine to make. this mesh is widely used in CD/DVD Printing,ceramic decorative printing,textile printing,glass ,metal and so on.
60 mesh is usually used for printing smaller glitter and most shimmer inks.80 mesh is also used for printing shimmer inks and for laying down thick layers of ink for high-density printing. It also works well for printing foil adhesive.120 mesh is one of the most rifely mesh sizes in screen printing. It works great for printing white ink and other colored inks that have a thicker viscosity.155 mesh is great for general purpose textile printing with basic to semi-fine detail. It will hold a little finer detail than a 110 mesh while also working well with thinner inks.
| Material |
100% polyester ,monofilament yarn |
| Application |
Printing On Glass |
| Mesh count |
13T/30mesh/inch - 165T/420 mesh/inch |
| Roll width |
Max width 3.05meter |
| Certification |
ISO9001:2000,SGS,FDA,MSDS |
| Aperture size |
40-42micron |
Specification For Thermal Screen Printing Mesh:
Mesh Count
Diameter
(Mesh/inch μm) |
Mesh
Count
(Mesh
/Inch) |
Weave |
Aperture
(μm) |
Thread
Diameter
(μm) |
Opening
(%) |
Thickne
ss(μm)
|
Thickness
Tollerance
(+/- μm) |
Theoretical
lnk(cm3/m2) |
Weight
(g/m2) |
| 28-140PW(SL) |
70 |
1:1 |
217 |
140 |
40 |
195 |
13 |
76 |
125 |
| 32-55PW(S) |
81 |
1:1 |
257 |
55 |
67 |
103 |
6 |
67 |
28 |
| 32-64PW(S) |
81 |
1:1 |
248 |
64 |
63 |
95 |
6 |
56 |
32 |
| 32-100PW(T) |
81 |
1:1 |
212 |
100 |
45 |
165 |
8 |
73 |
75 |
| 36-90PW(T) |
92 |
1:1 |
183 |
90 |
44 |
150 |
8 |
65 |
68 |
| 39-55PW(S) |
100 |
1:1 |
177 |
55 |
56 |
88 |
6 |
55 |
30 |
| 40-80PW(T) |
103 |
1:1 |
166 |
80 |
44 |
133 |
7 |
59 |
60 |
| 43-80PW(T) |
110 |
1:1 |
149 |
80 |
41 |
130 |
7 |
53 |
64 |
| 47-45PW(S) |
120 |
1:1 |
166 |
45*2 |
61 |
80 |
6 |
42 |
40 |
| 47-55PW(S) |
120 |
1:1 |
152 |
55 |
51 |
88 |
6 |
48 |
34 |
| 48-70PW(T) |
122 |
1:1 |
133 |
70 |
41 |
115 |
6 |
47 |
55 |
| 53-45PW(S) |
135 |
1:1 |
143 |
45*2 |
57 |
79 |
7 |
41 |
46 |
| 53-55PW(S) |
135 |
1:1 |
133 |
55 |
50 |
86 |
6 |
42 |
40 |
| 54-64PW(T) |
137 |
1:1 |
115 |
64 |
39 |
100 |
5 |
39 |
51 |
| 54-70(PW)HD |
137 |
1:1 |
109 |
70 |
35 |
116 |
6 |
40 |
62 |
| 61-64PW(T) |
155 |
1:1 |
90 |
64 |
31 |
101 |
5 |
30 |
58 |
| 64-55PW(S) |
160 |
1:1 |
98 |
55 |
38 |
98 |
5 |
36 |
48 |
| 64-64PW(T) |
160 |
1:1 |
85 |
64 |
30 |
115 |
6 |
34 |
61 |
| 68-55PW(S) |
175 |
1:1 |
85 |
55 |
34 |
85 |
4 |
28 |
48 |
| 68-64PW(T) |
175 |
1:1 |
78 |
64 |
28 |
105 |
5 |
30 |
65 |
| 72-48PW(S) |
182 |
1:1 |
90 |
48 |
36 |
78 |
5 |
33 |
39 |
| 72-55PW(T) |
182 |
1:1 |
85 |
55 |
30 |
90 |
5 |
27 |
51 |
| 77-48PW(S) |
195 |
1:1 |
77 |
48 |
35 |
80 |
4 |
28 |
42 |
| 77-55PW(T) |
195 |
1:1 |
67 |
55 |
27 |
88 |
4 |
24 |
55 |
| 80-48PW(T) |
200 |
1:1 |
72 |
48 |
33 |
74 |
4 |
25 |
56 |
| 90-48PW(T) |
230 |
1:1 |
56 |
48 |
25 |
78 |
4 |
19 |
50 |
| 100-40PW(T) |
255 |
1:1 |
58 |
40 |
33 |
63 |
3 |
21 |
37 |
| 110-40PW(HD) |
280 |
1:1 |
48 |
40 |
27 |
64 |
3 |
17 |
40 |
| 120-31PW(S) |
305 |
1:1 |
49 |
31 |
35 |
49 |
3 |
17 |
26 |
| 120-34PW(T) |
305 |
1:1 |
45 |
34 |
30 |
55 |
3 |
16 |
35 |
| 120-40PW(HD) |
305 |
1:1 |
37 |
40 |
20 |
63 |
3 |
13 |
44 |
| 130-34PW(T) |
330 |
1:1 |
40 |
34 |
27 |
55 |
3 |
15 |
37 |
Features For Thermal Screen Printing Mesh:
- Abrasion;
- No surface treatment;
- High tension;
- Low elongation;
- High tension treshold and braking point;
- Improved registration due to stable tension;
Application For Thermal Screen Printing Mesh:
1. T-shirt /garment Commercial T-shirts/garment, advertising, fashion and sports clothing,
Flatbed textile Knitted fabric, blanket, chiffon silk even denim
High-end textile Full saturate front and back of the fabrics
Recommend mesh 10T-120T
2. Pharmacy appliance, Home appliance, Automotive glass, Glass container, etc.
Recommend mesh 39T-165T
3. Domestic ceramic, Indirect Ceramic, Ceramic tiles, etc.
Recommend mesh 39T-165T
4. Stickers, labels, Small/Large Format UV Graphics, Package graphics, plastics, etc.
Recommend mesh 10T-165T
5. Plastic package, plastic package, plastic bottle, advertising, plastic decoration, etc.
Recommend mesh 36T-165T
6. CD/DVD, PCB membrane switches/touch screen, PV and other high-grade electronic products
