Multilayer Food Grade 316 6mm Stainless Steel Filter Mesh

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Multilayer Food Grade 316 6mm Stainless Steel Filter Mesh

Product Details:
Place of Origin: Hebei,China
Brand Name: R&K
Certification: ISO9001:2008,SGS,FDA
Model Number: R&K-SS
Payment & Shipping Terms:
Minimum Order Quantity: 1m
Price: negotiation

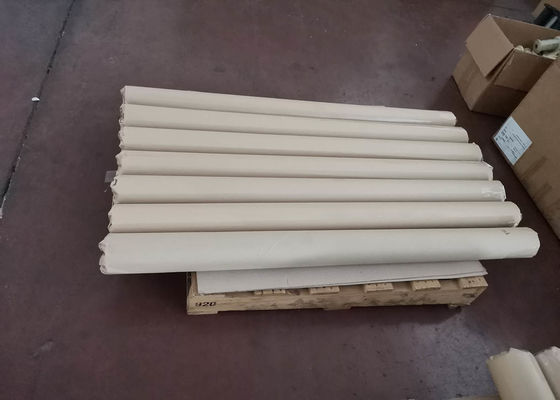

Packaging Details: Packing by rolls or folded then plastic bags inside carton or other packages according to the customers' demand.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union,Paypal,Trade assurance.Credit card.
Supply Ability: 2000 square meter per month
Detailed Product Description
Material: 316 Weave Type: Plain/Twill/Dutch
Hole Size: As Requirements Advantage: Food Grade
Color: Silver Application: Filtration
High Light:

ss316 filter mesh

,

6mm Stainless Steel Filter Mesh

,

multilayer Stainless Steel Filter Mesh

Multilayer Food Grade 316 6mm Stainless Steel Filter Mesh​





Intructions of stainless steel filters:



Our products can be customized, and we have more than 100 customized products for customers.
We provide you with a low MOQ, 10 of which we can make for you.
We have high-quality raw materials, and our machines are imported from Germany, Switzerland and Japan.
Our prices are affordable, and the price of stainless steel filters can be as low as $0.5 per piece.
Our customers are all over the world, including the United States, Japan, South Korea, Canada, Australia and other countries.
We have more than 20 years of experience.



Material: stainless steel woven mesh, copper mesh, mat mesh, stainless steel sintered mesh, stainless steel square mesh, metal plate mesh, expanded metal mesh, perforated mesh and other metal meshes.
Stainless steel edging mesh
Hemming material: stainless steel plate.
Product shape: rectangle, square, circle, oval, ring, rectangle, hat, waist, special shape
Stainless steel spot welded mesh
Material: stainless steel woven mesh, copper mesh, mat-type mesh, stainless steel sintered mesh, stainless steel square mesh, metal plate mesh, expanded metal mesh, perforated mesh and other metal meshes.
Product structure: single-layer, double-layer, three-layer, four-layer, five-layer, multi-layer.
Processing size: 6 mm to 650 mm.
Product classification: single-layer filter mesh, multi-layer spot welded filter mesh, edging filter mesh, combined filter mesh.
Stainless steel mesh tube
Material: stainless steel woven mesh, stainless steel square mesh.


Features of the filters



It is made of single-layer or multi-layer metal mesh. The number of layers and the number of meshes constituting the wire mesh are determined according to different use conditions and purposes. High concentricity,Withstand high pressure, good straightness, stainless steel material, without any burrs, long service life.



Specification of the stainless steel wire mesh:





Mesh/Inch Wire Diameter Aperture Open Area Weight
(kg/Square
meter)
Inch MM Inch MM
1*1 0.08 2.03 0.92 23.37 92 2
2*2 0.063 1.6 0.437 11.1 87.4 2.5
3*3 0.054 1.37 0.279 7.09 83.8 2.7
4*4 0.047 1.19 0.203 5.16 81.2 2.7
5*5 0.041 1.04 0.159 4.04 79.5 2.6
10*10 0.025 0.64 0.075 1.91 74.9 2
12*12 0.02 0.508 0.063 1.6 75.9 1.5
14*14 0.02 0.508 0.051 1.3 71.9 1.8
16*16 0.018 0.457 0.445 1.13 71.2 1.6
18*18 0.017 0.432 0.386 0.98 69.4 1.6
20*20 0.02 0.24 0.03 0.76 76 0.56
20*20 0.016 0.33 0.034 0.86 72.2 1.1
30*30 0.12 0.305 0.213 0.54 63.9 1.4
30*30 0.0094 0.24 0.243 0.62 72.1 0.84
40*40 0.01 0.254 0.015 0.38 59.9 1.3
50*50 0.0055 0.14 0.0145 0.368 72.4 0.48
60*60 0.0047 0.12 0.012 0.303 71.6 0.42
60*60 0.0059 0.15 0.0107 0.273 64.5 0.65

Multilayer Food Grade 316 6mm Stainless Steel Filter Mesh 0
