Fine Stainless Steel Wire Mesh Plain Woven Filter Wire Mesh 500 Micron Mesh

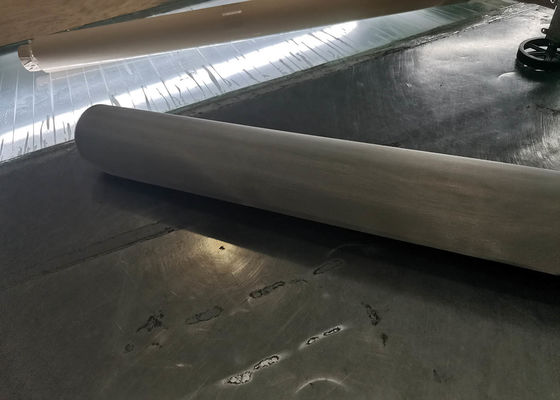

Large Image : Fine Stainless Steel Wire Mesh Plain Woven Filter Wire Mesh 500 Micron Mesh

Product Details:

Place of Origin:	Hebei
Brand Name:	R&K
Certification:	SGS
Model Number:	SS-20

Payment & Shipping Terms:

Minimum Order Quantity:	1 squaremeter
Price:	Negotiate
Packaging Details:	inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet
Delivery Time:	5-8 workday
Payment Terms:	L/C, D/P, T/T, Western Union，PayPal
Supply Ability:	1000 squaremeter per week

Contact Now

Detailed Product Description

Material:	304 Material	Usage:	Filter
Weave Style:	Plain Weave	Aperture:	0.1mm
Color:	Silver	Advantage:	High Strength
Type:	Wire Cloth	Hole Shape:	Square Hole
High Light:	galvanized woven wire mesh , woven wire mesh sheets

Fine Stainless Steel Wire Mesh Plain Woven Filter Wire Mesh 500 Micron Mesh

500 micron stainless steel wire mesh is widely used in chemical, petroleum, papermaking, environmental protection, mining, aerospace, electronics, metallurgy and other industries.

Material: 316, 316l stainless steel wire

feature

1. Excellent acid, alkali, heat and corrosion resistance
2. High strength, long service life, easy to use
3. Acid, alkali, temperature, abrasion resistance, etc.

Plain weave description:

Plain weave wire cloth is used for most of the wire mesh weaving. Each warp alternates above and below each weft, and vice versa.

The warp and weft threads usually have the same diameter.

Plain weave is used in most commercial applications and filtration that requires high flow rates.

Fine Stainless Steel Wire Mesh Plain Woven Filter Wire Mesh 500 Micron Mesh 0

Twill weave description:

For heavier requirements, twill weave is recommended. The weft thread passes above and below the two warp threads, ensuring a stronger weave because it produces a stronger and more durable wire mesh. The warp and weft have the same diameter to form a tight diagonal pattern. This type of pattern is primarily used for filtration.

Fine Stainless Steel Wire Mesh Plain Woven Filter Wire Mesh 500 Micron Mesh 1

Package of the stainless steel wire mesh

Fine Stainless Steel Wire Mesh Plain Woven Filter Wire Mesh 500 Micron Mesh 2

Parameter of stainless steel mesh

mesh	Wire Diameter		Aperture		Open Area	Weight
	Wire Diameter		Aperture		Open Area	Weight
	Inch	MM	Inch	MM	(%)	(kg /Square meter)
1x1	0.08	2.03	0.92	23.37	92	2
2X2	0.063	1.6	0.437	11.1	87.4	2.5
3X3	0.054	1.37	0.279	7.09	83.8	2.7
4X4	0.047	1.19	0.203	5.16	81.2	2.7
5X5	0.041	1.04	0.159	4.04	79.5	2.6
8X8	0.02	0.5	0.105	2.675	71	1
9X9	0.02	0.5	0.091	2.32	67.7	1.1
10X10	0.025	0.64	0.075	1.91	74.9	2
12X12	0.02	0.508	0.063	1.6	75.9	1.5
12X12	0.022	0.55	0.062	1.567	54.8	1.815
14X14	0.02	0.508	0.051	1.3	71.9	1.8
14X14	0.0177	0.45	0.054	1.36	75.14	1.417
16X16	0.016	0.4	0.047	1.188	55	1.28
16X16	0.018	0.457	0.0445	1.13	71.2	1.6
18X18	0.017	0.432	0.0386	0.98	69.4	1.6
20X20	0.02	0.24	0.03	0.76	76	0.56
20X20	0.016	0.33	0.034	0.86	72.2	1.1
20X20	0.014	0.35	0.036	0.92	52.5	1.225
20X20	0.016	0.4	0.034	0.87	46.9	1.6
20X20	0.0177	0.45	0.0322	0.82	41.7	2.025
22X22	0.012	0.3	0.034	0.854	54.76	0.99
24X24	0.014	0.35	0.028	0.708	44.77	1.47
30X30	0.014	0.35	0.0195	0.5	34.6	1.84
30X30	0.012	0.305	0.0213	0.54	63.9	1.4
30X30	0.0094	0.24	0.0243	0.62	72.1	0.84
35X35	0.0079	0.2	0.021	0.526	52.5	0.7
35X35	0.0098	0.25	0.0187	0.475	42.92	1.09
40X40	0.0079	0.2	0.017	0.435	46.9	0.8
40X40	0.01	0.254	0.015	0.38	59.9	1.3
40X40	0.014	0.35	0.011	0.285	20.14	2.45
50X50	0.0055	0.14	0.0145	0.368	72.4	0.48
50X50	0.0079	0.2	0.012	0.308	36.76	1
60X60	0.0047	0.12	0.012	0.303	71.6	0.42
60X60	0.0059	0.15	0.0107	0.273	64.5	0.65
60X60	0.007	0.18	0.0096	0.243	33	0.972
80X80	0.047	0.12	0.0078	0.1975	38.7	0.576
80X80	0.0055	0.14	0.0069	0.117	45.5	0.76
100X100	0.0039	0.1	0.006	0.154	36.76	0.5
100X100	0.0045	0.114	0.0055	0.14	55.1	0.59
100X100	0.004	0.102	0.006	0.152	59.8	0.49
120X120	0.0028	0.07	0.0057	0.147	67.7	0.29
120X120	0.003	0.08	0.0052	0.132	38.7	0.384
150X150	0.0024	0.06	0.0043	0.11	64.7	0.26
150X150	0.0028	0.07	0.0039	0.1	58.8	0.38
165X165	0.0019	0.05	0.0041	0.104	67.5	0.2
180X180	0.0019	0.05	0.0035	0.091	64.5	0.22
180X180	0.0024	0.06	0.0031	0.081	57.4	0.32
200X200	0.0019	0.05	0.003	0.077	60.6	0.24
200X200	0.0024	0.06	0.0026	0.067	52.7	0.35
250X250	0.0016	0.04	0.0024	0.0616	60.6	0.2
270X270	0.0016	0.04	0.0021	0.054	57.4	0.21
300X300	0.0016	0.04	0.0018	0.045	53.5	0.23
325X325	0.0014	0.035	0.0017	0.0432	55.3	0.2
400X400	0.0012	0.03	0.0013	0.0335	52.7	0.18
500X500	0.0009	0.025	0.001	0.0258	50.7	0.15
500X500	0.0012	0.03	0.0008	0.0208	16.76	0.225
635X635	0.0007	0.018	0.0008	0.022	55	0.1
