100 400 1000 Micron Ultra Fine AISI 304 Stainless Steel Woven Wire Mesh

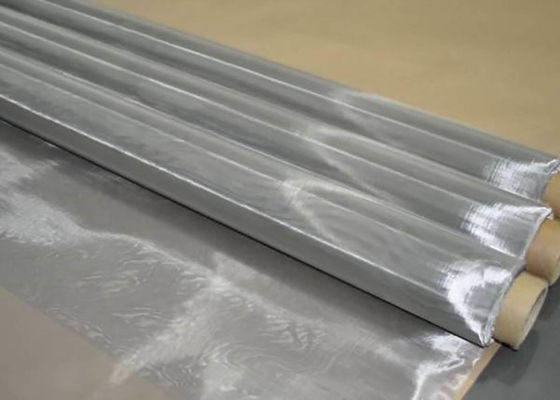

Large Image : 100 400 1000 Micron Ultra Fine AISI 304 Stainless Steel Woven Wire Mesh

Product Details:

Place of Origin:	Hebei
Brand Name:	R&K
Certification:	SGS
Model Number:	SS-27

Payment & Shipping Terms:

Minimum Order Quantity:	1 squaremeter
Price:	Negotiate
Packaging Details:	inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet
Delivery Time:	5-8 workday
Payment Terms:	L/C, D/P, T/T, Western Union，PayPal
Supply Ability:	1000 squaremeter per week

Contact Now

Detailed Product Description

Material:	304 Stainless Steel	Usage:	Liquid Filter / Gas Filter
Weave Style:	Plain Weave	Aperture:	0.1mm
Color:	Silver	Advantage:	Superior Wire
Type:	Wire Cloth	Hole Shape:	Square Hole
High Light:	galvanized woven wire mesh , woven wire cloth mesh

100 400 1000 Micron Ultra Fine AISI 304 Stainless Steel Woven Wire Mesh

Micron is a metric that refers to the size of the holes on the braided wire. It is connected to a millimeter square hole. For example, a grid of 1000 microns means 1 mm per hole. 400 micron weave means 0.400 mm per hole. A 100 micron weave means 0.100 mm per hole. Therefore, the smaller the number, the smaller the hole.

Therefore, we decided to shoot stainless steel nets of different micron sizes so that you can feel something.

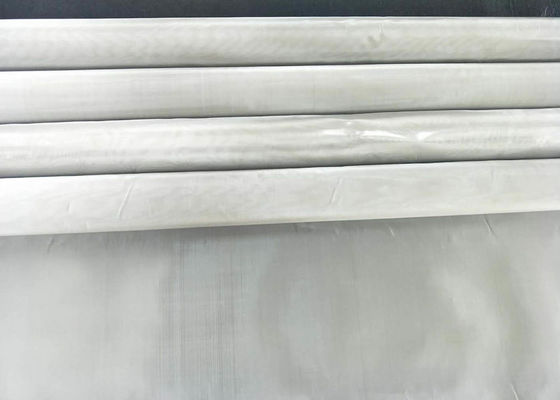

100 400 1000 Micron Ultra Fine AISI 304 Stainless Steel Woven Wire Mesh 0

(Plain weave ) (Twill weave )

Package of the stainless steel wire mesh

A roll wrapped in kraft paper and then placed in a carton or tray;
Sheets are in a wooden box or tray.

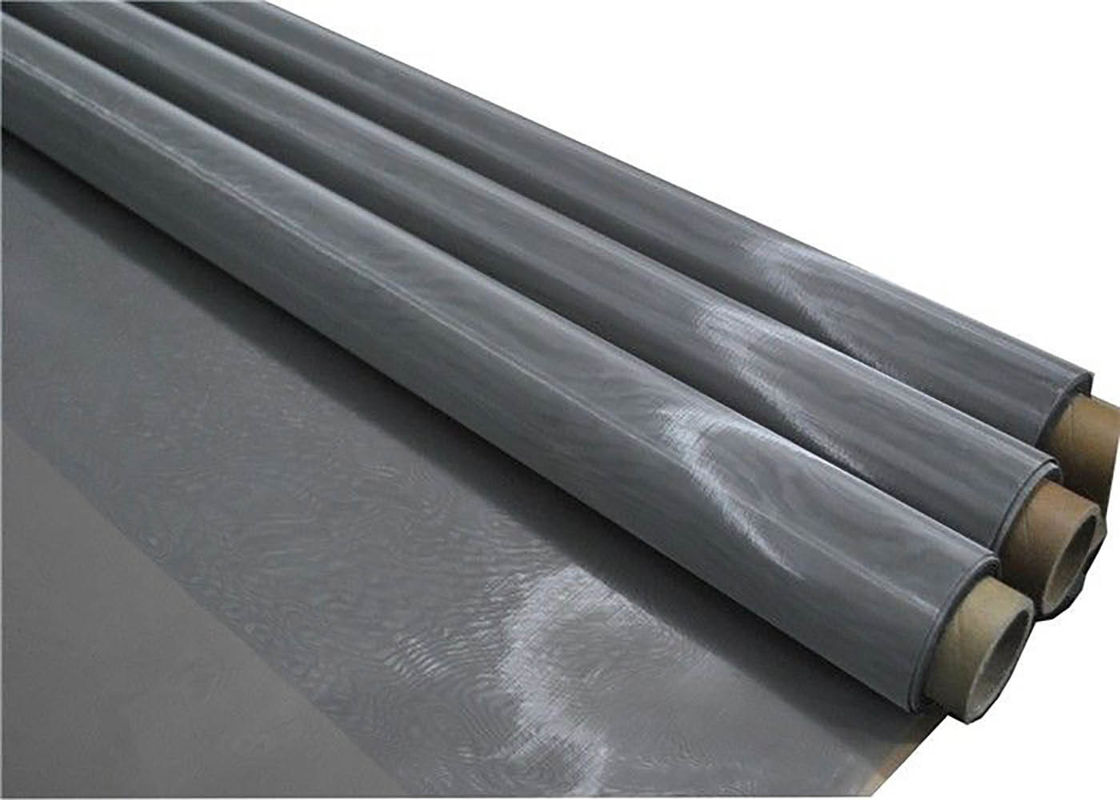

100 400 1000 Micron Ultra Fine AISI 304 Stainless Steel Woven Wire Mesh 2

Parameter of stainless steel mesh

mesh	Wire Diameter		Aperture		Open Area	Weight
	Wire Diameter		Aperture		Open Area	Weight
	Inch	MM	Inch	MM	(%)	(kg /Square meter)
1x1	0.08	2.03	0.92	23.37	92	2
2X2	0.063	1.6	0.437	11.1	87.4	2.5
3X3	0.054	1.37	0.279	7.09	83.8	2.7
4X4	0.047	1.19	0.203	5.16	81.2	2.7
5X5	0.041	1.04	0.159	4.04	79.5	2.6
8X8	0.02	0.5	0.105	2.675	71	1
9X9	0.02	0.5	0.091	2.32	67.7	1.1
10X10	0.025	0.64	0.075	1.91	74.9	2
12X12	0.02	0.508	0.063	1.6	75.9	1.5
12X12	0.022	0.55	0.062	1.567	54.8	1.815
14X14	0.02	0.508	0.051	1.3	71.9	1.8
14X14	0.0177	0.45	0.054	1.36	75.14	1.417
16X16	0.016	0.4	0.047	1.188	55	1.28
16X16	0.018	0.457	0.0445	1.13	71.2	1.6
18X18	0.017	0.432	0.0386	0.98	69.4	1.6
20X20	0.02	0.24	0.03	0.76	76	0.56
20X20	0.016	0.33	0.034	0.86	72.2	1.1
20X20	0.014	0.35	0.036	0.92	52.5	1.225
20X20	0.016	0.4	0.034	0.87	46.9	1.6
20X20	0.0177	0.45	0.0322	0.82	41.7	2.025
22X22	0.012	0.3	0.034	0.854	54.76	0.99
24X24	0.014	0.35	0.028	0.708	44.77	1.47
30X30	0.014	0.35	0.0195	0.5	34.6	1.84
30X30	0.012	0.305	0.0213	0.54	63.9	1.4
30X30	0.0094	0.24	0.0243	0.62	72.1	0.84
35X35	0.0079	0.2	0.021	0.526	52.5	0.7
35X35	0.0098	0.25	0.0187	0.475	42.92	1.09
40X40	0.0079	0.2	0.017	0.435	46.9	0.8
40X40	0.01	0.254	0.015	0.38	59.9	1.3
40X40	0.014	0.35	0.011	0.285	20.14	2.45
50X50	0.0055	0.14	0.0145	0.368	72.4	0.48
50X50	0.0079	0.2	0.012	0.308	36.76	1
60X60	0.0047	0.12	0.012	0.303	71.6	0.42
60X60	0.0059	0.15	0.0107	0.273	64.5	0.65
60X60	0.007	0.18	0.0096	0.243	33	0.972
80X80	0.047	0.12	0.0078	0.1975	38.7	0.576
80X80	0.0055	0.14	0.0069	0.117	45.5	0.76
100X100	0.0039	0.1	0.006	0.154	36.76	0.5
100X100	0.0045	0.114	0.0055	0.14	55.1	0.59
100X100	0.004	0.102	0.006	0.152	59.8	0.49
120X120	0.0028	0.07	0.0057	0.147	67.7	0.29
120X120	0.003	0.08	0.0052	0.132	38.7	0.384
150X150	0.0024	0.06	0.0043	0.11	64.7	0.26
150X150	0.0028	0.07	0.0039	0.1	58.8	0.38
165X165	0.0019	0.05	0.0041	0.104	67.5	0.2
180X180	0.0019	0.05	0.0035	0.091	64.5	0.22
180X180	0.0024	0.06	0.0031	0.081	57.4	0.32
200X200	0.0019	0.05	0.003	0.077	60.6	0.24
200X200	0.0024	0.06	0.0026	0.067	52.7	0.35
250X250	0.0016	0.04	0.0024	0.0616	60.6	0.2
270X270	0.0016	0.04	0.0021	0.054	57.4	0.21
300X300	0.0016	0.04	0.0018	0.045	53.5	0.23
325X325	0.0014	0.035	0.0017	0.0432	55.3	0.2
400X400	0.0012	0.03	0.0013	0.0335	52.7	0.18
500X500	0.0009	0.025	0.001	0.0258	50.7	0.15
500X500	0.0012	0.03	0.0008	0.0208	16.76	0.225
635X635	0.0007	0.018	0.0008	0.022	55	0.1
