High Tension 4 Nickels 0.06mm Stainless Steel Woven Wire Mesh For Filter Oil

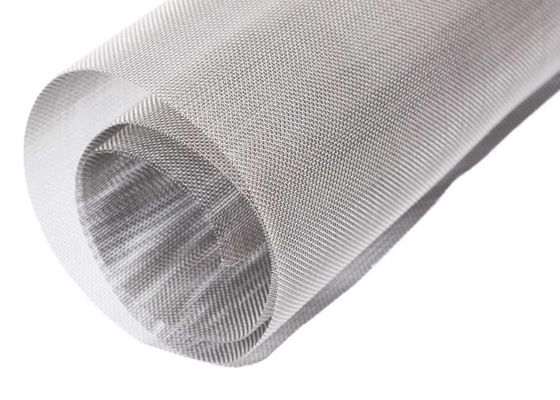

Large Image : High Tension 4 Nickels 0.06mm Stainless Steel Woven Wire Mesh For Filter Oil

Product Details:

Place of Origin:	Hebei,China
Brand Name:	R&K
Certification:	SGS
Model Number:	SS-01

Payment & Shipping Terms:

Minimum Order Quantity:	1 squaremeter
Price:	Negotiate
Packaging Details:	Wraping with water-proof kraft paper.Then use the plastic cloth or air cushion film to wrap put on the wooden pallet or put in wooden cases(with plastic cloth).
Delivery Time:	5-8 workdats
Payment Terms:	L/C, D/P, T/T, Western Union,Paypal
Supply Ability:	1000 squaremeters peer week

Contact Now

Detailed Product Description

Material:	304 /316 Stainless Steel	Usage:	Filter
Wire Diamter:	0.06	Product Name:	Stainless Steel Wire Mesh For Filter Oil
Color:	Silver	Mesh:	300 Mesh
Mesh Count:	2-525 Mesh
High Light:	0.06mm Stainless Steel Woven Wire Mesh , micron Stainless Steel Woven Wire Mesh , micron stainless steel wire mesh

High Tension 100 Mesh 304 Materail With 4 Nickels For Filter Oil

Description of stainless steel wire mesh

Micron stainless steel wire mesh is a surface filter type medium. It is made by weaving a specific metal wire into a predetermined pattern to form holes of different shapes and sizes. Plain weave, twill square, plain Dutch and twill Dutch are common weave patterns.

The multi-layer micron metal mesh is formed by sintering two or more layers (2-12 layers) of stainless steel wire mesh, which is then compressed and sintered together in a vacuum. Its micron grade ranges from 0.5 microns to 300 microns.

According to the material, stainless steel mesh can be divided into: SUS302, SUS304, SUS316, SUS304L, SUS316L, SUS310, SUS310s, SUS430 and other stainless steel grades. 304 and 316 and the most popular metal materials are used for weaving and processing.

Weaving method: plain weave, twill, Netherlands

Features: Stainless steel mesh screens 304 and 316 have the characteristics of acid resistance, alkali resistance, heat resistance and wear resistance.

Uses: Used as a filter cloth screen or processed into a filter disc for mining, petroleum, chemical, food, pharmaceutical, machinery manufacturing, etc.

Parameter of stainless steel wire mesh

Mest count	plain weave can be woven from 1- 400 mesh twill weave can be woven from 2- 635 mesh dutch wevae can be woven up to 500*3500 mesh
Hole shape	square hole
Wire diameter	0.018-2.03mm
Stock size	130m/roll, 1.2230m/roll, 1.5*30m/roll or customized.
Customzied	Other sizes can be customzied as per your requiremnts
Sample	A4 size sample can be provided.
Quality Reports	PMI testing video & reports will be provided, to accurance 100% good quality...
