Product Details:
Payment & Shipping Terms:
|
Material: | 316 Stainless Steel | Weave Style: | Plain Weave Dutch Mesh, Twill Weave Dutch Mesh |
---|---|---|---|
Width: | 1m, 1.2m, 1.5m, Or As Requirement | Length: | 30m Or As Requirement |
Diameter: | 0.9*0.71- 0.025*0.015 | Usage: | Fuel Filter |
High Light: | barbecue wire mesh,decorative metal screen mesh |

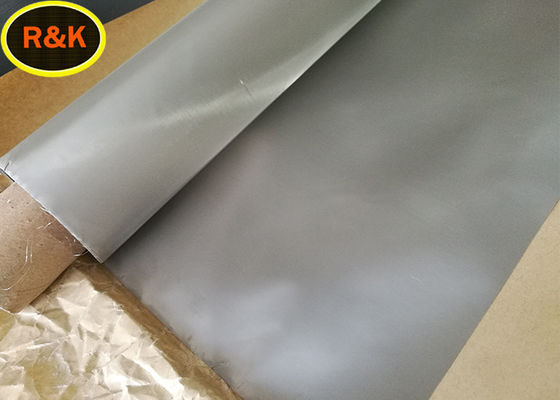

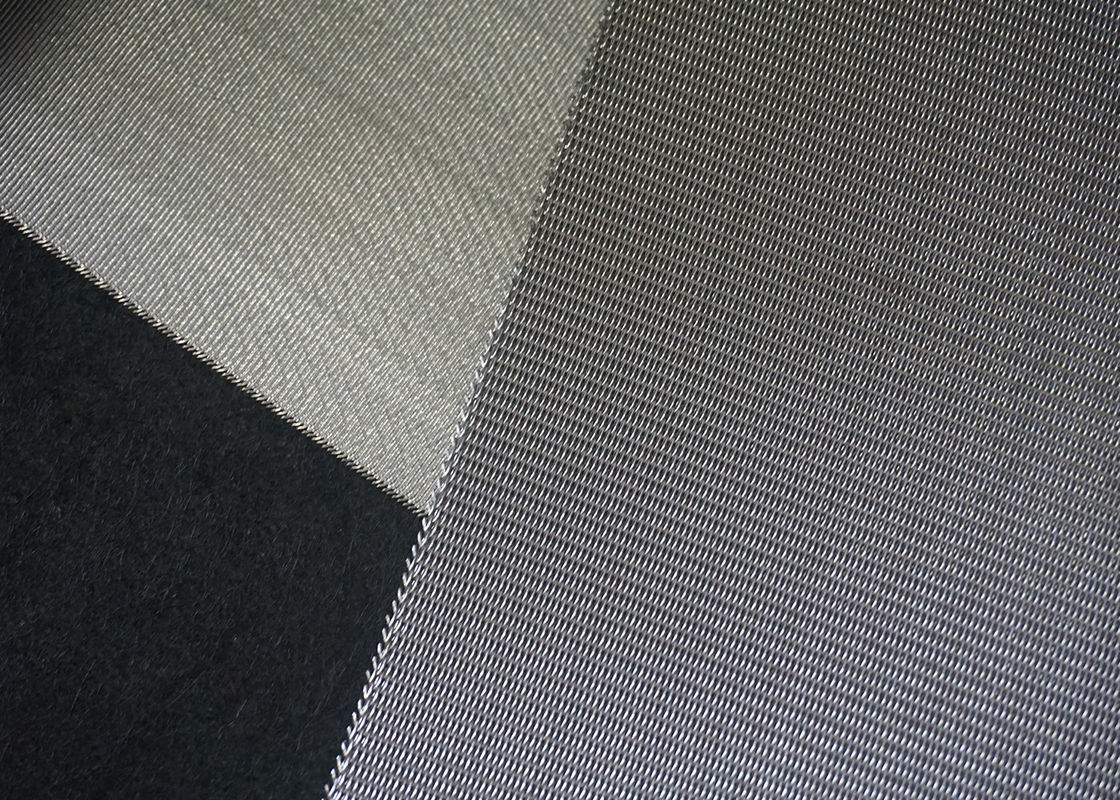

Stainless steel Dutch wire mesh 304 plain weave Duthc mesh for chemical industry
Product description
The type of net is called the mat type network because his latitude and longitude wire diameter is different and the number of meshes is different. Reasonably match the silk and mesh to achieve the filtration density that can not be achieved by the square mesh. Therefore, the mat type net is a fine-grained dense mesh, but generally the warp diameter is larger than the weft diameter. The contrast weave is called contrast because the weft is much thicker than the warp.
Product Application
It is used in precision pressure filters, fuel filters and vacuum filters for aerospace, petroleum, chemical, chemical fiber, rubber, tire manufacturing, metallurgy, medicine, food and other industries.
Product Feature
The mat network has many advantages in the control of ink flow. The same size of the mat type mesh is better for better control of ink precipitation, and it will also effectively avoid dot gain in the printing process, because even at the dot coverage rate. In higher areas, the overprinting rate of such outlets is still much lower than other outlets.
Another advantage of mat-type dots in screen printing is that all the dots are arranged next to each other instead of being stacked on top of each other as in the traditional mesh type. The reduction in stacking dots means that the lack of ink caused by the pressure at the top of the dots during the printing process is also alleviated.
Product parameters
plain weave Dutch mesh |
||||
Number |
Mesh(warpxweft) |
Wire diameter (warpxweft) |
Aperture (um) |
Weight (kg/m2) |
32# |
8 x 62 |
0.63mm x 0.45mm |
300 |
5.42 |
40# |
10 x 79 |
0.50mm x 0.355mm |
250 |
3.16 |
48# |
12 x 64 |
0.58mm x 0.40mm |
280 |
2.9 |
55# |
14 x 88 |
0.40mm x 0.30mm |
180 |
2.54 |
76# |
19 x 140 |
0.315mm x 0.20mm |
140 |
1.88 |
80# |
20 x 300 |
0.35mm x 0.20mm |
- |
3.6 |
95# |
24 x 110 |
0.355mm x 0.25mm |
120 |
2.45 |
100# |
25 x 140 |
0.28mm x 0.20mm |
100 |
1.95 |
120# |
30 x 150 |
0.25mm x 0.18mm |
80 |
1.68 |
140# |
35 x 175 |
0.224mm x 0.16mm |
71 |
1.52 |
160# |
40 x 200 |
0.20mm x 0.14mm |
60 |
1.40 |
180# |
45 x 250 |
0.16mm x 0.112mm |
56 |
1.09 |
200# |
50 x 250 |
0.14mm x 0.11mm |
53 |
1.04 |
220# |
55.5 x 280 |
0.14mm x 0.10mm |
50 |
0.92 |
240# |
65 x 330 |
0.11mm x 0.08mm |
36 |
0.71 |
280#(1) |
70 x 350 |
0.11mm x 0.08mm |
35 |
0.72 |
280#(2) |
70 x 385 |
0.11mm x 0.07mm |
32 |
0.75 |
300# |
78 x 700 |
0.11mm x 0.08mm |
30 |
1.39 |
315#(1) |
80 x 400 |
0.10mm x 0.065mm |
40 |
0.62 |
315#(2) |
80 x 600 |
0.10mm x 0.06mm |
- |
0.74 |
315#(3) |
80 x 800 |
0.15mm x 0.04mm |
- |
0.77 |
320# |
81 x 780 |
0.10mm x 0.07mm |
30 |
1.22 |
354# |
90 x 550 |
0.12mm x 0.05 |
- |
0.667 |
Width:1m-2m |
