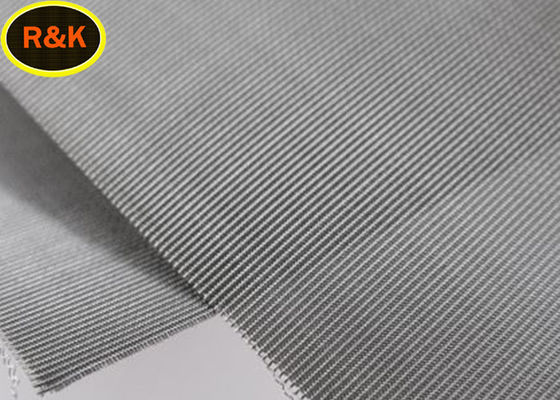

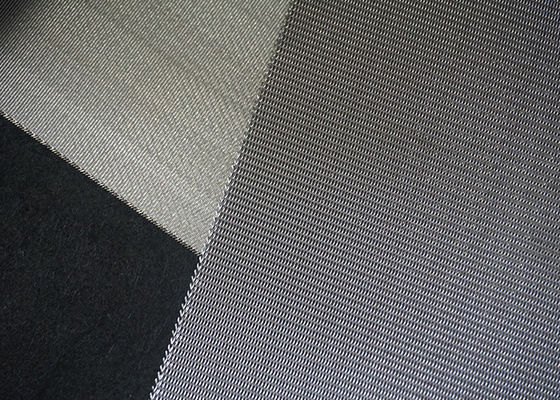

Ultrafine Dutch Woven Acid Resistant 304 Stainless Steel Wire Mesh For Filtering

Large Image : Ultrafine Dutch Woven Acid Resistant 304 Stainless Steel Wire Mesh For Filtering

Product Details:

Place of Origin:	Hebei,China
Brand Name:	R&K
Certification:	ISO
Model Number:	Dutch-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 square meter
Price:	Negotiate
Packaging Details:	Inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union，PayPal
Supply Ability:	1000 squaremeter per week

Contact Now

Detailed Product Description

Material:	Stainless Steel Woven Mesh	Type:	Weave Wire Mesh
Hole Shape:	Square Shape	Application:	Screen
Technique:	Woven	Feature:	Acid Resistant
Product Name:	Dutch Mesh
High Light:	ultrafine 304 stainless steel wire mesh , ultrafine dutch woven wire mesh , ISO 304 stainless steel wire mesh

Ultra fine dutch weaving stainless steel wire mesh factory for filtering

Description

Stainless steel Dutch woven mesh material is divided 304 , 304L, 316 and 316L. Stainless steel has good wear resistance, heat resistance, acid resistance and corrosion resistance. The filter is also available in brass, mild steel, nickel, steel or other metallic materials and is also available upon request.

Feature

1. Trouble-free processing performance.

2. Easy to clean and has excellent durability.

3. In addition to excellent mechanical strength, it has higher speed stability than any other material.

4. Has extremely high physical and chemical resistance.

Specification

Plain weave Dutch mesh
Number	Mesh(warpxweft)	Wire diameter (warpxweft)	Aperture (um)	Weight (kg/m2)
32#	8 x 62	0.63mm x 0.45mm	300	5.42
40#	10 x 79	0.50mm x 0.355mm	250	3.16
48#	12 x 64	0.58mm x 0.40mm	280	2.9
55#	14 x 88	0.40mm x 0.30mm	180	2.54
76#	19 x 140	0.315mm x 0.20mm	140	1.88
80#	20 x 300	0.35mm x 0.20mm	-	3.6
95#	24 x 110	0.355mm x 0.25mm	120	2.45
100#	25 x 140	0.28mm x 0.20mm	100	1.95
120#	30 x 150	0.25mm x 0.18mm	80	1.68
140#	35 x 175	0.224mm x 0.16mm	71	1.52
160#	40 x 200	0.20mm x 0.14mm	60	1.40
180#	45 x 250	0.16mm x 0.112mm	56	1.09
200#	50 x 250	0.14mm x 0.11mm	53	1.04
220#	55.5 x 280	0.14mm x 0.10mm	50	0.92
240#	65 x 330	0.11mm x 0.08mm	36	0.71
280#(1)	70 x 350	0.11mm x 0.08mm	35	0.72
280#(2)	70 x 385	0.11mm x 0.07mm	32	0.75
300#	78 x 700	0.11mm x 0.08mm	30	1.39
315#(1)	80 x 400	0.10mm x 0.065mm	40	0.62
315#(2)	80 x 600	0.10mm x 0.06mm	-	0.74
315#(3)	80 x 800	0.15mm x 0.04mm	-	0.77
320#	81 x 780	0.10mm x 0.07mm	30	1.22
354#	90 x 550	0.12mm x 0.05	-	0.667
Width:1m-1.6m
