Product Details:
Payment & Shipping Terms:
|
Material: | Stainless Steel Wire | Application: | Filters |
---|---|---|---|
Usage: | Industry | Featurre: | Acid-resisting |
Type: | Weave Wire Mesh | Technique: | Woven |
High Light: | 1.5mm stainless steel wire mesh,1.5mm crimped woven wire mesh,SGS crimped stainless steel wire mesh |

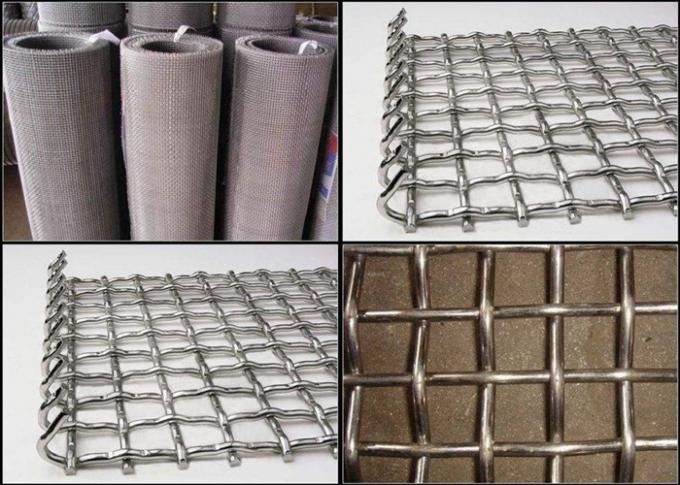

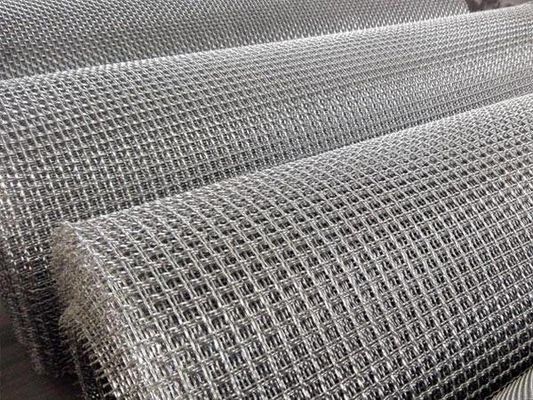

Woven Construction Square Hole Mesh Wire Cloth Stainless Woven Wire Mesh
Description
1. They are made of previous corrugated wires or rods and are alternately mounted to make a plain cloth. Their manufacturing line diameters range between 1.50 mm and 5 mm, and the square mesh is within various possibilities.
2. The stainless steel crimped wire mesh is a product that has been used for various purposes by first bending and re-weaving, and two square meshes which are pre-bent into a wavy wire and woven in plain weave.
3. Depending on the number of wire corrugations, their depth and the distance between them, the fabric can have more or less stability, consistency and a smooth surface; these are the factors to remember, depending on the application.
Feature
1. Good acid resistance, alkali resistance and rust resistance;
2. High strength, strong tensile force, toughness and wear resistance, and durable;
3. High temperature oxidation resistance, up to 1150 degrees Celsius;
4. Normal temperature processing, easy plastic processing, diversifying the use possibilities of woven stainless steel screen;
5. High smoothness, no need for surface treatment, easy maintenance.
Product parameters
Wire Gauge SWG | Wire Dia.(mm) | Mesh | Hole szie(mm) | Weight:kg/m2 |
14 | 2.0 | 21 | 1 | 4.2 |
8 | 4.05 | 18 | 1 | 15 |
25 | 0.50 | 20 | 0.61 | 2.6 |
23 | 0.61 | 18 | 0.8 | 3.4 |
24 | 0.55 | 16 | 0.1 | 2.5 |
24 | 0.55 | 14 | 0.12 | 4 |
22 | 0.71 | 12 | 0.14 | 2.94 |
19 | 1 | 2.3 | 0.18 | 1.45 |
6 | 4.8 | 1.2 | 2 | 20 |
6 | 4.8 | 1 | 2 | 20 |
6 | 4.8 | 0.7 | 3 | 14 |
14 | 2.0 | 5.08 | 0.3 | 12 |
14 | 2.0 | 2.1 | 1 | 2.5 |
14 | 2.0 | 3.6 | 1.5 | 1.9 |
Note: width of 0.5-0.6m available |
