Product Details:
Payment & Shipping Terms:
|
Product Name: | Stainless Steel 304 316 Sintered Wire Mesh Round Corrosion Resistance Liquid Filter Mesh | Width: | As Requirement |
---|---|---|---|
Size: | As Requirement | Color: | Silver |
Appication: | Filter | Weave Style: | Plain Weave |
Application: | Filters | Weave Style: | Dutch/Plain/Twill Weave |
Type: | Weave Wire Mesh | Mesh: | 1-3200mesh |
High Light: | round wire mesh screen,sintered metal disc |

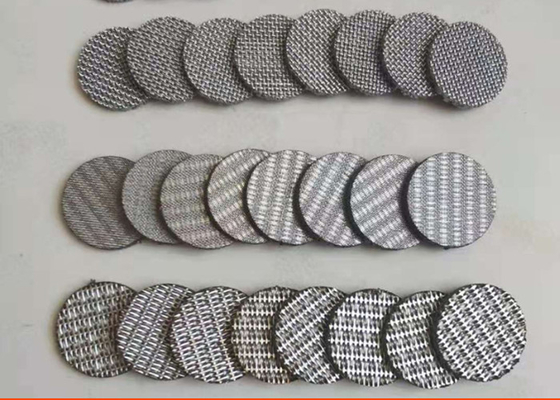

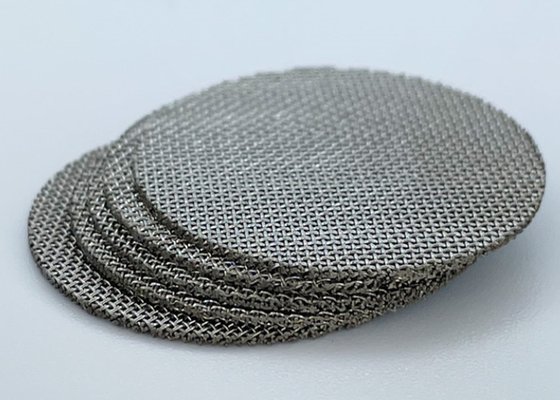

Stainless Steel 304 316 Sintered Wire Mesh Round Corrosion Resistance Liquid Filter Mesh
Product Description
The stainless steel multi-layer metal sintered mesh is made of multi-layer stainless steel wire mesh through special lamination and vacuum sintering.
The sintered mesh is made of a multi-layer woven mesh using a sintering process. It is an ideal material for purification and filtration. It can be 5, 6 or 7 layers of wire mesh.
Commonly used materials are stainless steel 304/316 / 316L, etc. The materials can also be customized according to customer requirements.
Product Parameters
Note: This list for a reference, not for the complete list.
Nomin al filter rating |
structure prodextive layer+control layer +dispersion layer+ reinforce layer+ reinforce layer |
Thickness(mm) | air perm eabilit | Bubble pressure(mm) | weight (kg/m2) |
porosity (%) |
1 | 100+400*2800+100+12*64+64 | 1.7 | 1.81 | 360-600 | 5 layer 8.4 | 40% |
5 | 100+200*1400+100+12*64+64 | 1.7 | 2.42 | 260-550 | 6 layer 14.4 | 40% |
20 | 100+165*800+100+12*64+64* | 1.7 | 4.5 | 170-450 | 40% | |
200 | 40+80+40+20+40+80+40 | 2 | 26 | 50-150 | 40% |
Product Application
1. Filtration of all polymer melts in the chemical and membrane industries
2. High temperature filtration and corrosive liquid filtration in the petroleum industry.
3. Hydraulic fuel and lubricating oil filtration in mechanical equipment
4. Liquid purification in the pharmaceutical, biological and beverage industries.
Product Feature
1. Can be used multiple times.
2. High dust capacity, high filtration precision and long flow life.
3. Provide large filter area for welding and machining.
4. High porosity, good permeability, reduced pressure and large flow.
5. Corrosion resistance of acid, alkali and organic solvents.
6. Can be used for a long time at a temperature of 600 °C.
