Product Details:
Payment & Shipping Terms:
|
Material: | 316 Stainless Steel | Width: | As Requirement |
---|---|---|---|
Length: | As Requirement | Color: | Silver / Black |
Appication: | Filter | Weave Style: | Plain Weave |
High Light: | round wire mesh screen,sintered stainless steel sheet |

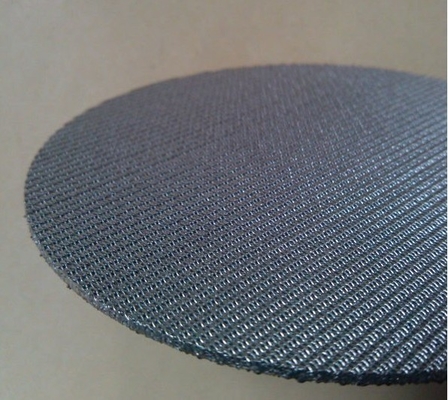

Sintered Stainless Steel Multilayer Wire Mesh Filter Disc High Filter Precision
Description
It is generally divided into five-layer structure, which is divided into four parts: protective layer, filter layer, separation layer, and support layer. This kind of filter material not only has uniform and stable filtration accuracy but also high strength and rigidity, and has high requirements for compressive strength and It is an ideal filter material when the filter particle size is required to be uniform.
The material that ofen use is stainless steel 304 / 316 / 316L etc, the material also as cliente requirement.

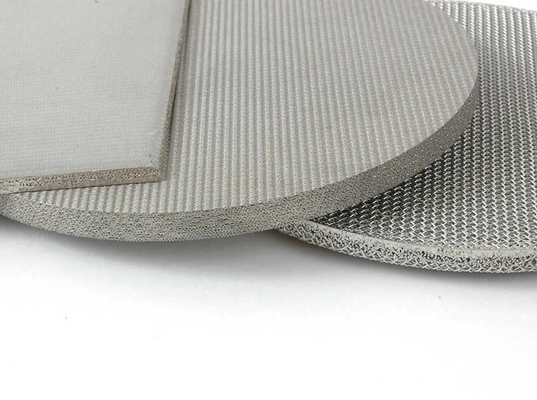

The sintered wire mesh is made of a multilayer woven wire mesh sheet using a sintering process. It is the ideal material for purification and filtration. It can be a 5, 6 or 7 layer wire mesh.
Parameters of stainless steel sintered mesh
Note: This list for a reference, not for the complete list.
Nomin al filter rating |
structure prodextive layer+control layer +dispersion layer+ reinforce layer+ reinforce layer |
Thickness(mm) | air perm eabilit | Bubble pressure(mm) | weight (kg/m2) |
porosity (%) |
1 | 100+400*2800+100+12*64+64 | 1.7 | 1.81 | 360-600 | 5 layer 8.4 | 40% |
5 | 100+200*1400+100+12*64+64 | 1.7 | 2.42 | 260-550 | 6 layer 14.4 | 40% |
20 | 100+165*800+100+12*64+64* | 1.7 | 4.5 | 170-450 | 40% | |
200 | 40+80+40+20+40+80+40 | 2 | 26 | 50-150 | 40% |
Application
1. The widely use in filter, for example filtration of all polymer melts in the chemical / membrane industries / in the pharmaceutical / biological and beverage industries.But also can work in hydraulic fuel and lubricating oil filtration in mechanical equipment.
2. The mesh plate also can work on high temperature filteration and corrosive liquid filtration in the petroleum industry.
3. This shows that the sintered can work in various filed,if you don't know which kind of use can use the sintered mesh, don't hesitate , please contact us, we can give you a reference.
Feature
1. Can be used multiple times.
2. High dust capacity, high filtration precision and long flow life.
3. Provide large filter area for welding and machining.
4. High porosity, good permeability, reduced pressure and large flow.
5. Corrosion resistance of acid, alkali and organic solvents.
6. Can be used for a long time at a temperature of 600 °C.
