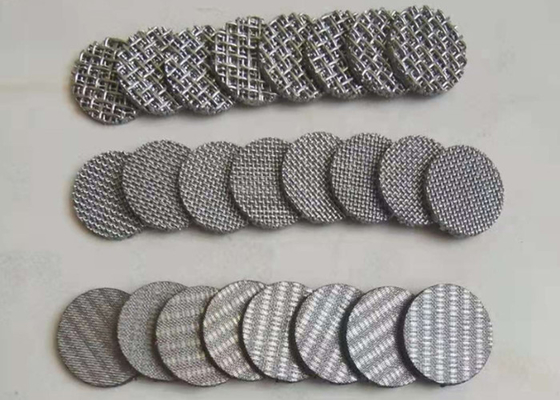

High Temperature Round Disc 2mm Thickness Stainless Steel Wire Mesh Filter Disc
Product Description

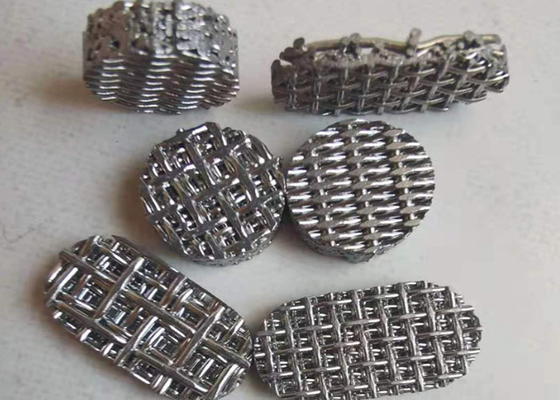

Stainless steel sintered mesh is a new type of filter material made of multi-layer metal wire woven mesh through special lamination pressing and vacuum sintering process. It has high mechanical strength and overall rigidity. The meshes of the screen layers are arranged staggered to form a uniform and ideal filter structure, which not only overcomes the defects of low strength, poor rigidity, and unstable mesh shape of ordinary metal meshes, but also can be used to filter materials with pore sizes. The permeability and strength characteristics are reasonably matched and designed to make it have excellent filtration accuracy, filtration resistance, mechanical strength, abrasion resistance, heat resistance and processability. The overall performance is obviously better than that of sintered metal powder and ceramics. Other types of filter materials, such as fiber, filter cloth, filter paper, etc.
Product Feature
1. It has extremely high mechanical strength and compressive strength. Good processing, welding and assembly performance, easy to use.
2. The filter layer is in the second layer, which is well protected and shunted, and the filtration precision can achieve uniform filtration performance, ensuring high stability.
3. 316L material is used, which has good corrosion resistance and good heat resistance. It can be used for filtration from -200 ° C to 480 ° C and acid and alkali environment.
4. Excellent surface cleaning structure with counter-current cleaning effect, so the counter-current cleaning effect is good, it can be used repeatedly and has a long service life. (Can be washed by countercurrent water, filtrate, ultrasonic, melting, baking, etc.).
Product Parameters
Note: This list for a reference, not for the complete list.
|
Nomin
al filter rating
|
structure prodextive layer+control layer
+dispersion layer+ reinforce layer+ reinforce layer
|
Thickness(mm) |
air perm eabilit |
Bubble pressure(mm) |
weight (kg/m2) |
porosity
(%)
|
| 1 |
100+400*2800+100+12*64+64 |
1.7 |
1.81 |
360-600 |
5 layer 8.4 |
40% |
| 5 |
100+200*1400+100+12*64+64 |
1.7 |
2.42 |
260-550 |
6 layer 14.4 |
40% |
| 20 |
100+165*800+100+12*64+64* |
1.7 |
4.5 |
170-450 |
|
40% |
| 200 |
40+80+40+20+40+80+40 |
2 |
26 |
50-150 |
|
40% |
Product Application
1. Used in high temperature environment as dispersion cooling material
2. For gas distribution, liquidized bed orifice material
3. For high precision, high reliability high temperature filter materials
4. For high pressure backwash oil filter
