Product Details:
Payment & Shipping Terms:
|
Product Name: | Various Shapes Stainless Steel 5 Um 10 Um Sintered Wire Mesh Filter Disc | Width: | As Requirement |
---|---|---|---|
Length: | As Requirement | Color: | Silver / Black |
Appication: | Filter | Weave Style: | Plain Weave |
Type: | Weave Wire Mesh | Material: | Stainless Steel Wire,304,316 |
High Light: | round wire mesh screen,sintered metal disc |

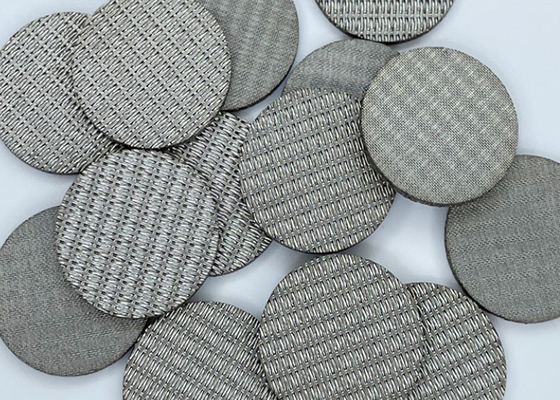

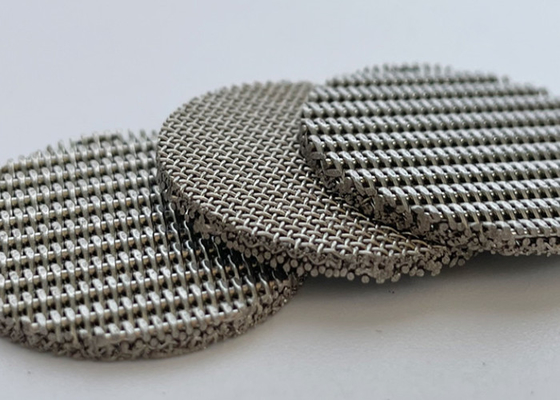

Various Shapes Stainless Steel 5 Um 10 Um Sintered Wire Mesh Filter Disc
Product Description
The stainless steel sintered mesh is a new type of filter material which is made of a multi-layer wire woven mesh and is manufactured by a special lamination pressing and vacuum sintering process, and has high mechanical strength and overall rigidity. The meshes of the layers of the screen are interlaced to form a uniform and ideal filtering structure, which not only overcomes the defects of low strength, poor rigidity and unstable mesh shape of the ordinary metal mesh, but also can be used for the pore size of the material. The permeability and strength characteristics are reasonably matched and designed, so that it has excellent filtration precision, filtration resistance, mechanical strength, wear resistance, heat resistance and processability. The comprehensive performance is obviously superior to sintered metal powder and ceramics. Other types of filter materials such as fibers, filter cloth, and filter paper.
Product Feature
Working Temperature:200—1000°C
Corrosion Resistance
High Filtering Efficiency
Metallic capacities, such as noise reduction,hot resistance,heat conduction,high strength and etc
Easy to welding and long working life
Product Parameters
Note: This list for a reference, not for the complete list.
Nomin al filter rating |
structure prodextive layer+control layer +dispersion layer+ reinforce layer+ reinforce layer |
Thickness(mm) | air perm eabilit | Bubble pressure(mm) | weight (kg/m2) |
porosity (%) |
1 | 100+400*2800+100+12*64+64 | 1.7 | 1.81 | 360-600 | 5 layer 8.4 | 40% |
5 | 100+200*1400+100+12*64+64 | 1.7 | 2.42 | 260-550 | 6 layer 14.4 | 40% |
20 | 100+165*800+100+12*64+64* | 1.7 | 4.5 | 170-450 | 40% | |
200 | 40+80+40+20+40+80+40 | 2 | 26 | 50-150 | 40% |
Product Application
1. Used in high temperature environment as dispersion cooling material
2. For gas distribution, liquidized bed orifice material
3. For high precision, high reliability high temperature filter materials
4. For high pressure backwash oil filter
