SS Wire Mesh Filters Heat Resistance Multilayer Hot Fluid Filtration
Product Description

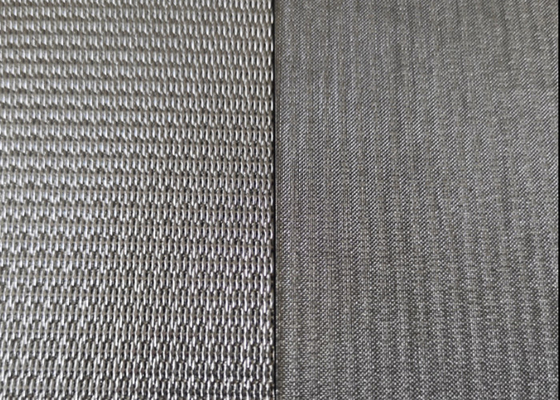

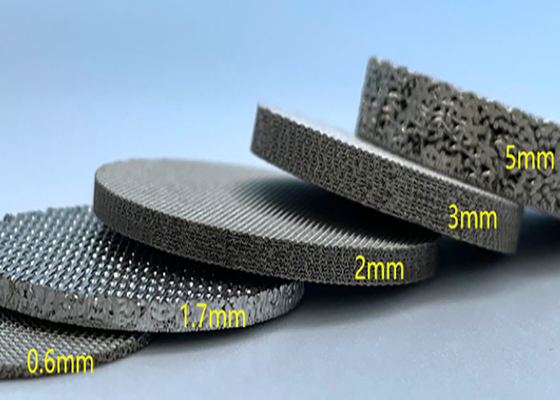

This type of sintered wire mesh laminate is made by using several layers of woven wire mesh and sintering them into a layer of perforated metal. The woven wire mesh layer consists of a filter layer, a protective layer and a buffer layer possibly between the fine mesh layer and the porous plate. The perforated plate is then added as a substrate and the entire structure is sintered together to form a very strong but easy to handle plate.
Product Feature
• High filtration accuracy based on wire mesh
• Low dropout
• High pressure resistance and excellent toughness
• High heat resistance based on stainless steel characteristics, temperature range -269 ° C ~ 600 ° C
• Excellent corrosion resistance based on stainless steel properties
• Excellent cleanability and long-term reusability due to typical surface filtration
Product Application
• High viscosity liquid filtration, such as polymers and adhesives
• Hot fluid filtration
• Oil filtration, such as lubricating oil and turbine oil
• Fluid food filtration, if juice, cooking oil and vinegar
• Dewatering of sludge, food, etc.
Product Parameters
Note: This list for a reference, not for the complete list.
Nomin al filter rating |
structure prodextive layer+control layer +dispersion layer+ reinforce layer+ reinforce layer |
Thickness(mm) | air perm eabilit | Bubble pressure(mm) | weight (kg/m2) |
porosity (%) |
1 | 100+400*2800+100+12*64+64 | 1.7 | 1.81 | 360-600 | 5 layer 8.4 | 40% |
5 | 100+200*1400+100+12*64+64 | 1.7 | 2.42 | 260-550 | 6 layer 14.4 | 40% |
20 | 100+165*800+100+12*64+64* | 1.7 | 4.5 | 170-450 | 40% | |
200 | 40+80+40+20+40+80+40 | 2 | 26 | 50-150 | 40% |
