Product Details:
Payment & Shipping Terms:
|
Material: | 316 Stainless Steel | Filter Rating: | 99% |
---|---|---|---|
Technique: | Woven | Color: | Silver / Black |
Type: | Filter Element | Product Name: | Sintered Mesh |
High Light: | round wire mesh screen,sintered metal disc |

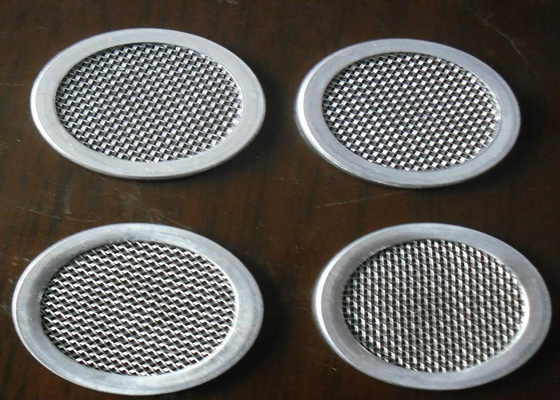

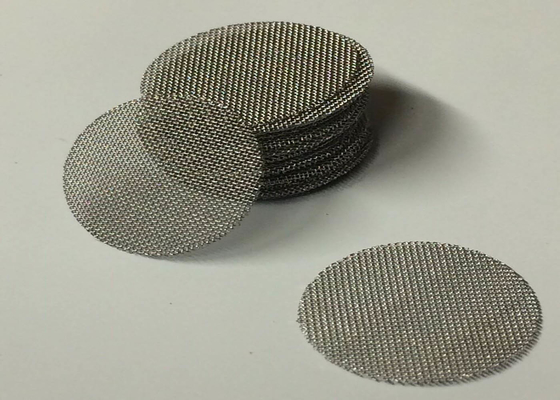

Multiple Shapes Stainless Steel Wire Mesh Round 10 Micron Filter Cloth Disc
Product Description
The sintered disc can be made into a non-sintered molten web, one layer, two layers, three layers or five layers, which are bonded by diffusion annealing. In order to satisfy the required stability and filtration, the mesh layer may also use a perforated plate or a metal fiber felt.
Our main products include
Five-layer sintered mesh
Sintered mesh laminate
Sintered mesh with perforated metal
Sintered metal filter
Sintered metal filter disk
Folded sintered mesh filter
Sintered cone filter
Sintered metal fiber felt.
Product Feature
High mechanical stability
High mechanical stability rating
No displacement in the wire cloth structure
High filtration capacity due to surface filtration
Corrosion-resistant, wear-resistant, can work in the temperature range of -50 ° C to + 550 ° C.
The sintered mesh can be made into a filter candle, a circle, a disk or the like as needed.
Product advantage
Heat and corrosion resistant,
High mechanical strength.
Ability to maintain a stable filter rating at high pressures.
Easy to clean, using a variety of filter cleaning techniques and re-use.
Easy to manufacture, weld, stamp, shear or otherwise form various parts.
Stainless steel sintered mesh laminates are available in a wide range of filtration grades for water treatment, liquid and gas filtration, beverages, medical, chemical processing, food and beverage, pharmaceutical and transportation industries.
Product Application
Sintered mesh can be used for filtration of polymers, chemicals, foods, hydraulic oils and fuels, pharmaceuticals and cosmetics, water and emissions. It is also used for the fluidization of bulk materials in gravity conveyors, trucks, conveyors, storage silos, dryers, bulk materials and coolers.
Product Parameters
Note: This list for a reference, not for the complete list.
Nomin |
structure prodextive layer+control layer |
Thickness (mm) | air perm eabilit | Bubble pressure (mm) | weight (kg/m2) |
porosity |
1 | 100+400*2800+100+12*64+64 | 1.7 | 1.81 | 360-600 | 5 layer 8.4 | 40% |
5 | 100+200*1400+100+12*64+64 | 1.7 | 2.42 | 260-550 | 6 layer 14.4 | 40% |
20 | 100+165*800+100+12*64+64* | 1.7 | 4.5 | 170-450 | 40% | |
200 | 40+80+40+20+40+80+40 | 2 | 26 | 50-150 | 40% |
