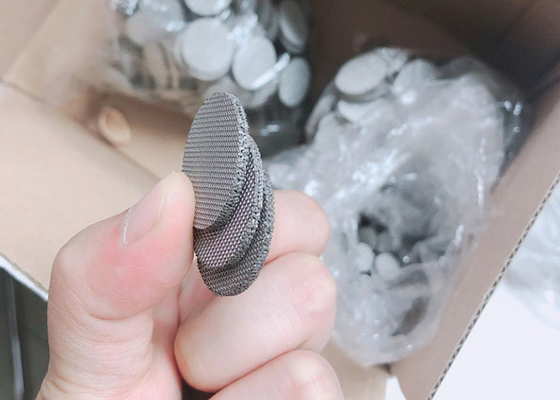

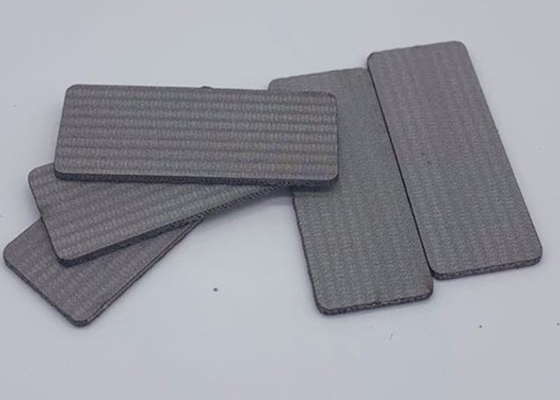

Square Size 1 5 10 Micron Stainless Steel Wire 5 Layer Sintered Filter Mesh Disc

Large Image : Square Size 1 5 10 Micron Stainless Steel Wire 5 Layer Sintered Filter Mesh Disc

Product Details:

Place of Origin:	Hebei,China
Brand Name:	R&K
Certification:	SGS
Model Number:	S-13

Payment & Shipping Terms:

Minimum Order Quantity:	1square meter
Price:	Negotiate
Packaging Details:	Inside:bubble wrap Outside :wooden case or as required
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/P, T/T, Western Union，PayPal
Supply Ability:	1000 pieces per week

Contact Now

Detailed Product Description

Product Name:	Sintered Mesh	Filter Rating:	99%
Weave Type:	Plain Weave	Color:	Silver
Type:	Filter Element	Layer:	5 Layers
Shape:	Round	Material:	Stainless Steel 304 ,316
Application:	Filters
High Light:	round wire mesh screen , sintered stainless steel sheet

Square Size 1 5 10 Micron Stainless Steel Wire 5 Layer Sintered Filter Mesh Disc

Stainless steel sintered mesh is a kind of filter cloth. It is pressed by multiple layers of woven wire mesh and then sintered together in a vacuum furnace. This filter cloth is much better than ordinary metal woven mesh, with good strength, high hardness and good opening position. Its overall performance is better than sintered metal powder and porcelain.

Main features of theSintered Filter Mesh Disc:
High strength, no internal support is required to manufacture the filter element; no material, easy to clean repeatedly; long life, good corrosion resistance.

The use of sintered stainless steel mesh Sintered Filter Mesh Disc:

Filter polyester, oil, sulfur, etc. in chemical products.
Used to filter pure water, air, etc.

Main technical data of theSintered Filter Mesh Disc:

Filter fineness: 2-60 microns.
Working temperature: -20℃～600℃.
The highest pressure drop: 3.2Mpa.
Maximum size: width: 500mm; length: 1000mm.
Number of layer: 2 to 6 layers

Product Parameters
Note: This list for a reference, not for the complete list.

Nomin al filter rating	structure prodextive layer+control layer +dispersion layer+ reinforce layer+ reinforce layer	Thickness (mm)	air perm eabilit	Bubble pressure (mm)	weight (kg/m2)	porosity (%)
1	100+4002800+100+1264+64	1.7	1.81	360-600	5 layer 8.4	40%
5	100+2001400+100+1264+64	1.7	2.42	260-550	6 layer 14.4	40%
20	100+165800+100+1264+64*	1.7	4.5	170-450		40%
200	40+80+40+20+40+80+40	2	26	50-150		40%
