Product Details:
Payment & Shipping Terms:
|
Features: | Acid Resistance | Product Name: | 4*4 Mm PTFE Coated Conveyor Belt |
---|---|---|---|
Color: | Red | Hole Size: | 4mm |
Length: | Any Length Is OK | Application: | Silk Screen Printing Machine |
Packing: | Roll Packed In A Carton Box | Structure: | Conveyor System |
High Light: | red edging polymer conveyor belt,4*4mm hole polymer conveyor belt,acid resistance ptfe mesh conveyor belt |

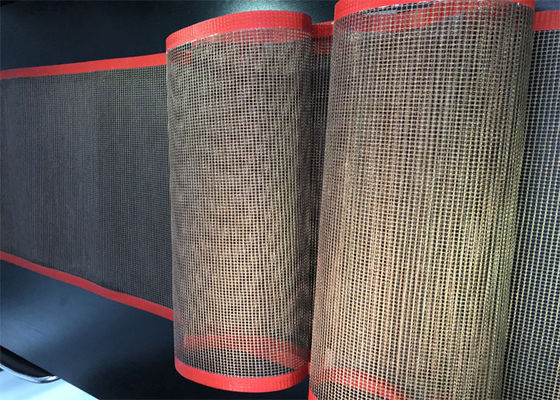

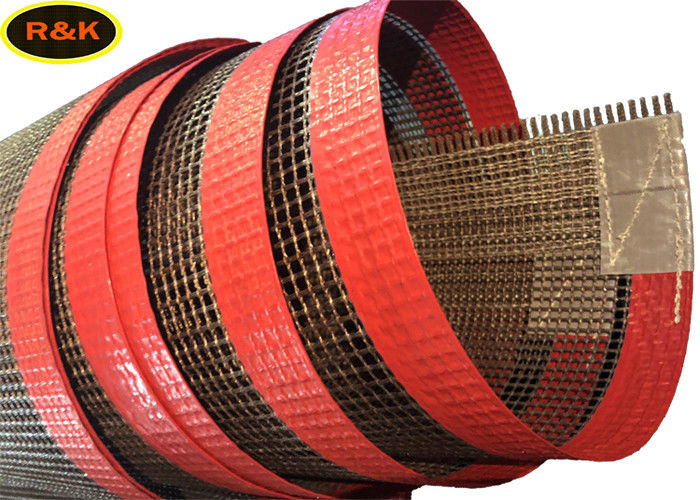

Polymer Material High Temperature Resistant 300 Degrees Red Edging 4*4mm Hole Coated Mesh Conveyor Belt
Description
teflen conveyor belts are widely used in textile printing and dyeing, offset printing machines, bonding machines, garment printing and dyeing.
And drying of water-containing articles, such as corrosion resistance, high temperature resistance and good insulation. Today's theme is a brief introduction to the way teflen conveyor belts are joined.
Teflen conveyor belts mainly include Teflen mesh conveyor belts and Teflen high-temperature cloth. Both are made of glass fiber cloth as the base material and coated with Teflen resin to make Teflen (PTFE) conveyance belt;
Among them, Teflen mesh conveyor belts are defined by the size of the mesh, mainly including 1×1MM, 2×2.5MM, 4×4MM, 10×10MM and other meshes, and are divided into single weft and double according to the different warp and weft. Weft Teflen mesh conveyor belt; Teflen high temperature cloth is divided into specifications by thickness, the thinnest can reach 0.08MM.
Standing Temperature | 70 to 260 |
Band name | R&K |
Place of original | Hebei,China |
Weight | 120-160g/m2 |
Color | Any color is ok |
1%Elongation(kg/cm) | 390/320 |
Features | Acid Resistance |
Features
1. It has high temperature resistance (continuous use temperature above 260 degrees Celsius) and good air permeability.
2. Corrosion resistance (not affected by most chemicals and solvents). Good insulation.
3. Anti-adhesive (almost all adhesives such as resin and paint can be easily removed).
4. teflen conveyor belt has good stability, good durability, small friction coefficient and smooth balance of transportation.
Specification
Item | Hole size | Material | Thickness | weight | Temperature resistance | Max width | Tensile strength |
W-O5J | 1x 1mm | Glassfiber | 0.5mm | 370g /m 2 | -70 -260 ℃ | 4m | 310/290 N/cm |
W-07J | 2x 2mm | Glassfiber | 0.7mm | 450g /m 2 | -70 -260 ℃ | 4m | 350/310 N/cm |
W-1J | 4x 4mm | Glassfiber | 1.0mm | 400g /m 2 | -70 -260 ℃ | 4m | 390/320 N/cm |
W-2J | 4x 4mm | Glassfiber | 1.0mm | 450g /m 2 | -70 -260 ℃ | 4m | 390/320 N/cm |
W-3J | 4x 4mm | Glassfiber | 1.0mm | 500g /m 2 | -70 -260 ℃ | 4m | 395/370 N/cm |
W-4J | 4x 4mm | Glassfiber | 1.0mm | 500g /m 2 | -70 -260 ℃ | 4m | 900/600 N/cm |
W-5J | 4x 4mm | Glassfiber | 1.0mm | 550g /m 2 | -70 -260 ℃ | 4m | 395/370 N/cm |
W-12J | 10x 10mm | Glassfiber | 1.2mm | 450g /m 2 | -70 -260 ℃ | 4m | 360/300 N/cm |
NW-14J | 0.5x 1mm | Glassfiber | 0.5mm | 420g /m 2 | -70 -260 ℃ | 4m | 310/290 N/cm |
W-09J | 2x 2.5mm | Glassfiber | 0.9mm | 600g /m 2 | -70 -260 ℃ | 3m | 390/320 N/cm |
Application
A: Widely used in the mechanical matching of belt pressing and bonding interlining.
B: Various food baking, frozen food thawing (rice, rice cake, candy, etc.)
C: Various electronic components welding and conveying machinery
D: Industrial chemicals, rubber and plastic sheets, heat treatment of electrical parts, heat-resistant and non-stick special transport belts
E: Transport of rust-proof adhesive for automotive parts, transport belts with acid, alkali, and corrosive materials
