Weather Resistance Teflen Coated Open Mesh Conveyor Belts Used for Paper industry

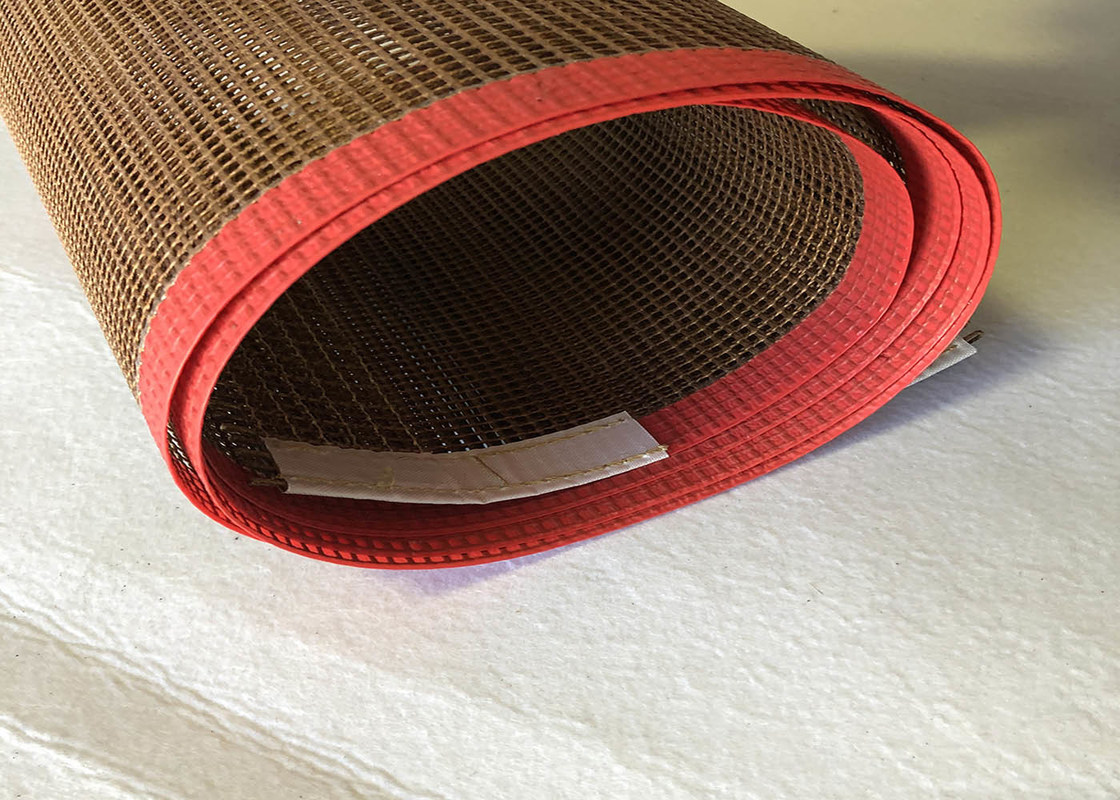

Description of the teflen conveyor belt:
PTFE conveyor belt used between low temperature -70C and high temperature 260C, it has weather resistance and anti-aging. After practical application, if placed for 200 days at a high temperature of 250C, not only the strength will not decrease, but the weight will not decrease; placed at a high temperature of 350"C for 120 hours, the weight will only decrease by about 0.6%; at -180C ultra-low temperature Under the circumstances, no cracks will occur, and the original softness will be maintained.It‘s’an important accessory in the printing process. We provide a variety of printing materials, including printing screen mesh, printing squeegees, printing screen frames, and Teflen screens. Teflen conveyor belt is one of the best-selling products. Our Teflen conveyors come in many sizes. For example: the aperture has 1 * 1mm, 2 * 2mm, 4 * 4mm, 10 * 10mm, etc. We can customize various lengths and widths.
Our PTFE belt have sell allover the world,
| Standing Temperature |
70 to 380 |
| Band name |
R&K |
| Place of original |
Hebei,China |
| Weight |
120-160g/m2 |
| Color |
Any color is ok |
| 1%Elongation(kg/cm) |
390/320 |
| Length |
As your requirements |
| Size |
1mm,2mm,4mm,10mm |
| Features |
Acid Resistance |
Features of the teflen conveyor belt:
Good dimensional stability (elongation coefficient less than 5%) and high strength. Has good mechanical properties.
Resistant to bending fatigue and can be used for smaller wheel diameters.
Drug resistance and non-toxicity. It can withstand almost all pharmaceutical items.
Fire and flame retardant.
Air permeability: the air permeability of the conveyor belt, reduce heat source consumption, and improve drying efficiency.
Specification of the teflen conveyor belt:
| Mesh Size |
Thickness |
Weight |
temperature resistance |
Max width |
Tensile Strength |
| 1*1mm |
0.5mm |
370g/ m2 |
-70 -260 ℃ |
4m |
310/290N/cm |
| 2*2mm |
0.7mm |
450g/ m2 |
-70 -260 ℃ |
4m |
350/310N/cm |
| 4*4mm |
1.0mm |
400g/ m2 |
-70 -260 ℃ |
4m |
390/320N/cm |
| 4*4mm |
1.2mm |
600g/ m2 |
-70 -260 ℃ |
4m |
895/370N/cm |
| 10*10mm |
1.2mm |
450g/ m2 |
-70 -260 ℃ |
4m |
360/300N/cm |
| 0.5*1mm |
0.5mm |
420g/ m2 |
-70 -260 ℃ |
4m |
310/290N/cm |
| 2*2.5mm |
0.9mm |
600g/ m2 |
-70 -260 ℃ |
4m |
390/320N/cm |
Application of the teflen conveyor belt:
1. Teflen conveyor belt can be used for the transmission of anti-sticking lining, gasket and mask
2. Teflen conveyor belt can make all kinds of drying machine adhesive tape, sealing tape
3. Teflen conveyor belt can be used for heat-resistant coating, laminated substrate, and thermal insulation packaging
4. Teflen conveyor belt can be used for microwave gasket, baking tray and food drying
5. Teflen conveyor belt can be used as adhesive tape, transfer machine cloth, carpet rubber curing conveyor belt, rubber vulcanized conveyor belt, sandpaper curing separation cloth, etc.
6. Teflen conveyor belt can be used as architectural membrane materials: roofs of various sports venues, station pavilions, umbrellas, landscapes, etc.
7. Teflen conveyor belt is used for anticorrosion of various petrochemical pipelines and environmental desulfurization of power plant waste gas.
8. Teflen conveyor belt can weld plastic products and welding cloth
