Product Details:
Payment & Shipping Terms:
|
Material: | Stainless Steel Wire Mesh | Type: | Weave Wire Mesh |
---|---|---|---|
Width: | 1m, 1.2m, 1.5m, Or As Requirement | Length: | 30m Or As Requirement |
Diameter: | 0.9*0.71- 0.025*0.015 | Usage: | Screen Filter |
High Light: | high tensile woven stainless steel mesh,customization 100 micron stainless steel mesh,60 micron woven stainless steel mesh |

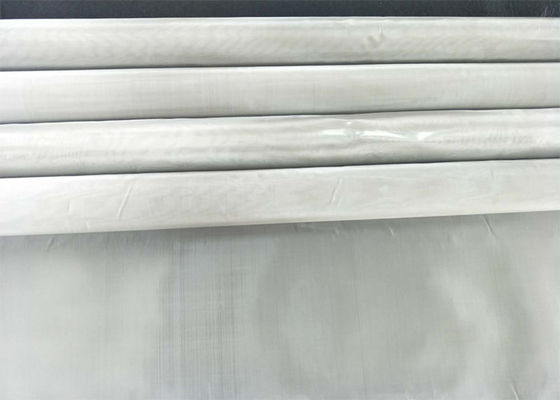

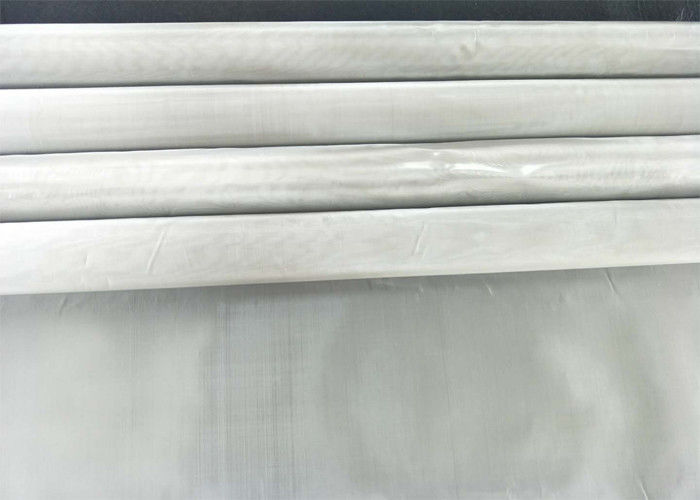

Customization 60 80 100 Micron High Tensile Woven Stainless Steel Mesh

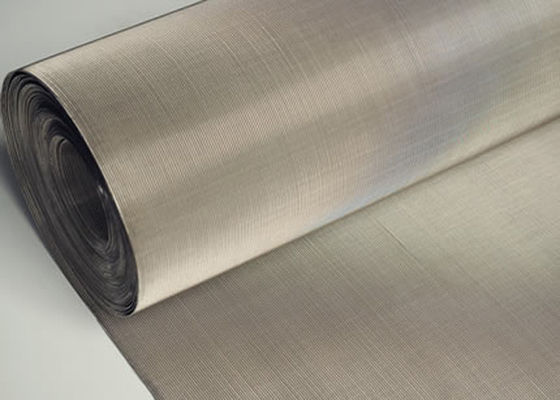

Description of stainless steel Dutch woven wire mesh
The stainless steel Dutch mesh is a type of stainless steel wire mesh. The type of net is because his latitude and longitude wire diameter is different and the number of meshes is different. Reasonable matching of wire diameter and mesh number can achieve the filtration density that can not be achieved by the square network. Therefore, the mat type net is a fine-grained dense mesh, but generally the warp diameter is larger than the weft diameter. The reason why the differential weave is called contrast is because the weft is much thicker than the warp.
Parameters of stainless steel Dutch mesh
plain weave Dutch mesh |
||||
Number |
Mesh(warpxweft) |
Wire diameter (warpxweft) |
Aperture (um) |
Weight (kg/m2) |
32# |
8 x 62 |
0.63mm x 0.45mm |
300 |
5.42 |
40# |
10 x 79 |
0.50mm x 0.355mm |
250 |
3.16 |
48# |
12 x 64 |
0.58mm x 0.40mm |
280 |
2.9 |
55# |
14 x 88 |
0.40mm x 0.30mm |
180 |
2.54 |
76# |
19 x 140 |
0.315mm x 0.20mm |
140 |
1.88 |
80# |
20 x 300 |
0.35mm x 0.20mm |
- |
3.6 |
95# |
24 x 110 |
0.355mm x 0.25mm |
120 |
2.45 |
100# |
25 x 140 |
0.28mm x 0.20mm |
100 |
1.95 |
120# |
30 x 150 |
0.25mm x 0.18mm |
80 |
1.68 |
140# |
35 x 175 |
0.224mm x 0.16mm |
71 |
1.52 |
160# |
40 x 200 |
0.20mm x 0.14mm |
60 |
1.40 |
180# |
45 x 250 |
0.16mm x 0.112mm |
56 |
1.09 |
200# |
50 x 250 |
0.14mm x 0.11mm |
53 |
1.04 |
220# |
55.5 x 280 |
0.14mm x 0.10mm |
50 |
0.92 |
240# |
65 x 330 |
0.11mm x 0.08mm |
36 |
0.71 |
280#(1) |
70 x 350 |
0.11mm x 0.08mm |
35 |
0.72 |
280#(2) |
70 x 385 |
0.11mm x 0.07mm |
32 |
0.75 |
300# |
78 x 700 |
0.11mm x 0.08mm |
30 |
1.39 |
315#(1) |
80 x 400 |
0.10mm x 0.065mm |
40 |
0.62 |
315#(2) |
80 x 600 |
0.10mm x 0.06mm |
- |
0.74 |
315#(3) |
80 x 800 |
0.15mm x 0.04mm |
- |
0.77 |
320# |
81 x 780 |
0.10mm x 0.07mm |
30 |
1.22 |
354# |
90 x 550 |
0.12mm x 0.05 |
- |
0.667 |
Width:1m-1.6m |
Application of 60 um stainless steel Dutch wire mesh
The products are mainly used for gas, liquid filtration and other medium separation; widely used in precision pressure filters, fuel filtration, vacuum filters, filter materials, aerospace, oil refining, medicine, sugar, petroleum, chemical, chemical fiber, rubber, tires. Manufacturing, metallurgy, food, health research and other industries.
The stainless steel Dutch wire mesh feature
♦ Acid resistant
♦ Alkali resistance
♦ High temperature resistance
♦ Strong tensile and wear resistance
♦ It has stable filtration performance, fineness, high precision and special filtration performance.
