HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
Product Details:
Payment & Shipping Terms:
|
Product Name: | Stainless Steel Filter High Quality Round 304 Five-Layer Sintered Mesh Explosion-Proof Muffler | Filter Rating: | 1 - 200um |
---|---|---|---|
Technique: | Woven | Color: | Silver / Black |
Appication: | Filter | Weave Style: | Plain |
Usage: | Filter | Feature: | Heat Resistance |
High Light: | 200um stainless steel mesh disc,sintered stainless steel mesh disc,200um mesh sintered disc |

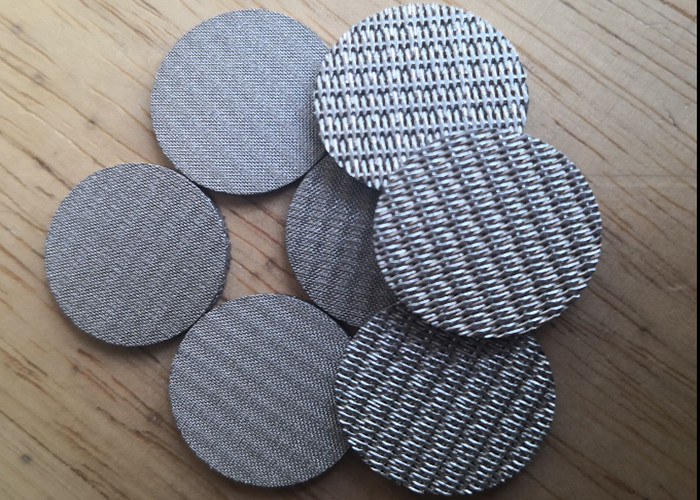

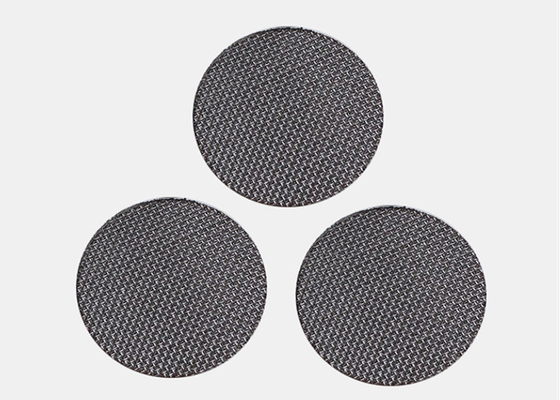

Stainless Steel Filter High Quality Round 304 Five-Layer Sintered Mesh Explosion-Proof Muffler
Product Description
The stainless steel sintered filter screen is generally divided into five-layer structure, which is divided into four parts: protective layer, filter layer, separation layer and support layer. This kind of filter material not only has uniform and stable filtration accuracy but also high strength and rigidity, and resists pressure. It is an ideal filter material where high strength and uniform filter particle size are required..
Product Feature
• High filtration accuracy based on metal wire mesh
• Low pressure drop
• High pressure resistance and excellent toughness
• High heat resistance based on the characteristics of stainless steel, temperature range -269°C ~ 600°C
• Excellent corrosion resistance based on the characteristics of stainless steel
• Due to typical surface filtration, excellent cleaning and long-term reusability
Product Application
• Filtration of high-viscosity liquids, such as polymers and adhesives
• Thermal fluid filtration
• Oil filtration, such as lubricating oil and turbine oil
• Liquid food filtration, such as juice, cooking oil and vinegar
• Dehydration of sludge, food, etc.
Product Parameters
Nomin al filter rating |
structure prodextive layer+control layer +dispersion layer+ reinforce layer+ reinforce layer |
Thickness(mm) | air perm eabilit | Bubble pressure(mm) | weight (kg/m2) |
porosity (%) |
1 | 100+400*2800+100+12*64+64 | 1.7 | 1.81 | 360-600 | 5 layer 8.4 | 40% |
5 | 100+200*1400+100+12*64+64 | 1.7 | 2.42 | 260-550 | 6 layer 14.4 | 40% |
20 | 100+165*800+100+12*64+64* | 1.7 | 4.5 | 170-450 | 40% | |
200 | 40+80+40+20+40+80+40 | 2 | 26 | 50-150 | 40% |
Contact Person: Gerry Cui
Tel: +8613333017371
