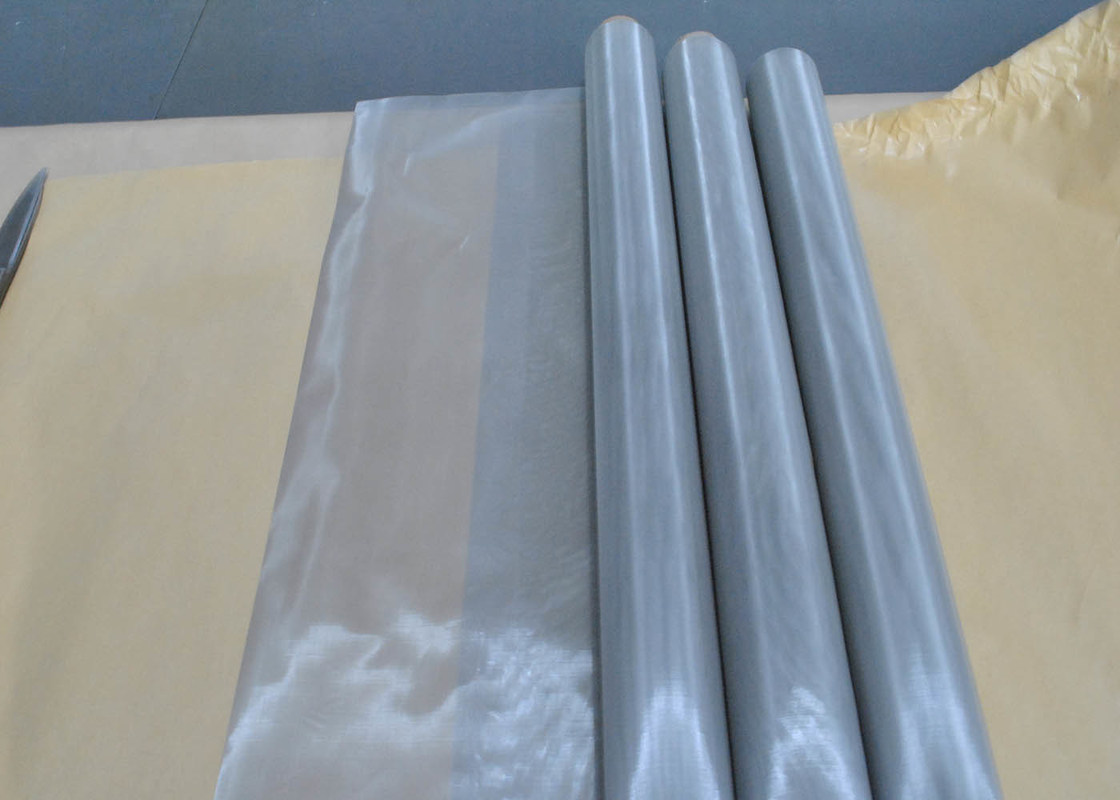

304N Stainless Steel Screen Printing Mesh , Plain Weave Fabric Mesh Screen

Certification
Good quality Screen Printing Mesh for sales
Good quality Screen Printing Mesh for sales
I'm Online Chat Now

304N Stainless Steel Screen Printing Mesh , Plain Weave Fabric Mesh Screen

China 304N Stainless Steel Screen Printing Mesh , Plain Weave Fabric Mesh Screen supplier
304N Stainless Steel Screen Printing Mesh , Plain Weave Fabric Mesh Screen supplier 304N Stainless Steel Screen Printing Mesh , Plain Weave Fabric Mesh Screen supplier 304N Stainless Steel Screen Printing Mesh , Plain Weave Fabric Mesh Screen supplier 304N Stainless Steel Screen Printing Mesh , Plain Weave Fabric Mesh Screen supplier

Large Image :  304N Stainless Steel Screen Printing Mesh , Plain Weave Fabric Mesh Screen

Product Details:

Place of Origin: Hebei,China
Brand Name: R&K
Certification: FDA SGS
Model Number: R&K-picture112

Payment & Shipping Terms:

Minimum Order Quantity: 1 meter
Price: negotiation
Packaging Details: Inside with a paper tube,outside with piece of waterproof paper and then a plastic bag and finally with a pallet.or pack it as your requirements.
Delivery Time: Within 8 work days
Payment Terms: L/C,T/T,Paypal,Western Union,Trade assurance.
Supply Ability: 10000 Square Meter per month
Contact Now
Detailed Product Description
Material: 304N Stainless Steel Wire Mesh Type: Plain Weave
Applications: Screen Printing Weave Style: Plain Weave
Advantage: High Precision Mesh/inch: 40-500mesh
Colour: Silver Width: 1m,1.02m,1.22m

304N Stainless Steel Screen Printing Mesh for High Precision Screen Printing





Description of the stainless steel screen printing mesh:



All stainless steel wire meshes are woven with precision screen printing precision wire for higher tensile strength and lower elongation.
Continuously improve quality and meet all technical requirements for screen and thick film screen printing applications.

With an innovative screen printing network, it lays the foundation for the development of efficient screen printing processes.

The stainless steel mesh is a precision wire mesh that allows access to new areas and continuity due to special characteristic curves.


Features of stainless steel wire mesh:

  • Higher screen tension
  • Minimal tension loss
  • Modify the effects of paste and color(also has a high viscosity paste)
  • Reduce the possibility of pasting
  • Optimized dimensional stability
  • Longer screen life



Application of stainless steel wire mesh:



304N Stainless Steel Screen Printing Mesh , Plain Weave Fabric Mesh Screen304N Stainless Steel Screen Printing Mesh , Plain Weave Fabric Mesh Screen

Car printing                                           Solar printing

304N Stainless Steel Screen Printing Mesh , Plain Weave Fabric Mesh Screen304N Stainless Steel Screen Printing Mesh , Plain Weave Fabric Mesh Screen

 Multi-layer ceramic capacitors              Concentrator printing



304N Stainless Steel Screen Printing Mesh , Plain Weave Fabric Mesh Screen304N Stainless Steel Screen Printing Mesh , Plain Weave Fabric Mesh Screen



Glass Printing                                      Chip and MEMS Printing







Specification of the stainless steel screen printing mesh:



Specification Mesh/
inch
Wire Dia
(μm)
Open area
Ratio(%)
Apereture
(μm)
Apereture
(μm)
Calendered Thickness
(μm)
Theoretical
lnk(cm^/m^)
40*40*160 40 160 56 475 300-320 As order 179.1
60*60*120 60 120 51.3 303 230-245 As order 123.2
80*80*120 80 120 39 198 235-245 As order 92.9
80*80*90 80 90 52 228 175-180 As order 103
80*8*50 80 50 71 268 95-100 As order 78
100*100*100 100 100 36.8 154 195-205 As order 77.2
120*120*80 120 80 39 132 155-165 As order 65.8
150*150*60 150 60 41.7 109 115-124 As order 50
165*165*35 165 35 60 119 70-75 As order 48
165*165*45 165 45 50.1 109 88-93 As order 45.1
165*165*50 165 50 45.6 104 97-105 As order 45.6
180*180*45 180 45 46.4 96 88-93 As order 41.5
180*180*50 180 50 42 91 98-104 As order 41.7
200*200*40 200 40 46.9 87 82-84 As order 43
200*200*50 200 50 37 77 98-103 As order 42
230*230*35 230 35 46.7 75 72-76 50-67 37
250*250*40 250 40 36.8 62 82-86 50-80 34
250*250*30 250 30 49.7 72 64-68 40-58 30
250*250*35 250 35 43 67 76-78 57-70 32
270*270*35 270 35 39.4 59 76-80 58-70 30
300*300*30 300 30 41.7 55 66-68 4-59 28
325*325*30 325 30 38 48 66-68 45-60 24
325*325*28 325 28 41.2 50 63-64 40-56 26.4
325*325*23 325 23 49.8 55 49-53 37-41 25.4
350*350*35 350 25 43 48 52-54 41-50 18.7
400*400*23 400 23 40.7 41 50-54 35-48 19
400*400*18 400 18 51.3 46 36-40 28-30 20
500*500*18 500 18 41.7 33 36-40 23-29 15.3



304N Stainless Steel Screen Printing Mesh , Plain Weave Fabric Mesh Screen

304N Stainless Steel Screen Printing Mesh , Plain Weave Fabric Mesh Screen
