Multi Function 16T-100 Mesh 110 Screen Printing Mesh For Electronic Components Printing

Multi Function 16T-100 Mesh 110 Screen Printing Mesh For Electronic Components Printing
Multi Function 16T-100 Mesh 110 Screen Printing Mesh For Electronic Components Printing Multi Function 16T-100 Mesh 110 Screen Printing Mesh For Electronic Components Printing Multi Function 16T-100 Mesh 110 Screen Printing Mesh For Electronic Components Printing

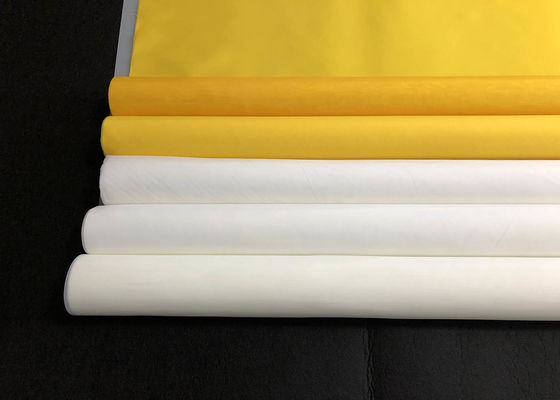

Large Image :  Multi Function 16T-100 Mesh 110 Screen Printing Mesh For Electronic Components Printing

Product Details:
Place of Origin: Hebei ,China (Mainland)
Brand Name: R&K
Certification: SGS,FDA,MSDS
Model Number: R&K-LSS5
Payment & Shipping Terms:
Minimum Order Quantity: 100 meters
Price: negotiation
Packaging Details: Poly bag inside and the carton box outside.
Delivery Time: within 10-15days.
Payment Terms: L/C, T/T, Western Union,Paypla,Trade asscurance,Credit Card
Supply Ability: 2000 meter per week
Detailed Product Description
Material: 100% Monofilament Polyester Aperture Size: 40-42micron
Roll Width: Max Width 3.05meter Standard Width: 105cm/115cm/145cm/165cm/230cm/330cm/360cm
Weave Style: Plain Weave Inventory: We Have In Stock Now
High Light:

110 mesh fabric

,

110 mesh screen

Multi Function 16T-100 Mesh 110 Screen Printing Mesh For Electronic Components Printing





110 Screen Printing Mesh Description :



The manufacture process of the screen printing mesh is to begain with Yarn,and then Warping the yarn,and drawing in heddle then drawing in reed .next weaving with machine.next washing the wire mesh,because it is soft ao we must to heat treatment it ,in order to settting it.The last process is product inspection. For quality assurance we must check the finished product.finally the product is finished.



Material 100% monofilament polyester
Roll width Max width 3.05meter
Mesh count 195 mesh/inch (77T/ cm)
Weave style Plain weave
Color white,yellow
Monofilament Yes



110 Screen Printing Mesh Specification


Mesh Count
Diameter
(Mesh/inch μm)
Mesh
Count
(Mesh
/Inch)
Weave Aperture
(μm)
Thread
Diameter
(μm)
Opening
(%)
Thickness(μm) Thickness
Tollerance
(+/- μm)
Theoretical
lnk(cm3/m2)
Weight
(g/m2)
13-150PW(SL) 33 1:1 619 150 64 300 14 128 60
21-80pw(S) 55 1:1 296 80 69 120 9 79 35
21-150PW(SL) 55 1:1 326 150 46 260 14 118 121
24-100PW(T) 60 1:1 316 100 57 136 11 65 81
28-140PW(SL) 70 1:1 217 140 40 195 13 76 125
32-55PW(S) 81 1:1 257 55 67 103 6 67 28
32-64PW(S) 81 1:1 248 64 63 95 6 56 32
32-100PW(T) 81 1:1 212 100 45 165 8 73 75
36-90PW(T) 92 1:1 183 90 44 150 8 65 68
39-55PW(S) 100 1:1 177 55 56 88 6 55 30
40-80PW(T) 103 1:1 166 80 44 133 7 59 60
43-80PW(T) 110 1:1 149 80 41 130 7 53 64
47-45PW(S) 120 1:1 166 45*2 61 80 6 42 40
47-55PW(S) 120 1:1 152 55 51 88 6 48 34
48-70PW(T) 122 1:1 133 70 41 115 6 47 55
53-45PW(S) 135 1:1 143 45*2 57 79 7 41 46
53-55PW(S) 135 1:1 133 55 50 86 6 42 40
54-64PW(T) 137 1:1 115 64 39 100 5 39 51
54-70(PW)HD 137 1:1 109 70 35 116 6 40 62
61-64PW(T) 155 1:1 90 64 31 101 5 30 58
64-55PW(S) 160 1:1 98 55 38 98 5 36 48
64-64PW(T) 160 1:1 85 64 30 115 6 34 61
68-55PW(S) 175 1:1 85 55 34 85 4 28 48
68-64PW(T) 175 1:1 78 64 28 105 5 30 65
72-48PW(S) 182 1:1 90 48 36 78 5 33 39


110 Screen Printing Mesh Features:



1. Faster turnaround time from the screen room to the pressroom;
2. Good diathermancy;
3. High air permeability;
4. Acid resistance and Alkali resistance;
5. Long working life;
6. Hard wear;
7. Three factories for manufacturing;
8. Imported weaving machines from Switzerland and Italy;

9. Low enlongation;

10. Acid resistant;

11. Improved fabric strength;



110 Screen Printing Mesh Applications:

  • Ceramic Printing
  • Glass Printing
  • Textile Printing
  • Electronic Comeponeents Printing
  • PCB printing
  • Solar Printing
  • Touch Printing

Multi Function 16T-100 Mesh 110 Screen Printing Mesh For Electronic Components Printing 0
