Product Details:
Payment & Shipping Terms:
|
Material: | 316 | Usage: | Gas Filtration |
---|---|---|---|
Weave Style: | Plain Weave | Advantage: | High Strength |
Type: | Wire Cloth | Hole Shape: | Square Hole |
High Light: | ss316 Wire Mesh,sgs stainless steel wire mesh,2X2 stainless steel wire mesh |

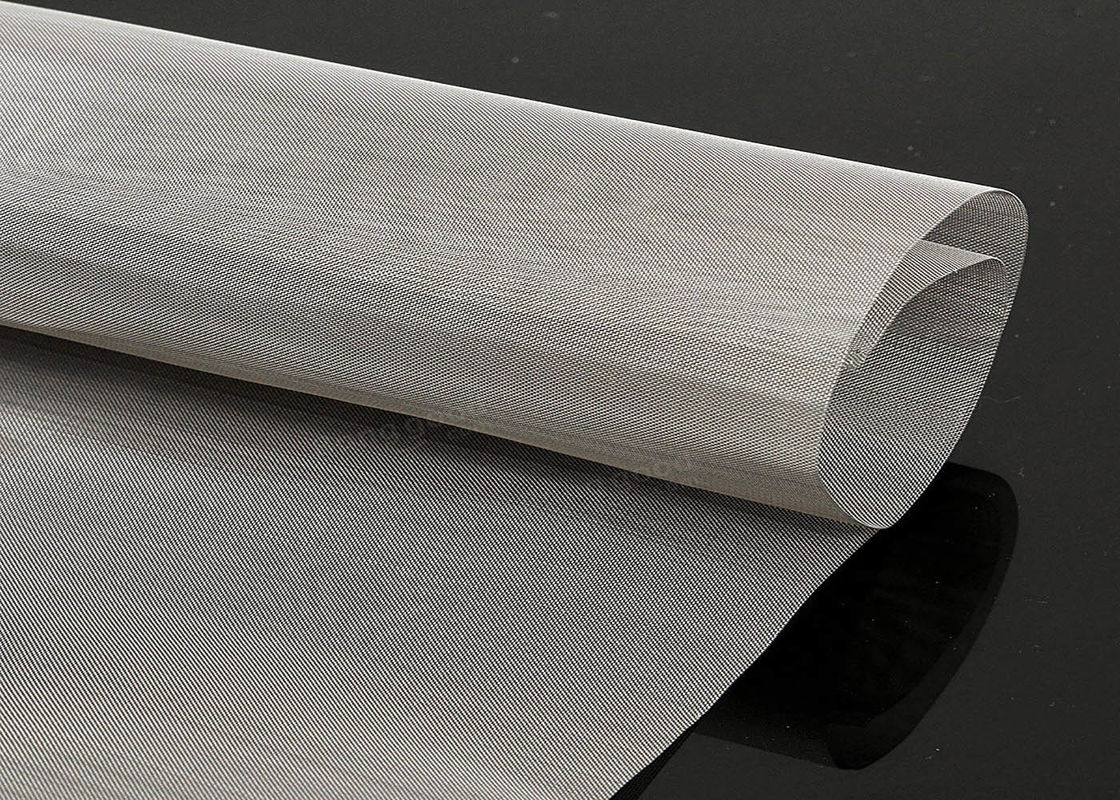

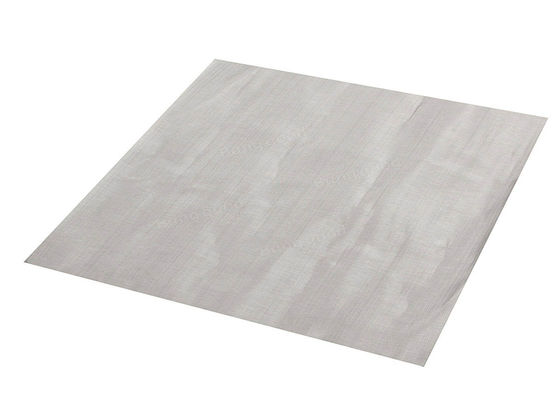

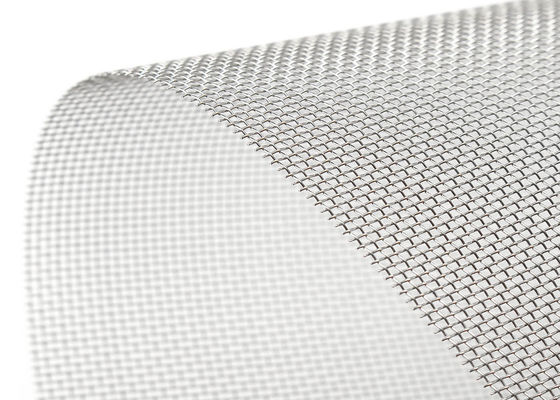

316 Stainless Steel Wire Cloth Mesh Stainless Steel Wire And Mesh Screen For Gas Filtration
Description:
Stainless steel wire mesh is made of high-quality stainless steel wire, molded under specific temperature conditions, and then drawn into the provided wire by a wire drawing machine. After that, the machine is woven into a net.
Features:
The stainless steel wire mesh has precise structure, uniform mesh, good mesh filtration precision, wear resistance, high temperature resistance, acid resistance, and corrosion resistance.
Application:
Stainless steel woven wire mesh can be used as a woven wire mesh for filtering liquids, solids and gases in the filtration industry, such as filter discs, filter tubes, immersion filter baskets, test screens, filter elements or filters. Stainless steel mesh is used for screen filtration under acidic and alkaline conditions. It is widely used in mud mesh in petroleum industry, filter mesh in chemical fiber industry and pickling mesh in electroplating industry. In addition, stainless steel wire mesh is also used in the construction industry, sand filtration, liquid and gas filtration.
Parameter
mesh | Wire Diameter | Aperture | Open Area | Weight | ||
Inch | MM | Inch | MM | (%) | (kg /Square meter) | |
1x1 | 0.08 | 2.03 | 0.92 | 23.37 | 92 | 2 |
2X2 | 0.063 | 1.6 | 0.437 | 11.1 | 87.4 | 2.5 |
3X3 | 0.054 | 1.37 | 0.279 | 7.09 | 83.8 | 2.7 |
4X4 | 0.047 | 1.19 | 0.203 | 5.16 | 81.2 | 2.7 |
5X5 | 0.041 | 1.04 | 0.159 | 4.04 | 79.5 | 2.6 |
8X8 | 0.02 | 0.5 | 0.105 | 2.675 | 71 | 1 |
9X9 | 0.02 | 0.5 | 0.091 | 2.32 | 67.7 | 1.1 |
10X10 | 0.025 | 0.64 | 0.075 | 1.91 | 74.9 | 2 |
12X12 | 0.02 | 0.508 | 0.063 | 1.6 | 75.9 | 1.5 |
12X12 | 0.022 | 0.55 | 0.062 | 1.567 | 54.8 | 1.815 |
14X14 | 0.02 | 0.508 | 0.051 | 1.3 | 71.9 | 1.8 |
14X14 | 0.0177 | 0.45 | 0.054 | 1.36 | 75.14 | 1.417 |
16X16 | 0.016 | 0.4 | 0.047 | 1.188 | 55 | 1.28 |
16X16 | 0.018 | 0.457 | 0.0445 | 1.13 | 71.2 | 1.6 |
18X18 | 0.017 | 0.432 | 0.0386 | 0.98 | 69.4 | 1.6 |
20X20 | 0.02 | 0.24 | 0.03 | 0.76 | 76 | 0.56 |
20X20 | 0.016 | 0.33 | 0.034 | 0.86 | 72.2 | 1.1 |
20X20 | 0.014 | 0.35 | 0.036 | 0.92 | 52.5 | 1.225 |
20X20 | 0.016 | 0.4 | 0.034 | 0.87 | 46.9 | 1.6 |
20X20 | 0.0177 | 0.45 | 0.0322 | 0.82 | 41.7 | 2.025 |
22X22 | 0.012 | 0.3 | 0.034 | 0.854 | 54.76 | 0.99 |
24X24 | 0.014 | 0.35 | 0.028 | 0.708 | 44.77 | 1.47 |
30X30 | 0.014 | 0.35 | 0.0195 | 0.5 | 34.6 | 1.84 |
30X30 | 0.012 | 0.305 | 0.0213 | 0.54 | 63.9 | 1.4 |
30X30 | 0.0094 | 0.24 | 0.0243 | 0.62 | 72.1 | 0.84 |
35X35 | 0.0079 | 0.2 | 0.021 | 0.526 | 52.5 | 0.7 |
35X35 | 0.0098 | 0.25 | 0.0187 | 0.475 | 42.92 | 1.09 |
40X40 | 0.0079 | 0.2 | 0.017 | 0.435 | 46.9 | 0.8 |
40X40 | 0.01 | 0.254 | 0.015 | 0.38 | 59.9 | 1.3 |
40X40 | 0.014 | 0.35 | 0.011 | 0.285 | 20.14 | 2.45 |
50X50 | 0.0055 | 0.14 | 0.0145 | 0.368 | 72.4 | 0.48 |
50X50 | 0.0079 | 0.2 | 0.012 | 0.308 | 36.76 | 1 |
60X60 | 0.0047 | 0.12 | 0.012 | 0.303 | 71.6 | 0.42 |
60X60 | 0.0059 | 0.15 | 0.0107 | 0.273 | 64.5 | 0.65 |
60X60 | 0.007 | 0.18 | 0.0096 | 0.243 | 33 | 0.972 |
80X80 | 0.047 | 0.12 | 0.0078 | 0.1975 | 38.7 | 0.576 |
80X80 | 0.0055 | 0.14 | 0.0069 | 0.117 | 45.5 | 0.76 |
100X100 | 0.0039 | 0.1 | 0.006 | 0.154 | 36.76 | 0.5 |
100X100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 55.1 | 0.59 |
100X100 | 0.004 | 0.102 | 0.006 | 0.152 | 59.8 | 0.49 |
120X120 | 0.0028 | 0.07 | 0.0057 | 0.147 | 67.7 | 0.29 |
120X120 | 0.003 | 0.08 | 0.0052 | 0.132 | 38.7 | 0.384 |
150X150 | 0.0024 | 0.06 | 0.0043 | 0.11 | 64.7 | 0.26 |
150X150 | 0.0028 | 0.07 | 0.0039 | 0.1 | 58.8 | 0.38 |
165X165 | 0.0019 | 0.05 | 0.0041 | 0.104 | 67.5 | 0.2 |
180X180 | 0.0019 | 0.05 | 0.0035 | 0.091 | 64.5 | 0.22 |
180X180 | 0.0024 | 0.06 | 0.0031 | 0.081 | 57.4 | 0.32 |
200X200 | 0.0019 | 0.05 | 0.003 | 0.077 | 60.6 | 0.24 |
200X200 | 0.0024 | 0.06 | 0.0026 | 0.067 | 52.7 | 0.35 |
250X250 | 0.0016 | 0.04 | 0.0024 | 0.0616 | 60.6 | 0.2 |
270X270 | 0.0016 | 0.04 | 0.0021 | 0.054 | 57.4 | 0.21 |
300X300 | 0.0016 | 0.04 | 0.0018 | 0.045 | 53.5 | 0.23 |
325X325 | 0.0014 | 0.035 | 0.0017 | 0.0432 | 55.3 | 0.2 |
400X400 | 0.0012 | 0.03 | 0.0013 | 0.0335 | 52.7 | 0.18 |
500X500 | 0.0009 | 0.025 | 0.001 | 0.0258 | 50.7 | 0.15 |
500X500 | 0.0012 | 0.03 | 0.0008 | 0.0208 | 16.76 | 0.225 |
635X635 | 0.0007 | 0.018 | 0.0008 | 0.022 | 55 | 0.1 |
