100 % Polyester Yarn Screen Printing Mesh Material High Tension White Color

Large Image : 100 % Polyester Yarn Screen Printing Mesh Material High Tension White Color

Product Details:

Place of Origin:	Hebei , China
Brand Name:	R&K
Certification:	FDA,MSDS,ISO
Model Number:	T845

Payment & Shipping Terms:

Minimum Order Quantity:	100 meter
Price:	negotiation
Packaging Details:	plastic bag inside, carton case outside,5-10rolls in one carton
Delivery Time:	5-10 days
Payment Terms:	L/C,T/T,Western Union,Paypal,Trade Assurance
Supply Ability:	3000 meters per week

Contact Now

Detailed Product Description

Material:	100 % Polyester Yarn	Weave:	1:1
Standard Width:	41 Inch,45 Inch,65 Inch,74 Inch,87 Inch,142inch	Standard Length:	50/80/100/300/500/1000meters
Mesh Count:	30 Mesh - 420 Mesh	Thread Diamdameter:	30-200 Micron
Brand Name:	R&K	Place Of Original:	Hebei,China
Highlight:	polypropylene filter mesh , polyester screen mesh

100 % Polyester Yarn Screen Printing Mesh Material High Tension White Color

Description of the screen printing mesh:

Under tensile enlongation is small,high flexibility,single wire mesh is suitable for precision printing.The tensile strength,structural strength resilience and resistant force are better.Wish sufficient drug resistant ,especially the resistant to acid,organic solvent resistance is strong.like nylon renewable use. Low moisture absorption,amost effected by humidity. High heat resistance than nylon,influenced by ultraviolet(UV) smaller than nylon.

Characteristic of the Screen printing mesh:

1) Minimum tension loss during stretching.

2) Due to the stability of fabric tension, the registration rate is improved.

3) Good anti-static.

4) No surface treatment.

5) High tension threshold and breaking point.

6) High modulus, low elongated single filament polyester yarn.

Specification of the screen printing mesh:

Mesh Count Diameter (Mesh/inch μm)	Mesh Count (Mesh /inch)	We ave	Aper ture (μm)	Opening (%)	Weight	Thickness (μm)	Thickness Tollerance (+/- μm)	Theoretical lnk(g/m^)
13-150PW(SL)	33	1:1	619	64	60	300	14	128
21-80pw(S)	55	1:1	296	69	35	120	9	79
21-150PW(SL)	55	1:1	326	46	121	260	14	118
24-100PW(T)	60	1:1	316	57	81	136	11	65
28-140PW(SL)	70	1:1	217	40	125	195	13	76
32-55PW(S)	81	1:1	257	67	28	103	6	67
32-64PW(S)	81	1:1	248	63	32	95	6	56
32-100PW(T)	81	1:1	212	45	75	165	8	73
36-90PW(T)	92	1:1	183	44	68	150	8	65
39-55PW(S)	100	1:1	177	56	30	88	6	55
40-80PW(S)	103	1:1	166	44	60	133	7	59

100 % Polyester Yarn Screen Printing Mesh Material High Tension White Color 0

Application of the screen printing mesh:

For Textile printing;
For Garment(T-shirt) printing;
For CD/DVD printing;
For Glass printing ;
For Ceramic printing ;
For Electronics components printing;
And so on...

The screen printing mesh is also used well in filteration industry,such as ink filter,aviation,aerospace,petrochemical and other high-tech fields of melt filter etc.

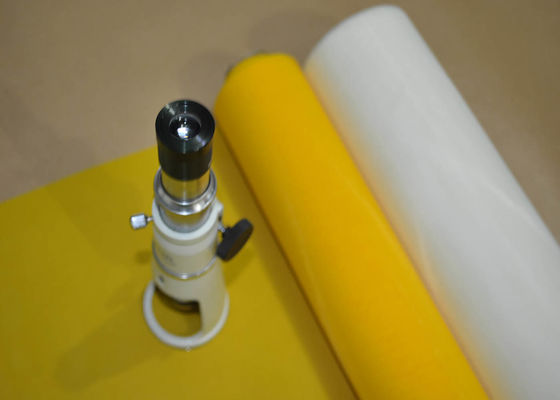

Photo of the screen printing mesh:

100 % Polyester Yarn Screen Printing Mesh Material High Tension White Color 1
