HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
Product Details:
Payment & Shipping Terms:
|
Material: | 100%Polyester | Weave Type: | Plain |
---|---|---|---|
Color: | White,Yellow | Width: | 1.15 M,1.65 M,1.45 M |
Length: | 50 M/rool,100 M/roll | Mesh Count: | 80 Mesh/inch |
High Light: | polyester filter fabric,polyester screen mesh |

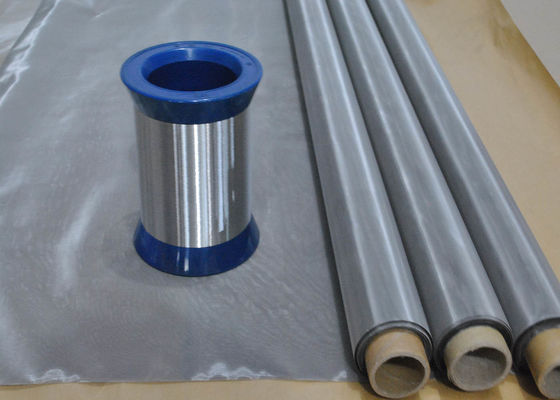

100% Polyester 140 Micron Screen Stainless Steel Mesh Fabric High Air Permeability
Description of stainless steel wire mesh:
Silk screen printing mesh/monofilament polyester bolting cloth monofilament polyester fabric.
Features& advantages of stainless steel silk screen printing mesh:
1. Faster turnaround time from the screen room to the pressroom.
2. Good diathermancy.
3. High air permeabilty.
4. Acid resistance and Alkali resistance.
5. Long working life.
Applications of stainless steel silk screen printing mesh:
140micron stainless steel screen printing mesh DPP Silk Screen Printing Material-polyester Printing mesh is woven from yarn that is extruded from heated polyester into a single strand.Widely used in textile printing,plate making printing,electronic printing,ceramics,glass,stained paper printing.
Specification:
Specification | Mesh/ inch |
Wire Dia (μm) |
Open area Ratio(%) |
Apereture (μm) |
Apereture (μm) |
Calendered Thickness (μm) |
Theoretical lnk(cm^/m^) |
40*40*160 | 40 | 160 | 56 | 475 | 300-320 | As order | 179.1 |
60*60*120 | 60 | 120 | 51.3 | 303 | 230-245 | As order | 123.2 |
80*80*120 | 80 | 120 | 39 | 198 | 235-245 | As order | 92.9 |
80*80*90 | 80 | 90 | 52 | 228 | 175-180 | As order | 103 |
80*8*50 | 80 | 50 | 71 | 268 | 95-100 | As order | 78 |
100*100*100 | 100 | 100 | 36.8 | 154 | 195-205 | As order | 77.2 |
120*120*80 | 120 | 80 | 39 | 132 | 155-165 | As order | 65.8 |
150*150*60 | 150 | 60 | 41.7 | 109 | 115-124 | As order | 50 |
165*165*35 | 165 | 35 | 60 | 119 | 70-75 | As order | 48 |
165*165*45 | 165 | 45 | 50.1 | 109 | 88-93 | As order | 45.1 |
165*165*50 | 165 | 50 | 45.6 | 104 | 97-105 | As order | 45.6 |
180*180*45 | 180 | 45 | 46.4 | 96 | 88-93 | As order | 41.5 |
180*180*50 | 180 | 50 | 42 | 91 | 98-104 | As order | 41.7 |
200*200*40 | 200 | 40 | 46.9 | 87 | 82-84 | As order | 43 |
200*200*50 | 200 | 50 | 37 | 77 | 98-103 | As order | 42 |
230*230*35 | 230 | 35 | 46.7 | 75 | 72-76 | 50-67 | 37 |
250*250*40 | 250 | 40 | 36.8 | 62 | 82-86 | 50-80 | 34 |
250*250*30 | 250 | 30 | 49.7 | 72 | 64-68 | 40-58 | 30 |
250*250*35 | 250 | 35 | 43 | 67 | 76-78 | 57-70 | 32 |
270*270*35 | 270 | 35 | 39.4 | 59 | 76-80 | 58-70 | 30 |
300*300*30 | 300 | 30 | 41.7 | 55 | 66-68 | 4-59 | 28 |
325*325*30 | 325 | 30 | 38 | 48 | 66-68 | 45-60 | 24 |
325*325*28 | 325 | 28 | 41.2 | 50 | 63-64 | 40-56 | 26.4 |
325*325*23 | 325 | 23 | 49.8 | 55 | 49-53 | 37-41 | 25.4 |
350*350*35 | 350 | 25 | 43 | 48 | 52-54 | 41-50 | 18.7 |
400*400*23 | 400 | 23 | 40.7 | 41 | 50-54 | 35-48 | 19 |
400*400*18 | 400 | 18 | 51.3 | 46 | 36-40 | 28-30 | 20 |
500*500*18 | 500 | 18 | 41.7 | 33 | 36-40 | 23-29 | 15.3 |
