Low Elasticity Yellow 61T Screen Fabric Mesh For Liquid Crystal Display

large.img.alt
small.img.alt small.img.alt small.img.alt

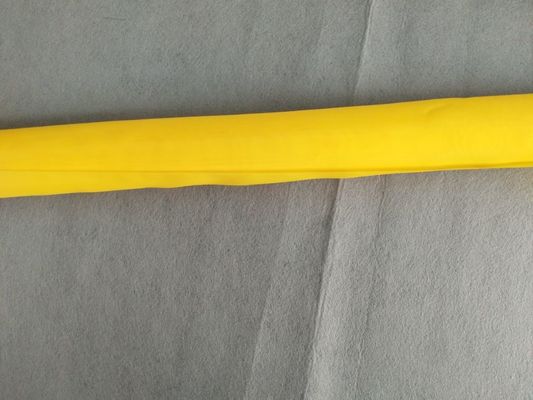

Large Image :  Low Elasticity Yellow 61T Screen Fabric Mesh For Liquid Crystal Display

Product Details:
Place of Origin: Hebei,China
Brand Name: R&K
Certification: FDA
Model Number: R&K-LSS
Payment & Shipping Terms:
Minimum Order Quantity: 50meters
Price: negotiation
Packaging Details: plastic bag inside, carton case outside,5-10rolls in one carton
Delivery Time: 5-8 work days
Payment Terms: L/C,T/T,Western Union,Paypal,Trade Assurance
Supply Ability: 3000 meters per week
Detailed Product Description
Material: 100% Polyester Name: Low Elasticity Yellow 61T 110 Screen Printing Mesh For Liquid Crystal Display
Monofilament: Yes Application: For Liquid Crystal Display
Thread Diameter: 64um Color: Yellow
High Light:

110 mesh fabric

,

110 mesh screen

Low Elasticity Yellow 61T 110 Screen Printing Mesh For Liquid Crystal Display





Description of the 110 screen printing mesh:



Low elasticity yellow 61T 110 screen printing mesh is plain weave mesh and used for Liquid Crystal Display.Hebei Reking Wire Mesh Co.,ltd has made these products for 20 years. We registered R&K as treadmark and we have registered intellectual propery protection in the foreign key sales areas.



Under tensile enlongation is small,high flexibility,single wire mesh is suitable for precision printing.The tensile strength,structural strength resilience and resistant force are better.Wish sufficient drug resistant ,especially the resistant to acid,organic solvent resistance is strong.like nylon renewable use. Low moisture absorption,amost effected by humidity. High heat resistance than nylon,influenced by ultraviolet(UV) smaller than nylon.



Name Low Elasticity Yellow 61T 110 Screen Printing Mesh For Liquid Crystal Display
Material 100% polyester
Monofilament Yes
Application For Liquid Crystal Display
Thread Diameter 64um



Features of polyester screen printing mesh:



1. Faster turnaround time from the screen room to the pressroom;
2. Good diathermancy;
3. High air permeability;
4. Acid resistance and Alkali resistance;
5. Long working life;
6. Hard wear;
7. Three factories for manufacturing;
8. Imported weaving machines from Switzerland and Italy;

9. Low enlongation;

10. Acid resistant;



Specification of polyester screen printing mesh:


Mesh Count
Diameter
(Mesh/inch μm)
Mesh
Count
(Mesh
/Inch)
Weave Aperture
(μm)
Thread
Diameter
(μm)
Opening
(%)
Thickness(μm) Thickness
Tollerance
(+/- μm)
Theoretical
lnk(cm3/m2)
Weight
(g/m2)
13-150PW(SL) 33 1:1 619 150 64 300 14 128 60
21-80pw(S) 55 1:1 296 80 69 120 9 79 35
21-150PW(SL) 55 1:1 326 150 46 260 14 118 121
24-100PW(T) 60 1:1 316 100 57 136 11 65 81
28-140PW(SL) 70 1:1 217 140 40 195 13 76 125
32-55PW(S) 81 1:1 257 55 67 103 6 67 28
32-64PW(S) 81 1:1 248 64 63 95 6 56 32
32-100PW(T) 81 1:1 212 100 45 165 8 73 75
36-90PW(T) 92 1:1 183 90 44 150 8 65 68
39-55PW(S) 100 1:1 177 55 56 88 6 55 30
40-80PW(T) 103 1:1 166 80 44 133 7 59 60
43-80PW(T) 110 1:1 149 80 41 130 7 53 64
47-45PW(S) 120 1:1 166 45*2 61 80 6 42 40
47-55PW(S) 120 1:1 152 55 51 88 6 48 34
48-70PW(T) 122 1:1 133 70 41 115 6 47 55
53-45PW(S) 135 1:1 143 45*2 57 79 7 41 46
53-55PW(S) 135 1:1 133 55 50 86 6 42 40
54-64PW(T) 137 1:1 115 64 39 100 5 39 51
54-70(PW)HD 137 1:1 109 70 35 116 6 40 62
61-64PW(T) 155 1:1 90 64 31 101 5 30 58
64-55PW(S) 160 1:1 98 55 38 98 5 36 48
64-64PW(T) 160 1:1 85 64 30 115 6 34 61
68-55PW(S) 175 1:1 85 55 34 85 4 28 48
68-64PW(T) 175 1:1 78 64 28 105 5 30 65
72-48PW(S) 182 1:1 90 48 36 78 5 33 39
72-55PW(T) 182 1:1 85 55 30 90 5 27 51
77-48PW(S) 195 1:1 77 48 35 80 4 28 42
77-55PW(T) 195 1:1 67 55 27 88 4 24 55
80-48PW(T) 200 1:1 72 48 33 74 4 25 56
90-48PW(T) 230 1:1 56 48 25 78 4 19 50
100-40PW(T) 255 1:1 58 40 33 63 3 21 37
110-40PW(HD) 280 1:1 48 40 27 64 3 17 40
120-31PW(S) 305 1:1 49 31 35 49 3 17 26
120-34PW(T) 305 1:1 45 34 30 55 3 16 35
120-40PW(HD) 305 1:1 37 40 20 63 3 13 44
130-34PW(T) 330 1:1 40 34 27 55 3 15 37
140-31PW(S) 355 1:1 36 31 26 48 2 12 30
140-34PW(T) 355 1:1 31 34 20 53 3 10 39
140-34TW(T) 355 1:1 33 34 21 56 3 12 41
150-31PW(S) 380 1:1 32 31 23 49 3 11 32
150-34PW(T) 380 1:1 23 34 13 55 3 6.5 42
165-34PW(S) 420 1:1 23 31 15 48 2 7 36



110 sceen printing mesh manufacture proceess:



Raw material(Yarn)→ Warpping→Drawing in Heddle→Drawing in Reed→Weaving→Wahsing→Heat setting Treatment→Product Inspection→Product.



Application of the 110 screen printing mesh:



Ceramic Printing

Glass Printing

Textile Printing

Electronic Comeponeents Printing

PCB printing

Solar Printing

Touch Printing



Pre sale service:

  • Inquiry and consulting support.
  • Sample testing support.
  • View our Factory.

After sale service

  • Sending tracking number soon.
  • Training how to use it
  • Changing for new if dissatisfaction
