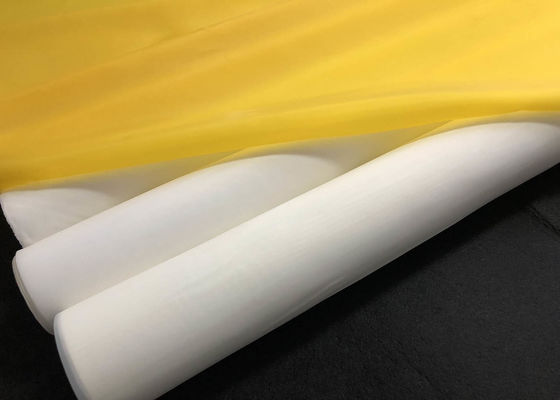

High Flexibility 110 Screen Printing Mesh With SGS / FDA / MSDS Certificate White Color
Description of the 110 screen printing mesh:
Under tensile enlongation is small,high flexibility,single wire mesh is suitable for precision printing.The tensile strength,structural strength resilience and resistant force are better.Wish sufficient drug resistant ,especially the resistant to acid,organic solvent resistance is strong.like nylon renewable use. Low moisture absorption,amost effected by humidity. High heat resistance than nylon,influenced by ultraviolet(UV) smaller than nylon.
Our machine is imported from German,Sweden Austrian,Japan. we use the high quality imported looms to weave our product.
We are the manufacturer for this polyester mesh with more than 25 years, we use the NANTONG yarn to weave it, we have more than about 100sets machine to make. this mesh is widely used in CD/DVD Printing,ceramic decorative printing,textile printing,glass ,metal and so on.
| Material |
100% polyester |
| Roll width |
Max width 3.05meter |
| Application |
For Liquid Crystal Display |
| Brand name |
R7K |
| Color |
white,yellow |
Roll width: 41" , 45'' ,50'' , 53'' , 57'', 65'' , 74'', and so one,the max width we can do 3.69meter.
Roll length:50m/80m/100m/200m/300m/500m/1000m
Features of the 110 screen printing mesh:
1. Faster turnaround time from the screen room to the pressroom;
2. Good diathermancy;
3. High air permeability;
4. Acid resistance and Alkali resistance;
5. Long working life;
6. Hard wear;
7. Three factories for manufacturing;
8. Imported weaving machines from Switzerland and Italy;
9. Low enlongation;
10. Acid resistant;
11. Improved fabric strength;
12. Fast printing speed;
13. Fast tension stabilization;
14. Less tension loss during the stretching process;
15. Improved registration due to stable tension.
Specification of polyester screen printing mesh:
Mesh Count
Diameter
(Mesh/inch μm) |
Mesh
Count
(Mesh
/Inch) |
Weave |
Aperture
(μm) |
Thread
Diameter
(μm) |
Opening
(%) |
Thickness(μm) |
Thickness
Tollerance
(+/- μm) |
Theoretical
lnk(cm3/m2) |
Weight
(g/m2) |
| 21-80pw(S) |
55 |
1:1 |
296 |
80 |
69 |
120 |
9 |
79 |
35 |
| 32-55PW(S) |
81 |
1:1 |
257 |
55 |
67 |
103 |
6 |
67 |
28 |
| 32-64PW(S) |
81 |
1:1 |
248 |
64 |
63 |
95 |
6 |
56 |
32 |
| 36-90PW(T) |
92 |
1:1 |
183 |
90 |
44 |
150 |
8 |
65 |
68 |
| 39-55PW(S) |
100 |
1:1 |
177 |
55 |
56 |
88 |
6 |
55 |
30 |
| 40-80PW(T) |
103 |
1:1 |
166 |
80 |
44 |
133 |
7 |
59 |
60 |
| 43-80PW(T) |
110 |
1:1 |
149 |
80 |
41 |
130 |
7 |
53 |
64 |
| 47-45PW(S) |
120 |
1:1 |
166 |
45*2 |
61 |
80 |
6 |
42 |
40 |
| 47-55PW(S) |
120 |
1:1 |
152 |
55 |
51 |
88 |
6 |
48 |
34 |
| 48-70PW(T) |
122 |
1:1 |
133 |
70 |
41 |
115 |
6 |
47 |
55 |
| 53-45PW(S) |
135 |
1:1 |
143 |
45*2 |
57 |
79 |
7 |
41 |
46 |
| 53-55PW(S) |
135 |
1:1 |
133 |
55 |
50 |
86 |
6 |
42 |
40 |
| 54-64PW(T) |
137 |
1:1 |
115 |
64 |
39 |
100 |
5 |
39 |
51 |
| 61-64PW(T) |
155 |
1:1 |
90 |
64 |
31 |
101 |
5 |
30 |
58 |
| 64-55PW(S) |
160 |
1:1 |
98 |
55 |
38 |
98 |
5 |
36 |
48 |
| 64-64PW(T) |
160 |
1:1 |
85 |
64 |
30 |
115 |
6 |
34 |
61 |
| 68-55PW(S) |
175 |
1:1 |
85 |
55 |
34 |
85 |
4 |
28 |
48 |
| 68-64PW(T) |
175 |
1:1 |
78 |
64 |
28 |
105 |
5 |
30 |
65 |
| 72-48PW(S) |
182 |
1:1 |
90 |
48 |
36 |
78 |
5 |
33 |
39 |
| 72-55PW(T) |
182 |
1:1 |
85 |
55 |
30 |
90 |
5 |
27 |
51 |
| 77-48PW(S) |
195 |
1:1 |
77 |
48 |
35 |
80 |
4 |
28 |
42 |
| 77-55PW(T) |
195 |
1:1 |
67 |
55 |
27 |
88 |
4 |
24 |
55 |
| 80-48PW(T) |
200 |
1:1 |
72 |
48 |
33 |
74 |
4 |
25 |
56 |
| 90-48PW(T) |
230 |
1:1 |
56 |
48 |
25 |
78 |
4 |
19 |
50 |
| 100-40PW(T) |
255 |
1:1 |
58 |
40 |
33 |
63 |
3 |
21 |
37 |
| 110-40PW(HD) |
280 |
1:1 |
48 |
40 |
27 |
64 |
3 |
17 |
40 |
| 120-31PW(S) |
305 |
1:1 |
49 |
31 |
35 |
49 |
3 |
17 |
26 |
| 120-34PW(T) |
305 |
1:1 |
45 |
34 |
30 |
55 |
3 |
16 |
35 |
| 120-40PW(HD) |
305 |
1:1 |
37 |
40 |
20 |
63 |
3 |
13 |
44 |
| 130-34PW(T) |
330 |
1:1 |
40 |
34 |
27 |
55 |
3 |
15 |
37 |
| 140-31PW(S) |
355 |
1:1 |
36 |
31 |
26 |
48 |
2 |
12 |
30 |
| 140-34PW(T) |
355 |
1:1 |
31 |
34 |
20 |
53 |
3 |
10 |
39 |
| 140-34TW(T) |
355 |
1:1 |
33 |
34 |
21 |
56 |
3 |
12 |
41 |
| 150-31PW(S) |
380 |
1:1 |
32 |
31 |
23 |
49 |
3 |
11 |
32 |
| 150-34PW(T) |
380 |
1:1 |
23 |
34 |
13 |
55 |
3 |
6.5 |
42 |
| 165-34PW(S) |
420 |
1:1 |
23 |
31 |
15 |
48 |
2 |
7 |
36 |
Application of the 110 screen printing mesh:
For Textile printing;
For Garment(T-shirt) printing;
For CD/DVD printing;
For Glass printing ;
For Ceramic printing ;
For Electronics components printing;
And so on...
