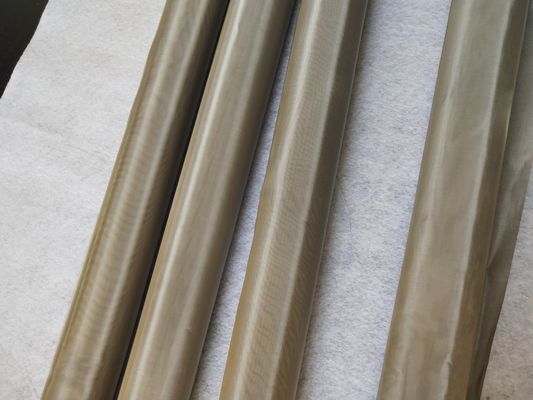

Stainless Steel Printing Mesh Fabric SUS 304N 316 Screen Printing Materials
Descriptions of stainless steel screen printing mesh:
stainless steel screen printing mesh is woven by monofilament stainless steel wire ,plain weave,it is suitable to severe enviroment especially,also, and it is suitable to multi-color overprint and printing batch.it can work normaliy under 480 degree,and the methods printing is flexible and diverse.it with the best raw metarial.
Material: SUS304N,304HPS,316L.the other material is available.
Mesh count: 40-500 Mesh/Inch
Roll Length: 30m in general per roll or follow your request.
Aperature style: Square hole.
Thickness: 36-240 micron meter,special thickness is different according to the meshes of the wire cloth,the calendared thickness can be 28-240 micron.
Weave: Plain weave
Features of stainless steel screen printing mesh:
a. acid and alkali resistance
b. high tension and low elongation
c. corrosion and abrasion resistance
d. good permeability and super pricision
e. high flexibility at extreme tension and non-electrostatic and ensure the safety of the printing
f. special printing performance such as good solvent resistance and heat-melting resistance, and so forth.
Specifications of stainless steel screen printing mesh:
|
Mesh/Inch
|
Wire Diameter
(μm)
|
Aperture(μm)
|
Open Area
(%)
|
Thickness(μm)
|
Theoretical Ink
(cm3/m2)
|
|
40
|
160
|
475
|
56.0
|
300-320
|
179.1
|
|
60
|
120
|
303
|
51.3
|
230-245
|
123.21
|
|
80
|
50
|
268
|
71.0
|
95-100
|
78.0
|
|
80
|
90
|
228
|
52.0
|
175-180
|
103.0
|
|
80
|
120
|
198
|
39.0
|
235-245
|
92.9
|
|
100
|
100
|
154
|
36.8
|
195-205
|
77.2
|
|
120
|
80
|
132
|
39.0
|
155-165
|
65.8
|
|
150
|
60
|
109
|
41.7
|
115-124
|
50.0
|
|
165
|
35
|
119
|
60.0
|
70-75
|
48.0
|
|
165
|
45
|
109
|
50.1
|
88-93
|
45.1
|
|
165
|
50
|
104
|
45.6
|
97-105
|
45.6
|
|
180
|
45
|
96
|
46.4
|
88-93
|
41.5
|
|
180
|
50
|
91
|
42.0
|
98-104
|
41.7
|
|
200
|
40
|
87
|
46.9
|
82-84
|
43.0
|
|
200
|
50
|
77
|
37.0
|
98-103
|
42.0
|
|
230
|
35
|
75
|
46.7
|
72-76
|
37.0
|
|
250
|
40
|
62
|
36.8
|
82-86
|
34.0
|
|
250
|
30
|
72
|
49.7
|
64-68
|
30.0
|
|
250
|
35
|
67
|
43.0
|
76-78
|
32.0
|
|
270
|
35
|
59
|
39.4
|
76-80
|
30.0
|
|
290
|
20
|
68
|
41.7
|
43-44
|
18.0 |
|
300
|
30
|
55
|
38.0
|
66-68
|
28.0
|
|
325
|
28
|
50
|
41.2
|
63-64
|
26.4
|
|
325
|
23
|
55
|
49.8
|
49-53
|
25.4
|
|
350
|
25
|
48
|
43.0
|
52-54
|
18.7
|
|
400
|
23
|
41
|
40.7
|
50-54
|
19.0
|
Stainless steel screen printing mesh applications:
1)Architectural mesh
2)Filtration for liquid or gas
3)Fly screen/Security mesh
4)Food Processing
5)Screening/Sieving
6)Plastic & Rubber Extrusion Industry
7)Screen printing on glassware,printed circuit boards
