Product Details:
Payment & Shipping Terms:
|
Material: | Polyester Or Nylon Mesh | Thermal Screen Printing Mesh Roll Width: | 1M-3.9M |
---|---|---|---|
Thermal Screen Printing Mesh Length: | Standard Length 50/100/200/500/1000/1500meters | Mesh Count: | 255 Mesh Per Inch |
Thread Diameter: | 40 Micron | Aperture Size: | 59 - 60 Micron |
High Light: | thermal screen roll,stainless steel bolting cloth |
China Good Quality Thermal Nylon Polyester Screen Printing Mesh Suppliers

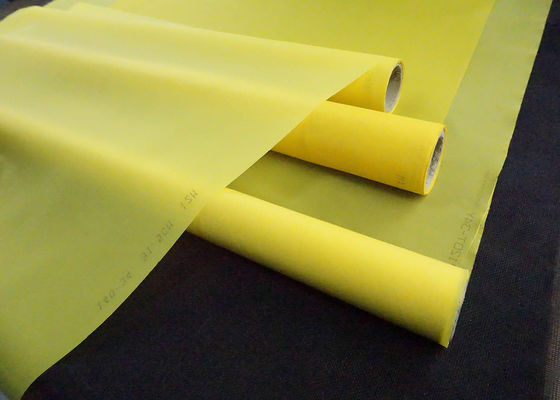

Description of the polyester thermal printing mesh:
Thermal printing mesh is plain weave mesh and used for screen printing industry.
The mesh have many different aperture and thread diameter to suit for different industry.
Details as below:
Material | 100% monofilament polyester |
Mesh count | 255 mesh per inch |
Thermal screen printing mesh Length | standard length 50/100/200/500/1000/1500meters |
Thermal screen printing mesh Roll width | 1M-3.9M |
Color | white , yellow |
Thread diameter | 40 micron |
Aperture size | 59 - 60 micron |
Quality | With high quality domestic and imported raw material,advanced weaving looms and test instruments. |
Specification For Thermal Screen Printing Mesh:
Mesh Count Diameter (Mesh/cm um) | Mesh Count (Mesh/inch) | Weave | Aperture (um) | Thread Diameter (um) | Opening (%) | Thickness (um) | Thickness Tollerance (+/- um) | Theoretical Ink (cm3/m2) | Weight (g/m2) | Tension value(N/CM) | ||
165-31PW(S) | 420 | 1:1 | 23 | 31 | 15 | 48 | 2 | 7 | 36 | 25-26 | ||
150-34PW(T) | 380 | 1:1 | 23 | 34 | 13 | 55 | 3 | 6.5 | 42 | 30-31 | ||
150-31PW(S) | 380 | 1:1 | 32 | 31 | 23 | 49 | 3 | 11 | 32 | 24-25 | ||
140-34TW(T) | 355 | 2:1 | 33 | 34 | 21 | 56 | 3 | 12 | 41 | 27-28 | ||
140-34PW(T) | 355 | 1:1 | 31 | 34 | 20 | 53 | 3 | 10 | 39 | 26-28 | ||
140-31PW(S) | 355 | 1:1 | 36 | 31 | 26 | 48 | 2 | 12 | 30 | 22-24 | ||
130-34PW(T) | 330 | 1:1 | 40 | 34 | 27 | 55 | 3 | 15 | 37 | 27-28 | ||
120-40PW(HD) | 305 | 1:1 | 37 | 40 | 20 | 63 | 3 | 13 | 44 | 33-35 | ||
120-34PW(T) | 305 | 1:1 | 45 | 34 | 30 | 55 | 3 | 16 | 35 | 25-26 | ||
120-31PW(S) | 305 | 1:1 | 49 | 31 | 35 | 49 | 3 | 17 | 26 | 20-23 | ||
110-40PW(HD) | 280 | 1:1 | 48 | 40 | 27 | 64 | 3 | 17 | 40 | 30-32 | ||
100-40PW(T) | 255 | 1:1 | 58 | 40 | 33 | 63 | 3 | 21 | 37 | 26-27 | ||
90-48PW(T) | 230 | 1:1 | 56 | 48 | 25 | 78 | 4 | 19 | 50 | 34-35 | ||
80-48PW(T) | 200 | 1:1 | 72 | 48 | 33 | 74 | 4 | 25 | 56 | 34-35 | ||
77-55PW(T) | 195 | 1:1 | 67 | 55 | 27 | 88 | 4 | 24 | 55 | 37-38 | ||
77-48PW(S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 | 42 | 34-35 | ||
72-55PW(T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 | 51 | 33-34 | ||
72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 | 32-33 | ||
68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 | 39-40 | ||
68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 | 33-34 | ||
64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 | 34-35 | ||
64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 | 33-34 | ||
61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 | 35-36 | ||
54-70PW(HD) | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 | 62 | 39-40 | ||
54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 | 33-34 | ||
53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 | 26-27 | ||
53-45PW(S) | 135 | 2:2 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 | 26-27 | ||
48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 | 34-35 | ||
47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 | 26-27 | ||
43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 | 43-44 | ||
40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 | 41-42 | ||
39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 | 39-40 | ||
36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 | 36-39 | ||
32-100PW(T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 | 35-37 | ||
32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 | 26-28 | ||
32-55PW(S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 | 24-25 | ||
28-140PW(SL) | 70 | 1:1 | 217 | 140 | 40 | 195 | 13 | 76 | 125 | / | ||
24-100PW(T) | 60 | 1:1 | 316 | 100 | 57 | 136 | 11 | 65 | 81 | / | ||
21-150PW(SL) | 55 | 1:1 | 326 | 150 | 46 | 260 | 14 | 118 | 121 | / | ||
21-80PW(S) | 55 | 1:1 | 296 | 80 | 69 | 120 | 9 | 79 | 35 | / | ||
13-150PW(SL) | 33 | 1:1 | 619 | 150 | 64 | 300 | 14 | 128 | 60 | / | ||
PW:TW:SL;S,T,HD PW:(Plain Weave);TW:(Twill Weave); S,T,HD:(thickness of Mesh) Standard Color: white and yellow, other colors on request. |
Features For Thermal Screen Printing Mesh:
Wear resistance;
Long service life;
Fast printing speed;
High tension;
Applications of the thermal screen printing mesh:
The screen printing mesh can be used for many industry.
For example as below:
T-shirt printing.
Luggage, shoes and hats screen printing.
Computer bags, handbags, shopping bags, luggage, wallets, composite packaging materials, canvas shoes, hat screen printing.
Advertising gift screen printing: mouse pad textile slippers, coasters, bar MATS, paintings, flags, umbrella screen printing.
PCB printing.
Glass ceramics printing and printing., etc.
