Product Details:
Payment & Shipping Terms:
|
Material: | Aluminum Alloy | Colour: | Silver |
---|---|---|---|
Sizes: | 35mm*35mm,28mm*28mm | Brand Name: | R&K |
Product Name: | Silk Screen Printing Aluminum Frame | Frame Style: | Quadrangle,polygon,Tian Glyph |
High Light: | polypropylene filter mesh,polyester screen mesh |
20 ×24 Inch Aluminium Silk Screen Printing Material Frames With 200 Mesh
Screen printing aluminum frame description:
The utility model has the characteristics of small deformation, light volume, rust-free and convenient movement, so the aluminum frame is the most widely used in printing plate making.Suitable for mechanical stretching
Types and characteristics of silk screen aluminum mesh frames:
The aluminum mesh frame is divided into four main profiles: hollow type, Japanese type, Tian type and cross type.
Raw Material:
AL6063, T5 Aliminum Alloy meets the standards of European RoHS.
Adhesive:
Germany Solvent Resistant Kiwo Glue.
Mesh:
Tension-stabilized and low elogation polyster mesh.
Tension:
18-22N/cm(measured by TETKO MAT 7-50N/cm Tension Meter)
Screen printing aluminum frame features:
It has light weight, wide cross section selection, high flexural strength, corrosion resistance (chemical agents, inks, solvents and detergents) and easy cleaning.
Specification of the profie:
35x35x1.2x1.4mm
35x35x1.2x1.4mm
38x38x1.4x1.6mm
38x38x1.6x1.8mm
Specification of the frame and mesh:
Suit for ceramic,printing paper,PCB manufactures,waistline manufactures ect. | |
material code | size |
B1 | 25*38*0.9MM |
B2 | 25*38*1.1MM |
B3 | 25*38*1.3MM |
B4 | 25*40*1.7MM |
B5 | 25*50*1.2MM |
B6 | 28*50*1.4MM |
B7 | 28*43*1.2MM |
B8 | 25*43*1.4MM |
B9 | 28*43*1.8MM |
B10 | 28*43*2.0MM |
B11 | 30*40*3.0MM |
B12 | 30*40*3.0MM |
B13 | 30*60*1.6MM |
B14 | 30*60*2.2MM |
B15 | 35*60*2.0MM |
40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
47-45PW(S) | 120 | 1:1 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 |
47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
53-45PW(S) | 135 | 1:1 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 |
53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 |
54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 |
54-70(PW)HD | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 | 62 |
61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 |
64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 |
64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 |
68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 |
68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 |
72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 |
72-55PW(T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 | 51 |
77-48PW(S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 | 42 |
77-55PW(T) | 195 | 1:1 | 67 | 55 | 27 | 88 | 4 | 24 | 55 |
80-48PW(T) | 200 | 1:1 | 72 | 48 | 33 | 74 | 4 | 25 | 56 |
90-48PW(T) | 230 | 1:1 | 56 | 48 | 25 | 78 | 4 | 19 | 50 |
100-40PW(T) | 255 | 1:1 | 58 | 40 | 33 | 63 | 3 | 21 | 37 |
110-40PW(HD) | 280 | 1:1 | 48 | 40 | 27 | 64 | 3 | 17 | 40 |
120-31PW(S) | 305 | 1:1 | 49 | 31 | 35 | 49 | 3 | 17 | 26 |
120-34PW(T) | 305 | 1:1 | 45 | 34 | 30 | 55 | 3 | 16 | 35 |
120-40PW(HD) | 305 | 1:1 | 37 | 40 | 20 | 63 | 3 | 13 | 44 |
130-34PW(T) | 330 | 1:1 | 40 | 34 | 27 | 55 | 3 | 15 | 37 |

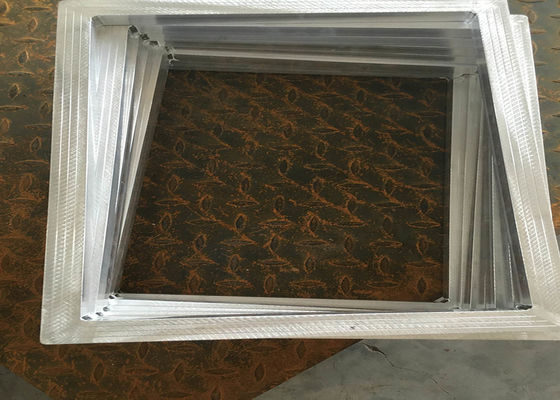

Screen printing aluminum frame photo show:
