High Tension Igh400 Micron Stainless Steel Screen Material Filter Printing Sieve Mesh

Certification
China Hebei Reking Wire Mesh CO.,Ltd certification
China Hebei Reking Wire Mesh CO.,Ltd certification
I'm Online Chat Now

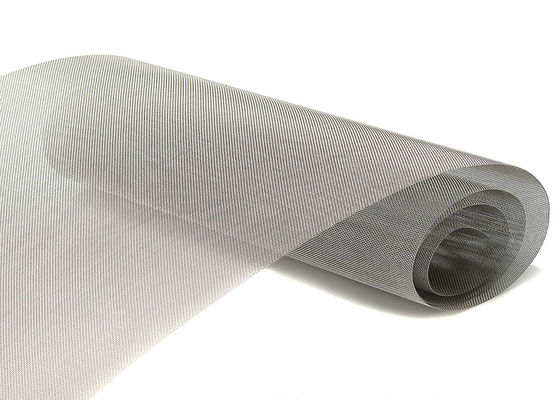

High Tension Igh400 Micron Stainless Steel Screen Material Filter Printing Sieve Mesh

High Tension Igh400 Micron Stainless Steel Screen Material Filter Printing Sieve Mesh
High Tension Igh400 Micron Stainless Steel Screen Material Filter Printing Sieve Mesh High Tension Igh400 Micron Stainless Steel Screen Material Filter Printing Sieve Mesh High Tension Igh400 Micron Stainless Steel Screen Material Filter Printing Sieve Mesh

Large Image :  High Tension Igh400 Micron Stainless Steel Screen Material Filter Printing Sieve Mesh

Product Details:
Place of Origin: Hebei province,Chain Mainland.
Brand Name: R&K
Certification: ISO9001:2008,SGS,FDA.MSDS
Model Number: Y1819
Payment & Shipping Terms:
Minimum Order Quantity: 10 Square meter
Price: negotiation
Packaging Details: kraft paper inside,and bubble film outside,then all be putinto woodcase
Delivery Time: depends on your qty.ususally within 15days.
Payment Terms: L/C, T/T, Western Union,Paypal,Crdit Card.Trade asscurance
Supply Ability: 100rolls per months
Detailed Product Description
Features: High Tension Product Name: High Tension 400 Micron Stainless Steel Screen Material Filter Printing Sieve Mesh Screen
Width: 1m Length: 30m Per Roll
Certification: ISO9001:2008, Brand Name: SUS 304N,304HP,316.
High Light:

stainless steel filter mesh

,

stainless steel mesh roll





High tension igh400 micron stainless steel screen material filter printing sieve mesh screen







Introduce For The Stainless Steel wire mesh cloth:





Reking stainless steel printing wire mesh is upgraded stainless steel wire mesh which is woven with 30% stronger stainless steel wire compared with standard stainless steel wire. The extra tensile strength of achieves higher screen tension and optimizes printing parameters for further improvement of dimensional accuracy, and prolongs screen service life.



Material SUS 304N,304HP,316
Mesh count 40mesh/inch-400mesh/inch
Wire diameter 18micron-160 micron
Roll width 40"(1020mm),48"(1220mm),60"(1530mm),standard size,other wide we can customized for you.
Roll Length Staindard size 30meters.
Weave style Plain weave.1:1
Mesh thickness please see our specification.





Features For Stainless Steel wire mesh cloth:



Low Elongatation;

High tension;

Heat resistant;

High stability;

High flexibility

Non-electrostatic

Abrasion resistant;

Good Solvent resistant;

Chemical & Thremal resistant;

Excellent resistant to abrasion;

Excellent levels of plasticity;

and so on...



Application For Stainless Steel wire mesh cloth:



Reking Stainless steel screen printing mesh are mainly used in creamic printing industy,glass printing industry,touch screen printing,the solar battery printing,LCD printing,FPD printing,electronic components printing,thick film printing ect...



Specification For Stainless Steel wire mesh cloth:



Mesh/ inch

Wire diameter

(µm)

opening (%) Aperture (µm)

Mesh thickness

(µm)

One time calender

(µm)

Two

time calender

(µm)

Suggestion tension (N/CM)

Ink thickness

(cm3/㎡)

40 160 56 475 300--320 / / / 179.1
50 140 52 368 265--280 / / / 146.9
60 120 51 303 230--245 / / / 123.2
80 120 39 198 235--245 / / / 92.9
80 90 52 228 175--180 / / / 93.1
80 50 71 268 95--100 / / / 71.0
100 100 37 154 195--205 / / / 77.2
120 80 39 132 155--165 / / / 65.8
150 60 42 109 115--124 / / / 50.0
165 45 50 109 88--93 / / / 45.1
165 50 46 104 97--105 / / / 45.6
180 45 48 96 88--93 / / / 41.5
180 50 42 91 96-104 / / / 41.7
200 40 47 87 82--83 66-68 62-64 49-53 37.5
200 50 37 77 98--103 86-88 84-86 49-52 36.8
230 35 46 75 81--83 56-58 55-57 47-50 28.8
250 40 37 62 69--74 66-68 65-67 47-50 23.2
250 30 50 72 63--64 49-50 45-47 45-48 29.8
250 35 43 67 77--78 58-59 54-56 45-48 31.2
270 35 40 59 71--75 60-62 57-59 42-45 30.1
300 30 42 55 67--68 51-52 47-49 40-45 28.8
325 30 38 48 62--66 50-52 49-51 40-42 28.2
325 28 41 50 63--64 49-51 45-47 40-42 26.4
325 23 50 55 49--53 38-40 35-37 39-40 25.4
350 25 43 48 46--49 42-43 39-41 38-40 18.7
400 18-19 51.3 46 536-40 27-28 25-27 38-40 20.0
400 23 41 41 50--54 39-40 35-37 37-40 22.0



Photos for the Stainless Steel wire mesh cloth:



High Tension Igh400 Micron Stainless Steel Screen Material Filter Printing Sieve Mesh 0



High Tension Igh400 Micron Stainless Steel Screen Material Filter Printing Sieve Mesh 1





The workshop of the stainless steel steel wire mesh cloth:



High Tension Igh400 Micron Stainless Steel Screen Material Filter Printing Sieve Mesh 2
