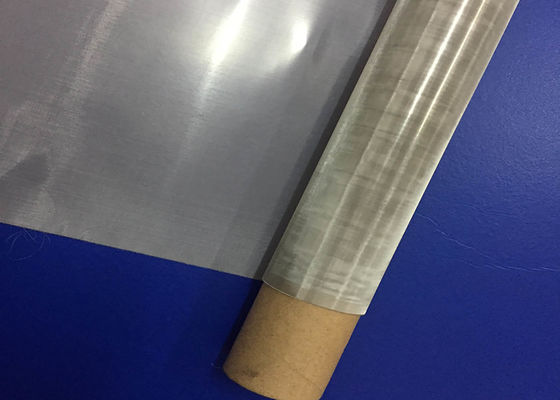

304 Plain Weave Stainless Steel Screen Printing Mesh Roll For Glass Printing

Large Image : 304 Plain Weave Stainless Steel Screen Printing Mesh Roll For Glass Printing

Product Details:

Place of Origin:	Hebei,China
Brand Name:	R&K
Certification:	FDA
Model Number:	R&K-TH

Payment & Shipping Terms:

Minimum Order Quantity:	50 meters
Price:	negotiation
Packaging Details:	Waterproof,woven bags inside,carton or plywood case outside.
Delivery Time:	Within 8 work days
Payment Terms:	L/C，T/T，Western Union，Paypal，Trade assurance
Supply Ability:	2000 square meter per month

Contact Now

Detailed Product Description

Product Name:	304 Plain Weave 250 Mesh Screen Stainless Steel Screen Printing Mesh Roll For Glass Printing	Color:	Silver
Application:	Glass Printing	Shape:	Customers' Request
Weave Style:	Plain Weave.	Mesh Count:	230 Mesh
High Light:	stainless steel mesh fabric , stainless steel mesh roll

304 plain weave 250 mesh screen stainless steel screen printing mesh roll for glass printing

Description of stainless steel screen mesh:

Screen printing is the most widespread and common additive layer deposition and patterning method because of its ability to print on many kinds of substrates with the widest range of inks and because, considering any modern print process, it can deposit the greatest thickness of ink film. Although this technology has been used since the beginning of the 2nd millennium it is still under development and there have been many innovations with the technology in the last 50 years.

Materila:304

Hole size:0.06mm

width:1m

length:30m

wire diameter:0.04mm

mesh count:230 mesh

usage:glass printing

Features of stainless steel wire mesh:

Acid and alkali resistant
Corrosion resistant
Abrasion resistance, durable
Easy to plastic processing, so that the possibility of the use of stainless steel screens diversified
High finish, no surface treatment, maintenance is simple
Standard size,uniform opening,Precise control fiter rating etc

Application of stainless steel mesh roll :

stainless steel filter wire mesh is used in petroleum,chemical industry,chemical fiber, food

,medicine,fertilizer,paper-making,airspace.

Specification of our stainless steel screen printing mesh:

Specification	Mesh/ inch	Wire Dia (μm)	Open area Ratio(%)	Apereture (μm)	Apereture (μm)	Calendered Thickness (μm)	Theoretical lnk(cm^/m^)
40×40×160	40	160	56	475	300-320	As order	179.1
60×60×120	60	120	51.3	303	230-245	As order	123.2
80×80×120	80	120	39	198	235-245	As order	92.9
80×80×90	80	90	52	228	175-180	As order	103
80×8×50	80	50	71	268	95-100	As order	78
100×100×100	100	100	36.8	154	195-205	As order	77.2
120×120×80	120	80	39	132	155-165	As order	65.8
150×150×60	150	60	41.7	109	115-124	As order	50
165×165×35	165	35	60	119	70-75	As order	48
165×165×45	165	45	50.1	109	88-93	As order	45.1
165×165×50	165	50	45.6	104	97-105	As order	45.6
180×180×45	180	45	46.4	96	88-93	As order	41.5
180×180×50	180	50	42	91	98-104	As order	41.7
200×200×40	200	40	46.9	87	82-84	As order	43
200×200×50	200	50	37	77	98-103	As order	42
230×230×35	230	35	46.7	75	72-76	50-67	37
250×250×40	250	40	36.8	62	82-86	50-80	34
250×250×30	250	30	49.7	72	64-68	40-58	30
250×250×35	250	35	43	67	76-78	57-70	32
270×270×35	270	35	39.4	59	76-80	58-70	30
300×300×30	300	30	41.7	55	66-68	4-59	28
325×325×30	325	30	38	48	66-68	45-60	24
325×325×28	325	28	41.2	50	63-64	40-56	26.4
325×325×23	325	23	49.8	55	49-53	37-41	25.4
350×350×35	350	25	43	48	52-54	41-50	18.7
400×400×23	400	23	40.7	41	50-54	35-48	19
400×400×18	400	18	51.3	46	36-40	28-30	20
500×500×18	500	18	41.7	33	36-40	23-29	15.3
