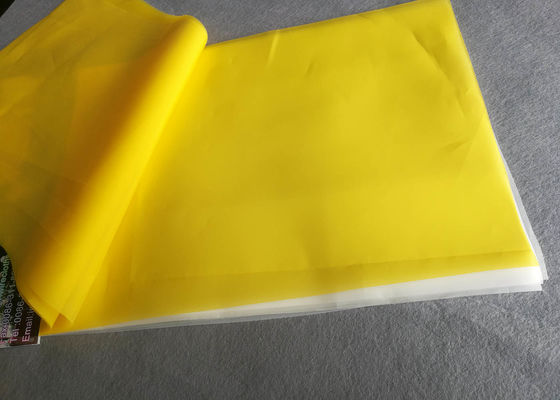

Acid-Resistance Good Colourful Polyester Mesh Screen Printing Ceramic Printing Wire Mesh
Description of the polyester Monofilament Screen Printing Mesh:
Material: 100% polyester yarn.
Weaving method: plain weave.
Color: white / yellow, other colors can be customized.
Name: polyester mesh, printing mesh, silk screen mesh, nylon mesh, nylon filter, etc.
Technology: Woven from polyester yarn, it has the characteristics of precise mesh, flat surface and standard mesh.
Specification: 10 mesh-420 mesh,
Color: white, yellow, etc.
Uses: Widely used in electronic plate making, ceramics, glass, textile printing and aerospace filtration, and petrochemical industries.
Low enlongation silk screen printing mesh is producing in our factory in a wide of rang of the mesh counts,and our silk screen printing mesh offers significant advantages over the tradinional mofofilament polyester mesh.
Reking silk screen printing mesh be setting within 180-200 centigrate,we can control our temperature in filexibility. if you have any problem,you can contact us freely.the satable of the mesh depends on the temperature when setting up.
| Glitter |
25-60 |
Flock adhesive |
45-125 |
| Pigment ink printing, areasnes |
110-175 |
Puff-up colors |
55-125 |
| Overpritnig |
80-110 |
Plasticol transfer |
125-305 |
| Universal fabric |
125 |
Plasticol direct |
125-305 |
| Pigment inks,half-tone |
155-255 |
Sublimation transfer |
195-305 |
Specification of the polyester Monofilament Screen Printing Mesh::
Mesh Count
Diameter
(Mesh/inch μm) |
Mesh
Count
(Mesh
/Inch) |
Weave |
Aperture
(μm) |
Thread
Diameter
(μm) |
Opening
(%) |
Thickness(μm) |
Thickness
Tollerance
(+/- μm) |
Theoretical
lnk(cm3/m2) |
Weight
(g/m2) |
| 32-55PW(S) |
81 |
1:1 |
257 |
55 |
67 |
103 |
6 |
67 |
28 |
| 32-64PW(S) |
81 |
1:1 |
248 |
64 |
63 |
95 |
6 |
56 |
32 |
| 36-90PW(T) |
92 |
1:1 |
183 |
90 |
44 |
150 |
8 |
65 |
68 |
| 39-55PW(S) |
100 |
1:1 |
177 |
55 |
56 |
88 |
6 |
55 |
30 |
| 40-80PW(T) |
103 |
1:1 |
166 |
80 |
44 |
133 |
7 |
59 |
60 |
| 43-80PW(T) |
110 |
1:1 |
149 |
80 |
41 |
130 |
7 |
53 |
64 |
| 47-45PW(S) |
120 |
1:1 |
166 |
45*2 |
61 |
80 |
6 |
42 |
40 |
| 47-55PW(S) |
120 |
1:1 |
152 |
55 |
51 |
88 |
6 |
48 |
34 |
| 48-70PW(T) |
122 |
1:1 |
133 |
70 |
41 |
115 |
6 |
47 |
55 |
| 53-45PW(S) |
135 |
1:1 |
143 |
45*2 |
57 |
79 |
7 |
41 |
46 |
| 53-55PW(S) |
135 |
1:1 |
133 |
55 |
50 |
86 |
6 |
42 |
40 |
| 54-64PW(T) |
137 |
1:1 |
115 |
64 |
39 |
100 |
5 |
39 |
51 |
| 61-64PW(T) |
155 |
1:1 |
90 |
64 |
31 |
101 |
5 |
30 |
58 |
| 64-55PW(S) |
160 |
1:1 |
98 |
55 |
38 |
98 |
5 |
36 |
48 |
| 64-64PW(T) |
160 |
1:1 |
85 |
64 |
30 |
115 |
6 |
34 |
61 |
| 68-55PW(S) |
175 |
1:1 |
85 |
55 |
34 |
85 |
4 |
28 |
48 |
| 68-64PW(T) |
175 |
1:1 |
78 |
64 |
28 |
105 |
5 |
30 |
65 |
| 72-48PW(S) |
182 |
1:1 |
90 |
48 |
36 |
78 |
5 |
33 |
39 |
Characteristic of the polyester Monofilament Screen Printing Mesh:
Faster tensioning without damage to the threads; Improved fabric strength; Faster tension stabilization; Higher tension threshold and breaking point; Less tension loss during the stretching processFaster turnaround time from the screen room to the pressroom; Improved registration due to stable tension; Faster Print speeds.
Application of the polyester Monofilament Screen Printing Mesh:
Printing mesh are widely used in T-shirt printing, Graphics printing, Cosmetic Bottles,Ceramics, Glass,Garment printing, electronic components
PCB,CD/DVD,Solar battery ect.
