Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
Payment & Shipping Terms:
|Color:||Red,white,green,yellow||Application:||Screen Printing Industry|
|Product Name:||Screen Printing Suqeegee||Material:||Polyurethane Squeegee|
|Hardness:||55-95 Shore A||Surface:||Smooth|

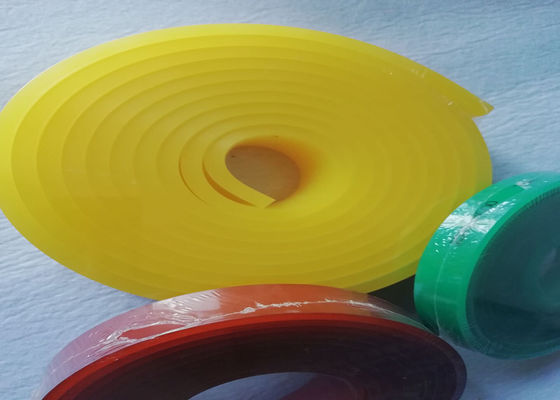

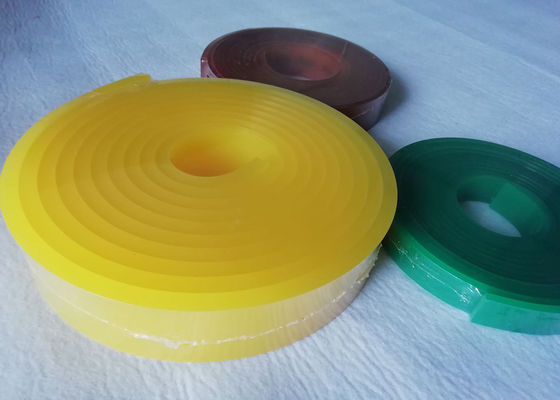

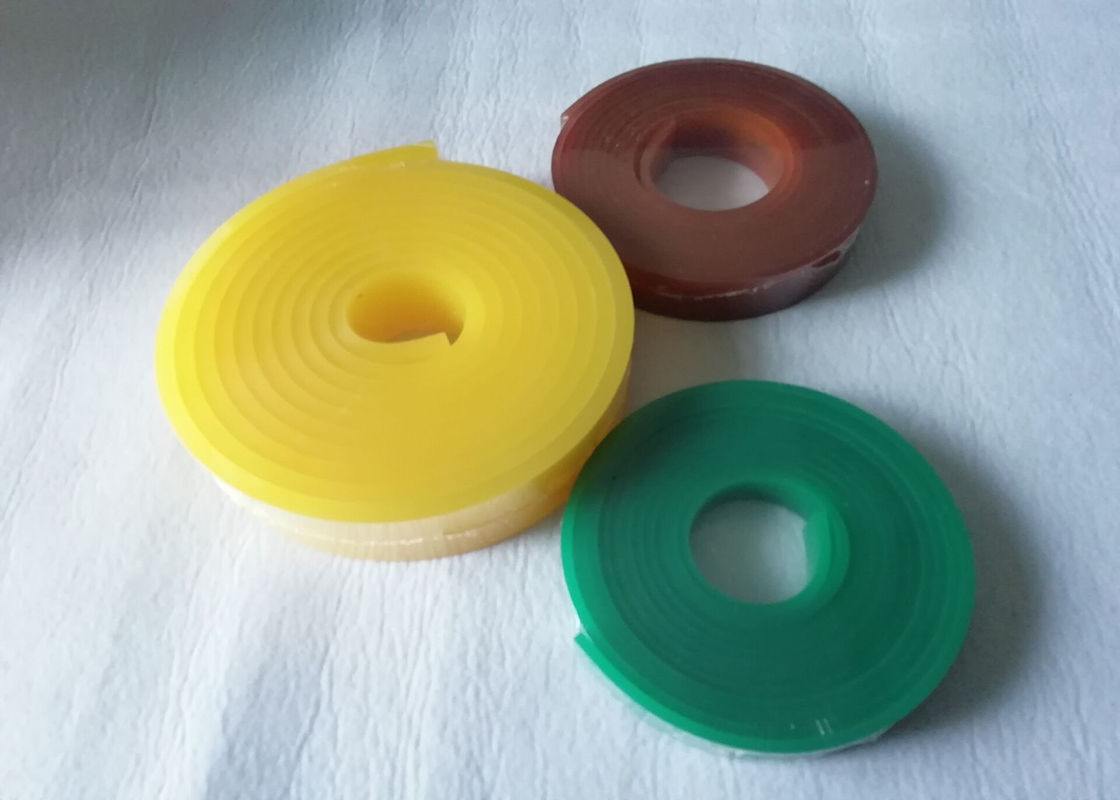

90A screen printing squeegee blades,
SGS screen printing squeegee blades,
PU screen printing squeegee blades
45-90A Squeegee For Screen Printing Green High Temperature Resistant, Strong And Durable
Our special molding process ensures a uniform material, without voids. All of our squeegees are shipped with our special factory edge. These edges are the smoothest and sharpest available to give you maximum printing performance.
We are using 100% polyurethane import material.And every process is meticulous.
The working part of the squeegee is the printing end of the squeegee, which is in contact with the screen during the printing process. The hardness or softness of the squeegee is critical to the entire printing process. Not to say that the squeegee determines the printing quality
The cross-sectional shape of the squeegee refers to the shape of the cross-section of the end of the squeegee in contact with the screen. The shape of all surfaces determines the pressure on the surface of the substrate material. Different cutting planes can make the ink flow more or less, thereby affecting the thickness of the printing ink layer. The sharper the squeegee printing end, the less the excess ink flow, the better the resolution of the printed image, the better the printing clarity, and the thicker the printing ink layer
|Green||Medium||70-75||Suitable for various
of mesh screen cloth,
various of ink and various of the prints.
|Red||Soft||50-65||Suitable for the low mesh screen cloth ,low viscosity ink,irregular surface of the printing.|
|Blue||Hard||80-85||Suitable for high pressure,
high viscosity ink,the fine print of the printing
|White||Super hard||90-95||Suitable for high pressure,
high viscosity ink,the fine print
of the printing
|75/90/75||Suitable for various of mesh screen cloth,various of ink and various of the prints.|
|65/90/65||Suitable for the low mesh screen cloth ,low viscosity ink,irregular
surface of the printing.
1. Screen printing squeegee has high abrasion
2. It is not easy to be corroded and has super solvent
3. It is proved that it exists high tolerance
4. It also has High Cut Resistance
5. This product also supports cut customization
6. This product also has size customization
1. Transfer the ink to the substrate through the screen.
2. Scrape off excess ink from the screen.
3. Keep the screen in contact with the substrate line.
4. It can print substrates with different shapes.
How to choose
1. The medium hardness squeegee is used for high pressure.Suitable for various of mesh screen cloth,various of ink and various of the prints use this kinds of squeegee the printing ink accumulate very well.Image resolution power is good,suitable for all kinds of printed substrates.
2. The hard squeegee used for the largest printing pressure and printing ink viscosity is very high.Small amount of oil accumulation and image resolution are usually in the screen printing can choose the hard squeegee.it produces the ink layer is very thin.
