High Performance Screen Printing Squeegee Blade Professional 5*25 9*30 9*50 SHA 65 70 75 80 85
Product Details:
| Place of Origin: | GangDong China. |
| Brand Name: | JIARUN |
| Model Number: | S1 Single Layer 9*50*2000mm 9*30*2000mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 ROLLS |
|---|---|
| Price: | xiang tan |
| Packaging Details: | 2m / Roll; 5Roll/Carton. |
| Delivery Time: | 7-10 Work Day. |
| Payment Terms: | T/T |
| Supply Ability: | 2000 ROLLS / MONTH |
|
Detail Information |
|||
| Highlight: | High Performance Screen Printing Squeegee Blade,High Performance,Professional Screen Printing Squeegee Blade |
||
|---|---|---|---|
Product Description
High Performance Professional Squeegee Rubber / Polyurethane Blade For Screen Printing 5*25 9*30 9*50 SHA 65 70 75 80 85
Seriblade® S1 Series: Single Layer Standard Series
Based on high-performance MDI cast polyurethane elastomer
Universal single-layer blade with cost-effectiveness
Compatible with water-based, solvent-based, and UV inks
Comparable to single-layer blades from the UK, France, and other regions
Suitable for most screen printing applications, including:
Printed Circuit Boards (PCBs)
Touchscreens
Textiles
Plastic bottles
Outdoor advertising
CD/DVD manufacturing
Technical Data
| Physical Properties | Values | Units | Standard |

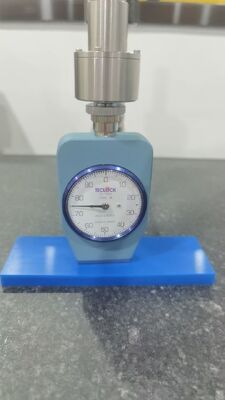

| Hardness | 75 | SH A | DIN 53505 |
| Tensile strength @ break | 35.5 | Mpa | DIN 53504 |
| Tensile strain @ break | 508 | % | DIN 53504 |
| Tensile stress @ 100% elongation | 2.87 | Mpa | DIN 53504 |
| Tensile stress @ 300% elongation | 6.03 | Mpa | DIN 53504 |
| Tear strength (Die C) | 60.5 | KN/m | DIN 53515 |
| Abrasion resistance-volume loss (DIN) | 21.6 | mm³ | DIN 53516 |
| Rebound resilience | 35% | % | DIN 53512 |
| Solvent swell mass increase-24hrs immersion incyclohexanone (783# open oil) | 8.9 | % | Ref. BS ISO 1817 |
| Solvent swell thickness increase-24hrs immersion incyclohexanone (783# open oil) | 7.5 | % | Ref. BS ISO 1817 |
| Solvent swell hardness decrease-24hrs immersion incyclohexanone (783# open oil) | -9 | SH A | Ref. BS ISO 1817 |
| Working environment temperature | 0/+60 | °C | — |
Specification
| Specification | Value Range | Tolerance |
| Length | 10~2000mm | +/-10mm |
| Width (8~10mm) | 8~10mm | +/-0.2mm |
| Width (10~50mm) | 10~50mm | +/-0.3mm |
| Width (50~100mm) | 50~100mm | +/-1.0mm |
| Thickness | 2~20mm | +/-0.3mm |
| Hardness | 60°~90° SHA, one specification per 5° | +/-3 SHA |
| Note | Maximum length is 2000mm. Specific dimensions, edge and hardness can be customized per customer requirements. | — |
