Acid Resistant SS304 Stainless Steel Screen Printing Mesh For Multi-colour Printing
Introduce For The Stainless Steel wire mesh cloth:
316 stainless steel printing screen is prepared in 316, which is stable with 2% molybdenum. Compared with stainless steel made of chromium and nickel, it has perfect corrosion resistance and can resist corrosion. This material has the unique properties of 316 and is very durable in use. This type of mechanical performance has manufacturing uniqueness, similar to 304.
316 wire mesh woven woven fabric has been used in chemical processing, which required better corrosion resistance than ordinary chromium-nickel types.
Reking's stainless steel printing is known for its excellent dimensional stability and narrow tolerances of the entire fabric thickness. This provides a uniform and accurate aperture width, and the strength of stainless steel allows the use of finer wire diameters.
Unlike synthetic screen printing screens, stainless steel screen printing screens do not absorb moisture and are not affected by temperature. It will not actually shrink, stretch or sag. In addition, our screen printing screens are dimensionally stable, but have sufficient elasticity, so they can stretch and print tight screen printing screens with the smallest non-contact distance. This feature ensures the most accurate and consistent screen printing results.
Features For Stainless Steel wire mesh cloth:
Screen printing screen stability
The use of stainless steel in screen printing screens ensures excellent dimensional stability. Even if the screen printing screen and the template frame of the screen printing screen are fixed at a certain angle, it still maintains its rectangular shape, and the wire diameter will not change due to the displacement of the parallelogram.
Static charge
Screen printing screens do not release static charges.
Hygroscopicity and temperature
Stainless steel wire does not absorb moisture, so the screen printing screen performance of SHARE mesh is not adversely affected by the application temperature of up to 600 ° C (1112 ° F).
Application For Stainless Steel wire mesh cloth:
Reking Stainless steel screen printing mesh are mainly used in creamic printing industy,
glass printing industry,touch screen printing,the solar battery printing,LCD printing,
FPD printing,electronic components printing,thick film printing ect...
Specification For Stainless Steel wire mesh cloth:
| Mesh/ inch |
Wire diameter
(µm)
|
opening (%) |
Aperture (µm) |
Mesh thickness
(µm)
|
One time calender
(µm)
|
Two
time calender
(µm)
|
Suggestion tension (N/CM) |
Ink thickness
(cm3/㎡)
|
| 40 |
160 |
56 |
475 |
300--320 |
/ |
/ |
/ |
179.1 |
| 50 |
140 |
52 |
368 |
265--280 |
/ |
/ |
/ |
146.9 |
| 80 |
120 |
39 |
198 |
235--245 |
/ |
/ |
/ |
92.9 |
| 80 |
90 |
52 |
228 |
175--180 |
/ |
/ |
/ |
93.1 |
| 100 |
100 |
37 |
154 |
195--205 |
/ |
/ |
/ |
77.2 |
| 120 |
80 |
39 |
132 |
155--165 |
/ |
/ |
/ |
65.8 |
| 150 |
60 |
42 |
109 |
115--124 |
/ |
/ |
/ |
50.0 |
| 165 |
45 |
50 |
109 |
88--93 |
/ |
/ |
/ |
45.1 |
| 165 |
50 |
46 |
104 |
97--105 |
/ |
/ |
/ |
45.6 |
| 180 |
45 |
48 |
96 |
88--93 |
/ |
/ |
/ |
41.5 |
| 180 |
50 |
42 |
91 |
96-104 |
/ |
/ |
/ |
41.7 |
| 200 |
40 |
47 |
87 |
82--83 |
66-68 |
62-64 |
49-53 |
37.5 |
| 200 |
50 |
37 |
77 |
98--103 |
86-88 |
84-86 |
49-52 |
36.8 |
| 230 |
35 |
46 |
75 |
81--83 |
56-58 |
55-57 |
47-50 |
28.8 |
| 250 |
40 |
37 |
62 |
69--74 |
66-68 |
65-67 |
47-50 |
23.2 |
| 250 |
30 |
50 |
72 |
63--64 |
49-50 |
45-47 |
45-48 |
29.8 |
| 250 |
35 |
43 |
67 |
77--78 |
58-59 |
54-56 |
45-48 |
31.2 |
| 270 |
35 |
40 |
59 |
71--75 |
60-62 |
57-59 |
42-45 |
30.1 |
| 300 |
30 |
42 |
55 |
67--68 |
51-52 |
47-49 |
40-45 |
28.8 |
| 325 |
30 |
38 |
48 |
62--66 |
50-52 |
49-51 |
40-42 |
28.2 |
| 325 |
28 |
41 |
50 |
63--64 |
49-51 |
45-47 |
40-42 |
26.4 |
| 325 |
23 |
50 |
55 |
49--53 |
38-40 |
35-37 |
39-40 |
25.4 |
| 350 |
25 |
43 |
48 |
46--49 |
42-43 |
39-41 |
38-40 |
18.7 |
| 400 |
18-19 |
51.3 |
46 |
536-40 |
27-28 |
25-27 |
38-40 |
20.0 |
| 400 |
23 |
41 |
41 |
50--54 |
39-40 |
35-37 |
37-40 |
22.0 |

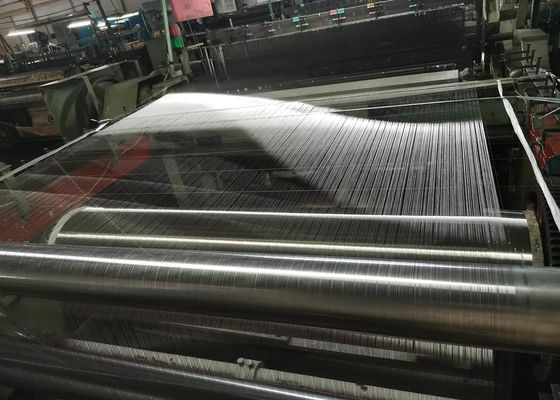

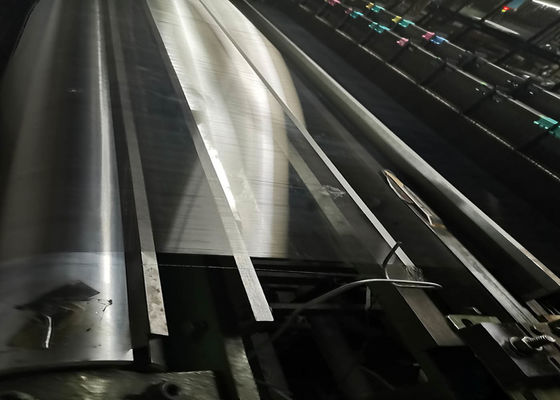

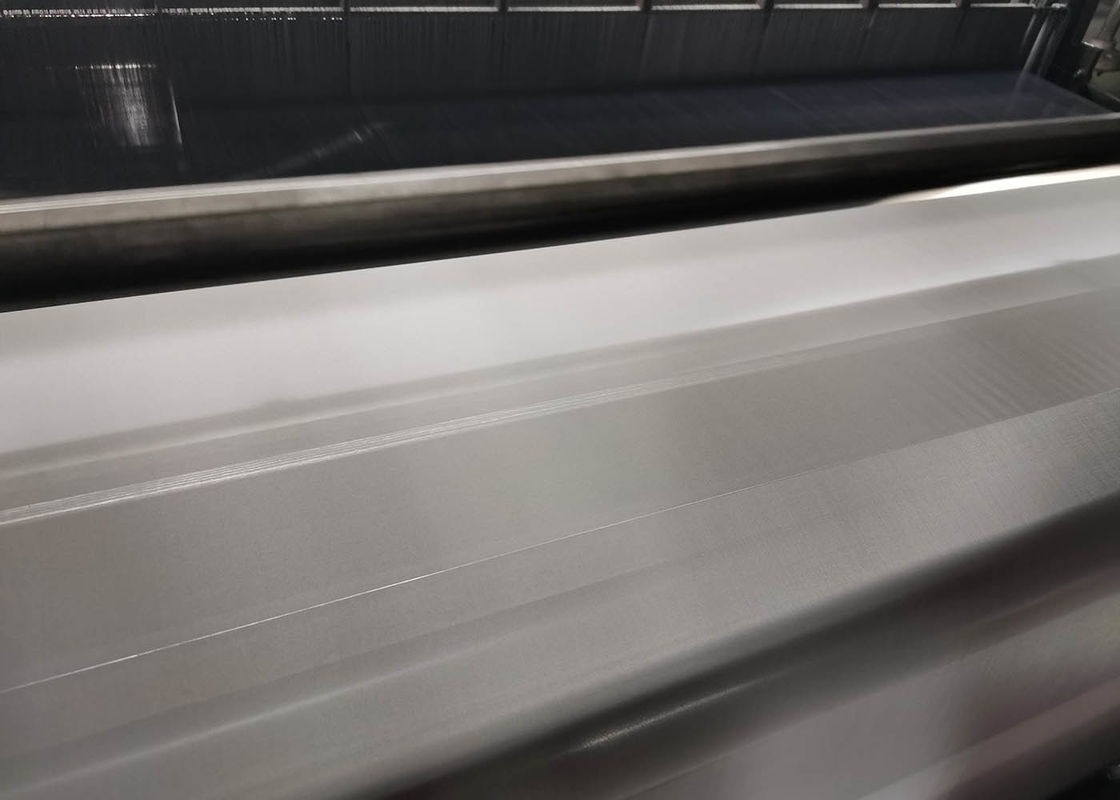

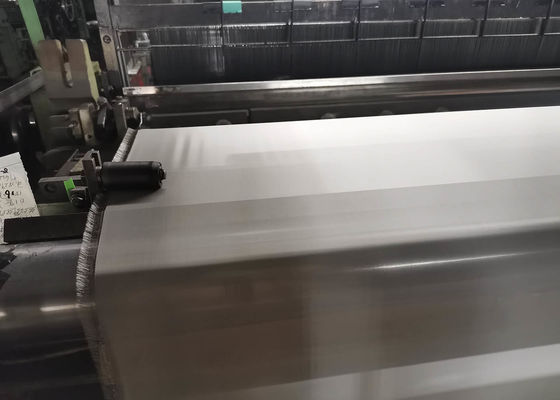

Photos for the Stainless Steel wire mesh cloth:
