Product Details:
Payment & Shipping Terms:
|
Material: | 100% Nylon | Color: | White |
---|---|---|---|
Width: | 1m,1.27m | Length: | 30m , 50m , 100m |
Filter Hole: | 40 Micron | Grade: | Food Grade |
High Light: | Monofilament Nylon Mesh 40 Micron,1.27m Nylon Mesh 40 Micron,120T Nylon Mesh 40 Micron |

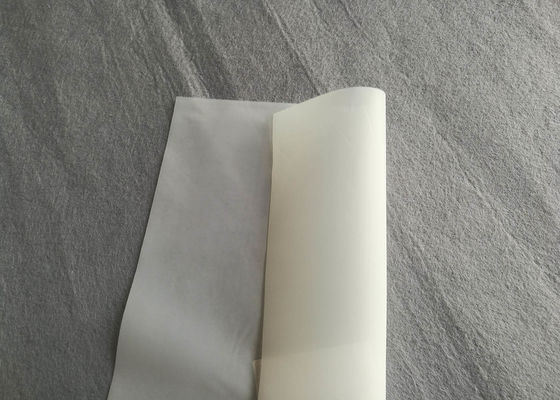

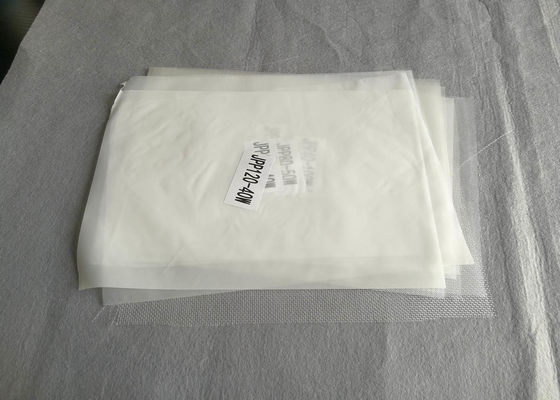

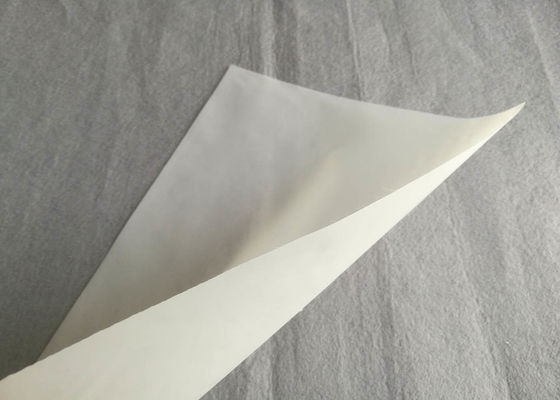

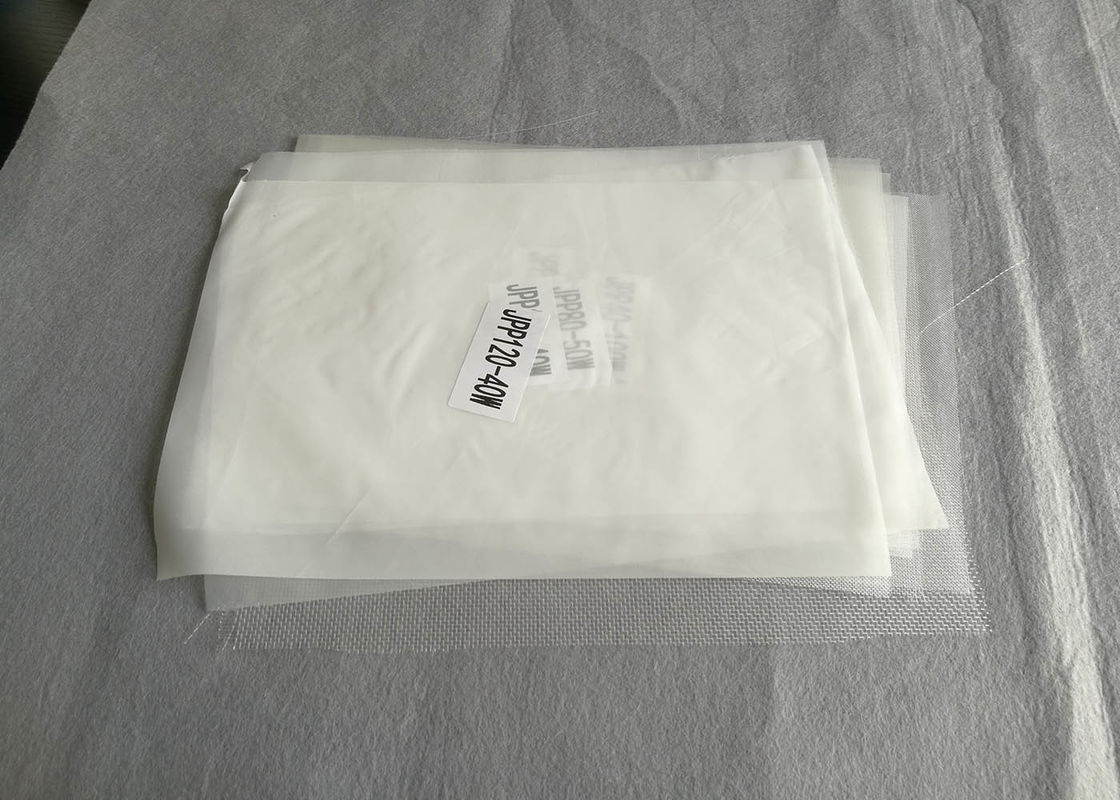

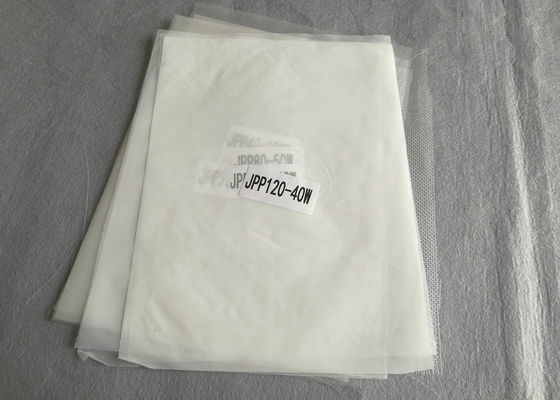

Food Grade JPP 120 T - 40W 40 Micron Wire Mesh Monofilament Nylon Screen Filter Mesh Net
Descriptions of the nylon filter mesh:
We have been producing nylon filter mesh for 20 years, and we have a professional production department and after-sales department. You can buy our products with complete confidence.
All our raw materials are made of PA6.6, 100% monofilament nylon. If you want to filter food, we also have a food-grade material-PA66. All of this material has passed the inspection. We will provide you with an FDA test report, so you can use it with confidence.
Our nylon nets are all woven from monofilament PA6 and PA66 yarns.
Applications of the nylon filter mesh:
Product name | Food Grade JPP 120 T - 40W 40 Micron Wire Mesh Monofilament Nylon Screen Filter Mesh Net |
wire diameter | 40 um |
Mesh count | 120T |
Hole size | 40 um |
Mesh width | 1m.1.27m |
Mesh length | 30m.50m,100m |
Grade | Food Grade |
Usage | Filter |
All nylon monofilament filters can be used to filter all grades of filter values from 1um to 1000um.
In addition to filtering, monofilament nylon mesh can also be used for screening to screen liquids and powders of different sizes and grades.
Our nylon monofilament filters can be used not only for the screening of liquids and powders, but also for filtering sludge, food, medicines, solvents, oils, juices and milk.
Advantages of the nylon filter mesh:
The nylon filter mesh is uniform, the weaving method is plain weaving, and the mesh size is precise and regular.
The nylon filter mesh material is 100% nylon monofilament with a smooth surface. The filtered material can easily leave the net without sticking to the net, which greatly reduces the waste of materials.
nylon filter mesh has great strength and elasticity.
All nylon filter mesh have been cleaned and heat-set, and the nets are clean, flat and not easily deformed.
Nylon monofilament makes the life of the net longer than normal nylon net.
The nnylon filter mesh has excellent solvent resistance.
The nylon filter mesh is resistant to high temperatures and can work continuously at high temperatures up to 100°C.
Specifications of the nylon filter mesh:
Fabric number | Mesh count | Thread diameter | Mesh opening | Opening | Thickness | Weight | |
No. | cm | inch | um | micron | % | um | g/m2 |
JPP4 | 4 | 10 | 550 | 1950 | 61 | 950 | 262 |
JPP5 | 5 | 12 | 500 | 1500 | 56 | 850 | 271 |
JPP6 | 6 | 16 | 400 | 1267 | 58 | 780 | 208 |
JPP7 | 7 | 18 | 350 | 1079 | 57 | 675 | 186 |
JPP8 | 8 | 20 | 350 | 900 | 52 | 685 | 212 |
JPP9 | 9 | 24 | 250 | 861 | 60 | 455 | 145 |
JPP10 | 10 | 25 | 300 | 700 | 49 | 576 | 195 |
JPP12 | 12 | 30 | 250 | 583 | 49 | 470 | 162 |
12 | 30 | 300 | 533 | 41 | 585 | 234 | |
JPP14 | 14 | 35 | 250 | 464 | 42 | 470 | 190 |
JPP16 | 16 | 40 | 200 | 425 | 46 | 370 | 139 |
16 | 40 | 250 | 375 | 36 | 485 | 217 | |
JPP20 | 20 | 50 | 150 | 350 | 49 | 375 | 98 |
20 | 50 | 200 | 300 | 36 | 385 | 173 | |
JPP24 | 24 | 60 | 150 | 267 | 41 | 285 | 117 |
JPP28 | 28 | 70 | 120 | 237 | 44 | 215 | 87 |
JPP30 | 30 | 76 | 120 | 213 | 41 | 225 | 94 |
JPP32 | 32 | 80 | 100 | 213 | 46 | 165 | 69 |
JPP36 | 36 | 90 | 100 | 178 | 41 | 178 | 78 |
JPP40 | 40 | 100 | 100 | 150 | 36 | 190 | 87 |
JPP43 | 43 | 110 | 80 | 152 | 43 | 135 | 60 |
JPP48 | 48 | 120 | 80 | 128 | 38 | 145 | 62 |
JPP56 | 56 | 140 | 61 | 118 | 44 | 85 | 44 |
JPP59 | 59 | 150 | 61 | 109 | 41 | 98 | 46 |
JPP64 | 64 | 160 | 61 | 95 | 37 | 105 | 50 |
JPP72 | 72 | 180 | 50 | 89 | 41 | 82 | 39 |
JPP80 | 80 | 200 | 50 | 75 | 36 | 90 | 43 |
JPP100 | 100 | 250 | 43 | 57 | 32 | 65 | 35 |
JPP120 | 120 | 305 | 43 | 40 | 23 | 70 | 42 |
JPP130 | 130 | 330 | 43 | 34 | 20 | 75 | 45 |
JPP140 | 140 | 355 | 38 | 33 | 21 | 67 | 48 |
JPP150 | 150 | 380 | 38 | 29 | 19 | 68 | 51 |
JPP165 | 165 | 420 | 35 | 26 | 18 | 62 | 47 |
