FDA Approved Monofilament Plain Weave 40 50 90 200 Micron 100% Nylon Filter Mesh

small.img.alt small.img.alt small.img.alt

Large Image :  FDA Approved Monofilament Plain Weave 40 50 90 200 Micron 100% Nylon Filter Mesh

Product Details:
Place of Origin: HEBEI ,CHINA
Brand Name: R&K
Certification: MSDS,ROSH,SGS,ISO 9001
Model Number: R&K-Nylon mesh
Payment & Shipping Terms:
Minimum Order Quantity: 10 meters
Price: Negotiable
Packaging Details: 1.30-70m/roll in PVC bag 2 2-8 rolls per carton 3.waterproof bags outside 4.package belt strengthen
Delivery Time: 7~15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Meters per month
Detailed Product Description
Usage: Liquid Filter Length: 30-70m/roll
Weave Style: Plain Woven Nylon Mesh Technique: Woven
Feature: Corrosion Resistance Color: White
High Light:

FDA Nylon Filter Mesh


Nylon Filter Monofilament Mesh


30 Meter Nylon Filter Mesh

FDA Approved Monofilament Plain Weave 40 50 90 200 Micron 100% Nylon Filter Mesh

Product Introduction

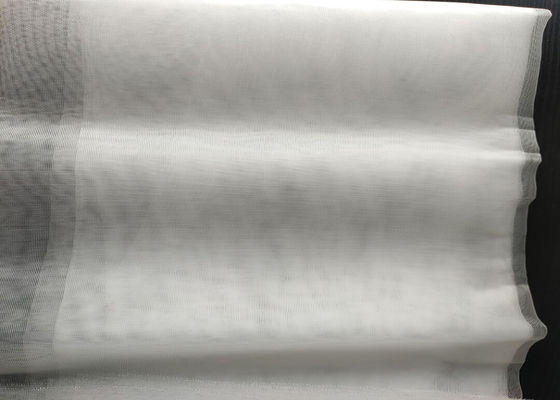

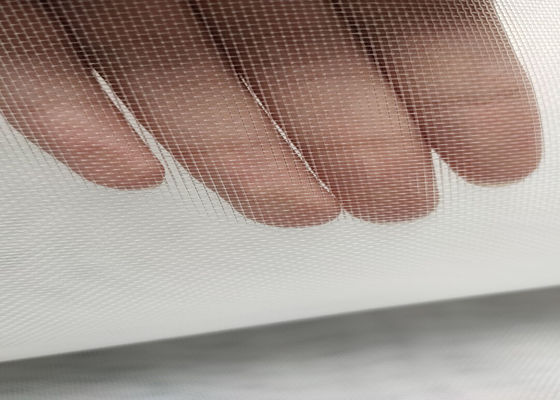

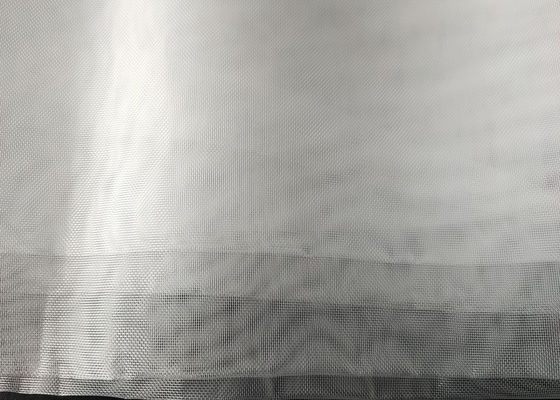

Nylon Filter Mesh is made of monofilament PA6 or PA66 yarn/thread (1:1 weaving method, plain weave), which is ideal for
straining, sieving or filtering most liquids, powders or sludges Nylon filters are widely used in industrial filtration, petroleum, chemical, printing and other products with complete specifications and good quality. Special specifications can be customized. And silk screen printing, paint filtration, fishing and other industries. Nylon mesh has the effect of high temperature resistance and alkali resistance, and the polyethylene mesh has the effect of acid resistance.


Product Description


Material:FDA food grade commercial nylon mesh

Mesh opening:5-1950 micron

Weave Style:Plain Weave

Thread Diameter:31-550 micron

Monofilament Style:Yes

Thickness:51-1100 micron

Hole Shape:square

Roll length:30-70m or customized

Roll width:1m, 1.25m, 2.5m, 2.95m or customized

Usage:liquid filter, air filter, dust filter

Type:filter mesh, filter cloth, mine sieving mesh, filter disc, filter cylinder


Product Features


It has high tension threshold and breaking point​
It has high modulus, low elongation monofilament nylon yarn
It has resist to chemicals, abrasion, heat and moisture
Minimal tension loss during stretching process
Improved registration due to stable fabric tension
Good antistatic
No surface treatment




Product Advantage


1.Due to their uniformity they can be woven with great precision to give exact and regular apertures

2.The resulting material has a very smooth surface so that the filtered particles will easily separate from it
3.They have great strength and elasticity
4. Due to different pore sizes, they can be used in different filtration systems and can be well adapted to each industry.
5. Because the aperture can be made small, it has ultra-high precision. Can be adapted to all filtering applications
6. Can be stored for a long time, not easily disturbed by external natural factors, can be used as an outdoor protective mesh
How to choose

Mesh Count is the number of threads per inch in the direction of warp and weft of the fabric.The mesh count is indentical in both warp and weft direction for Share Fitration's woven mesh.


Thread Diameter is specified as the diameter of the thread in microns.Yarn sizes in both warp and weft directions are the same.


Mesh Opening is the size or space between threads.The mesh opening is the result of the combination of the mesh count and yarn size.Mesh opening will determine the size or amount of material that will pass through the fabric.


Product Package


1. We always use poly bag for the goods which ship by air, so that customer can save freight free
2. Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping
3. There also have some customer request us to use the carton to packing their goods
4. We can according to customer's requirements
