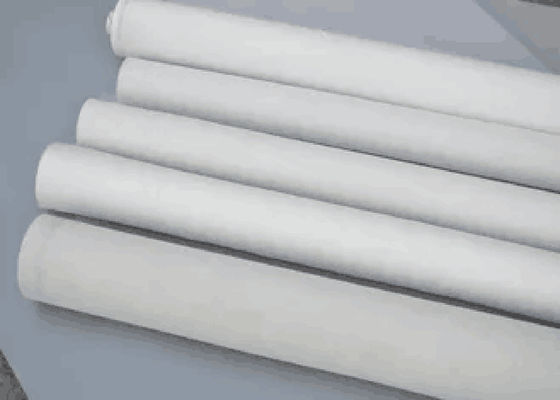

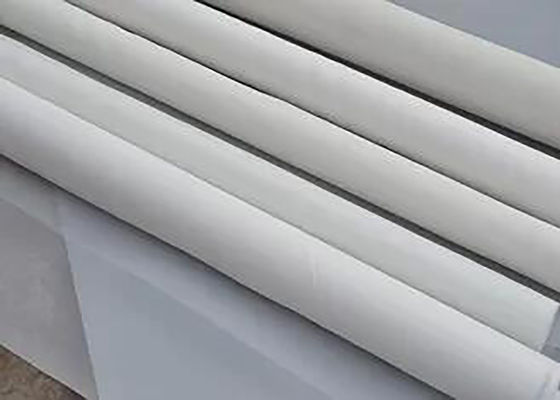

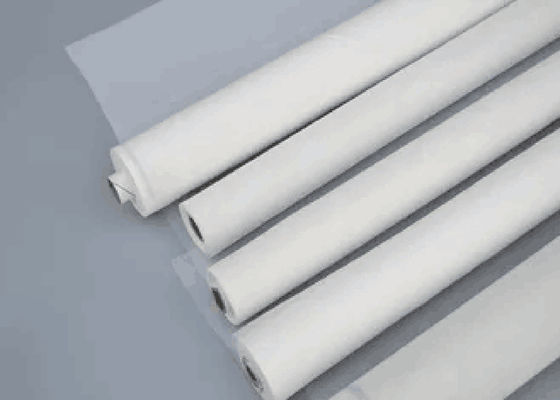

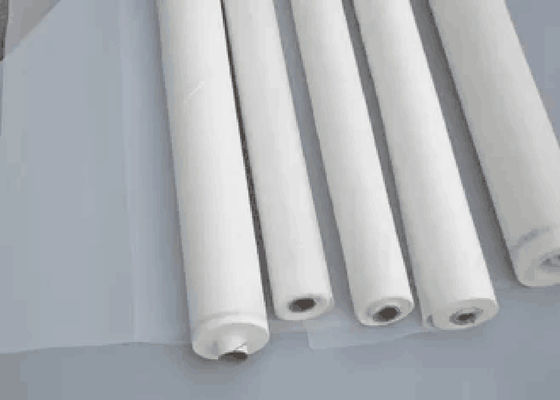

100% Food Grade 35 90 Micron Nylon Filter Wire Mesh For Milk/Water Filter Flour Sieve

Certification
China Hebei Reking Wire Mesh CO.,Ltd certification
China Hebei Reking Wire Mesh CO.,Ltd certification
I'm Online Chat Now

100% Food Grade 35 90 Micron Nylon Filter Wire Mesh For Milk/Water Filter Flour Sieve

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  100% Food Grade 35 90 Micron Nylon Filter Wire Mesh For Milk/Water Filter Flour Sieve

Product Details:
Place of Origin: HEBEI ,CHINA
Brand Name: R&K
Certification: MSDS,ROSH,SGS,ISO 9001
Model Number: R&K-Nylon mesh
Payment & Shipping Terms:
Minimum Order Quantity: 10 meters
Price: Negotiable
Packaging Details: 1.30-70m/roll in PVC bag 2 2-8 rolls per carton 3.waterproof bags outside 4.package belt strengthen
Delivery Time: 7~15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Meters per month
Detailed Product Description
Usage: Liquid Filter Length: 30-70m/roll
Weave Style: Plain Woven Nylon Mesh Technique: Woven
Feature: Corrosion Resistance Color: White
High Light:

90 Micron nylon filter mesh

,

35 Micron nylon filter mesh

,

30m/roll nylon filter mesh

100% Food Grade 35 90 Micron Nylon Filter Wire Mesh For Milk/Water Filter Flour Sieve



Product Introduction



Nylon Filter Mesh Fabrics offered comes in quality construction finish and provides for lasting service usage. Featuring high abrasion resistance, these mesh fabric options come in superior grade nylon material finish and find suitability for filtration of abrasive dusts/wet abrasive solids. Some of its features include suitable for use in low temperatures; providing for good elasticity for conditions where continuous





Mesh count:the number of threads per inch in the direction of warp and weft of the fabric.The mesh count is indentical in both warp and weft direction for Share Fitration's woven mesh.

Thread Diameter:specified as the diameter of the thread in microns.Yarn sizes in both warp and weft directions are the same.

Mesh Opening:the size or space between threads.The mesh opening is the result of the combination of the mesh count and yarn size.Mesh opening will determine the size or amount of material that will pass through the fabric.



Product Application



Nylon filter mesh are widely used in:
Mining

Agriculture

Aquaculture

medical and laboratory.

infusion and transfusion filters

micro-aggregate filters

arterial and venous filters in oxygenator reservoirs and blood bag

Making nylon filter bags



Product Features



Acid and alkali, corrosion resistance.
Low resistance line, can be repeated washing, high efficiency.
Captured by the length of fiber and dust, easy to clean filter efficiency is not affected by cleaning.
Good resistance to impact strength.





Product Advantage



1.Due to their uniformity they can be woven with great precision to give exact and regular apertures

2.The resulting material has a very smooth surface so that the filtered particles will easily separate from it
3.They have great strength and elasticity
4. Due to different pore sizes, they can be used in different filtration systems and can be well adapted to each industry.
5. Because the aperture can be made small, it has ultra-high precision. Can be adapted to all filtering applications


Product Specification



NL5/1500 5 13 500 1500 1000 308
NL6/1267 6 15 400 1267 840 228
NL7/1079 7 18 350 1079 640 209
NL8/900 8 20 350 900 645 232
NL9/861 9 24 250 861 460 145
NL10/750 10 25 250 750 530 148
NL12/533 12 30 300 533 495 256
NL14/514 14 35 200 514 380 135
NL16/425 16 40 200 425 400 155
NL16/375 16 40 250 375 420 240
NL17/388 17 42 200 388 380 160
NL18/366 18 45 220 366 400 207
NL20/300 20 50 200 300 375 190



Product Package



1. We always use poly bag for the goods which ship by air, so that customer can save freight free
2. Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping
3. There also have some customer request us to use the carton to packing their goods
4. We can according to customer's requirements





100% Food Grade 35 90 Micron Nylon Filter Wire Mesh For Milk/Water Filter Flour Sieve 0
