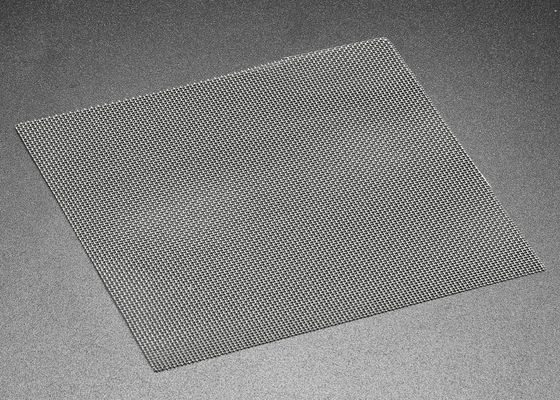

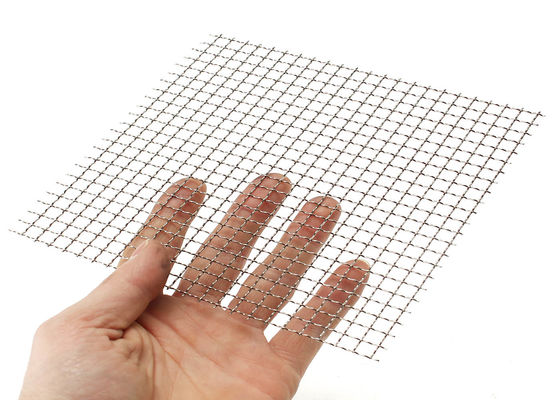

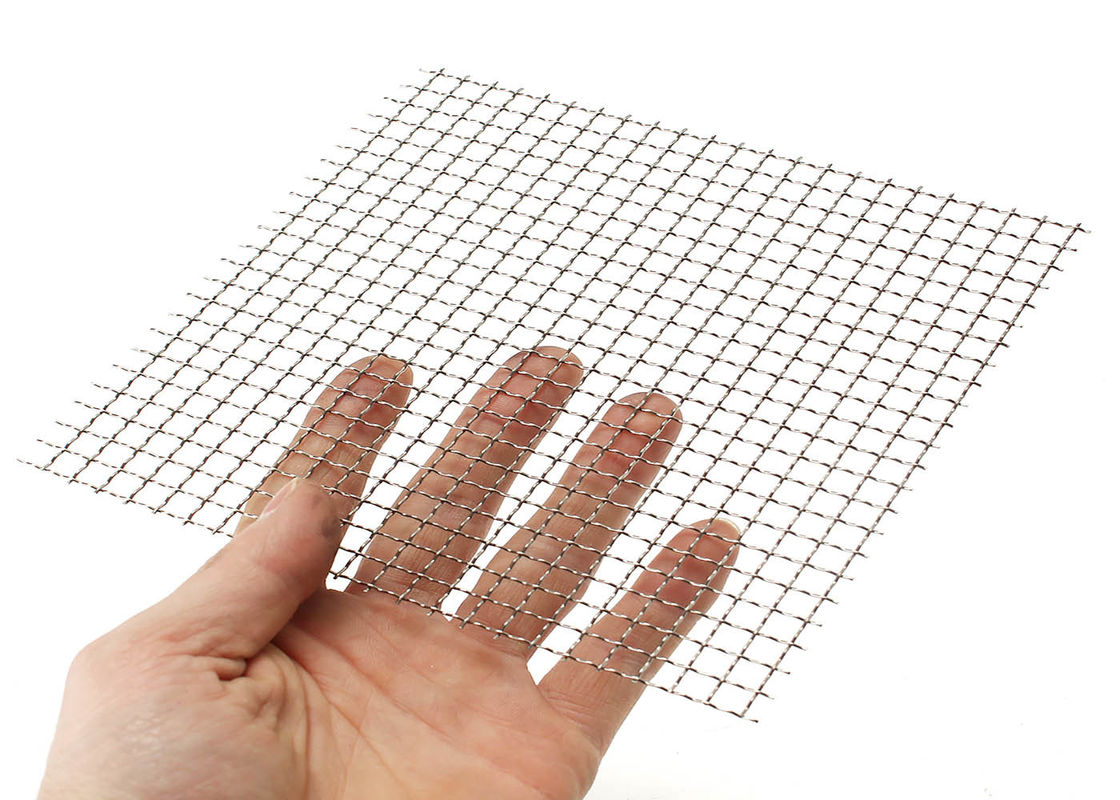

304 316 304N 316L Plain Weave Stainless Steel Woven Filter Wire Mesh FDA Grade
Description of 304 stainless steel woven mesh
1. Name: Comparative Network. According to local differences and uses, it is also called: Contrast seat mesh belt (Dutch cloth)
2. Material specification: high quality stainless steel wire
3. Weaving: Anti-Dutch weaving
4. Features: smooth surface, high hardness, continuous mesh, no deformation, high temperature resistance, corrosion resistance, soft mesh, etc., has excellent filtration performance, good filtration accuracy, high load strength, high temperature resistance, low temperature resistance, etc.
5. Specifications: The general length is 10 meters long, the width is 40mm-210mm, the mesh number is 40-350 mesh, and the maximum width can reach 50 cm. Special specifications can be customized.
6. Purpose: Suitable for filtration of Austrian Lenzing equipment, wire drawing machines, cast film machines and coating machines in Germany, Japan and other countries. Domestic equipment, Lanfei 90 plastic machine, Changzhou Hengli plastic machine, Yantai plastic machine, etc., are widely used in plastic woven bags, plastic film, etc., aerospace, petroleum, chemical, chemical fiber, machinery, plastic products, scientific research and production. Transportation and other industries. Automatic belt filter for plastic extruder, plastic melt filter, plastic belt filter. The products are running well and are often exported to Southeast Asia, Britain, Germany, Japan, the United States, South Africa, Indonesia, Thailand and other countries and regions in cooperation with filtration equipment.
Feature of stainless steel woven wire mesh screen
Square hole, high circulation, relatively high opening area, so the pressure drop is small during filtration, suitable for various filtrations up to 63μm
Some steels are very tough at very low temperatures, while others maintain strength at very high temperatures.
Most stainless steels can be easily fabricated in a variety of weaving types in a loom.
Stainless steel wire mesh can withstand all weather conditions and is highly aesthetically appealing in architectural applications such as fences and wall coverings.
Stainless steel is easy to maintain in terms of hygienic properties and cleaning ability, which is why stainless steel is also used in the pharmaceutical and food industries.
Stainless steel wire mesh is extremely durable and can withstand harsh environments for extended periods of time. This means that stainless steel can be classified as a low-maintenance material, so this is often a cost-effective option in terms of cost-period life cycle comparisons.
Parameter of stainless steel mesh
| mesh |
Wire Diameter |
Aperture |
Open Area |
Weight |
| Inch |
MM |
Inch |
MM |
(%) |
(kg /Square meter) |
| 1x1 |
0.08 |
2.03 |
0.92 |
23.37 |
92 |
2 |
| 2X2 |
0.063 |
1.6 |
0.437 |
11.1 |
87.4 |
2.5 |
| 3X3 |
0.054 |
1.37 |
0.279 |
7.09 |
83.8 |
2.7 |
| 4X4 |
0.047 |
1.19 |
0.203 |
5.16 |
81.2 |
2.7 |
| 5X5 |
0.041 |
1.04 |
0.159 |
4.04 |
79.5 |
2.6 |
| 8X8 |
0.02 |
0.5 |
0.105 |
2.675 |
71 |
1 |
| 9X9 |
0.02 |
0.5 |
0.091 |
2.32 |
67.7 |
1.1 |
| 10X10 |
0.025 |
0.64 |
0.075 |
1.91 |
74.9 |
2 |
| 12X12 |
0.02 |
0.508 |
0.063 |
1.6 |
75.9 |
1.5 |
| 12X12 |
0.022 |
0.55 |
0.062 |
1.567 |
54.8 |
1.815 |
| 14X14 |
0.02 |
0.508 |
0.051 |
1.3 |
71.9 |
1.8 |
| 14X14 |
0.0177 |
0.45 |
0.054 |
1.36 |
75.14 |
1.417 |
| 16X16 |
0.016 |
0.4 |
0.047 |
1.188 |
55 |
1.28 |
| 16X16 |
0.018 |
0.457 |
0.0445 |
1.13 |
71.2 |
1.6 |
| 18X18 |
0.017 |
0.432 |
0.0386 |
0.98 |
69.4 |
1.6 |
| 20X20 |
0.02 |
0.24 |
0.03 |
0.76 |
76 |
0.56 |
| 20X20 |
0.016 |
0.33 |
0.034 |
0.86 |
72.2 |
1.1 |
| 20X20 |
0.014 |
0.35 |
0.036 |
0.92 |
52.5 |
1.225 |
| 20X20 |
0.016 |
0.4 |
0.034 |
0.87 |
46.9 |
1.6 |
| 20X20 |
0.0177 |
0.45 |
0.0322 |
0.82 |
41.7 |
2.025 |
| 22X22 |
0.012 |
0.3 |
0.034 |
0.854 |
54.76 |
0.99 |
| 24X24 |
0.014 |
0.35 |
0.028 |
0.708 |
44.77 |
1.47 |
| 30X30 |
0.014 |
0.35 |
0.0195 |
0.5 |
34.6 |
1.84 |
| 30X30 |
0.012 |
0.305 |
0.0213 |
0.54 |
63.9 |
1.4 |
| 30X30 |
0.0094 |
0.24 |
0.0243 |
0.62 |
72.1 |
0.84 |
| 35X35 |
0.0079 |
0.2 |
0.021 |
0.526 |
52.5 |
0.7 |
| 35X35 |
0.0098 |
0.25 |
0.0187 |
0.475 |
42.92 |
1.09 |
| 40X40 |
0.0079 |
0.2 |
0.017 |
0.435 |
46.9 |
0.8 |
| 40X40 |
0.01 |
0.254 |
0.015 |
0.38 |
59.9 |
1.3 |
| 40X40 |
0.014 |
0.35 |
0.011 |
0.285 |
20.14 |
2.45 |
| 50X50 |
0.0055 |
0.14 |
0.0145 |
0.368 |
72.4 |
0.48 |
| 50X50 |
0.0079 |
0.2 |
0.012 |
0.308 |
36.76 |
1 |
| 60X60 |
0.0047 |
0.12 |
0.012 |
0.303 |
71.6 |
0.42 |
| 60X60 |
0.0059 |
0.15 |
0.0107 |
0.273 |
64.5 |
0.65 |
| 60X60 |
0.007 |
0.18 |
0.0096 |
0.243 |
33 |
0.972 |
| 80X80 |
0.047 |
0.12 |
0.0078 |
0.1975 |
38.7 |
0.576 |
| 80X80 |
0.0055 |
0.14 |
0.0069 |
0.117 |
45.5 |
0.76 |
| 100X100 |
0.0039 |
0.1 |
0.006 |
0.154 |
36.76 |
0.5 |
| 100X100 |
0.0045 |
0.114 |
0.0055 |
0.14 |
55.1 |
0.59 |
| 100X100 |
0.004 |
0.102 |
0.006 |
0.152 |
59.8 |
0.49 |
| 120X120 |
0.0028 |
0.07 |
0.0057 |
0.147 |
67.7 |
0.29 |
| 120X120 |
0.003 |
0.08 |
0.0052 |
0.132 |
38.7 |
0.384 |
| 150X150 |
0.0024 |
0.06 |
0.0043 |
0.11 |
64.7 |
0.26 |
| 150X150 |
0.0028 |
0.07 |
0.0039 |
0.1 |
58.8 |
0.38 |
| 165X165 |
0.0019 |
0.05 |
0.0041 |
0.104 |
67.5 |
0.2 |
| 180X180 |
0.0019 |
0.05 |
0.0035 |
0.091 |
64.5 |
0.22 |
| 180X180 |
0.0024 |
0.06 |
0.0031 |
0.081 |
57.4 |
0.32 |
| 200X200 |
0.0019 |
0.05 |
0.003 |
0.077 |
60.6 |
0.24 |
| 200X200 |
0.0024 |
0.06 |
0.0026 |
0.067 |
52.7 |
0.35 |
| 250X250 |
0.0016 |
0.04 |
0.0024 |
0.0616 |
60.6 |
0.2 |
| 270X270 |
0.0016 |
0.04 |
0.0021 |
0.054 |
57.4 |
0.21 |
| 300X300 |
0.0016 |
0.04 |
0.0018 |
0.045 |
53.5 |
0.23 |
| 325X325 |
0.0014 |
0.035 |
0.0017 |
0.0432 |
55.3 |
0.2 |
| 400X400 |
0.0012 |
0.03 |
0.0013 |
0.0335 |
52.7 |
0.18 |
| 500X500 |
0.0009 |
0.025 |
0.001 |
0.0258 |
50.7 |
0.15 |
| 500X500 |
0.0012 |
0.03 |
0.0008 |
0.0208 |
16.76 |
0.225 |
| 635X635 |
0.0007 |
0.018 |
0.0008 |
0.022 |
55 |
0.1 |
