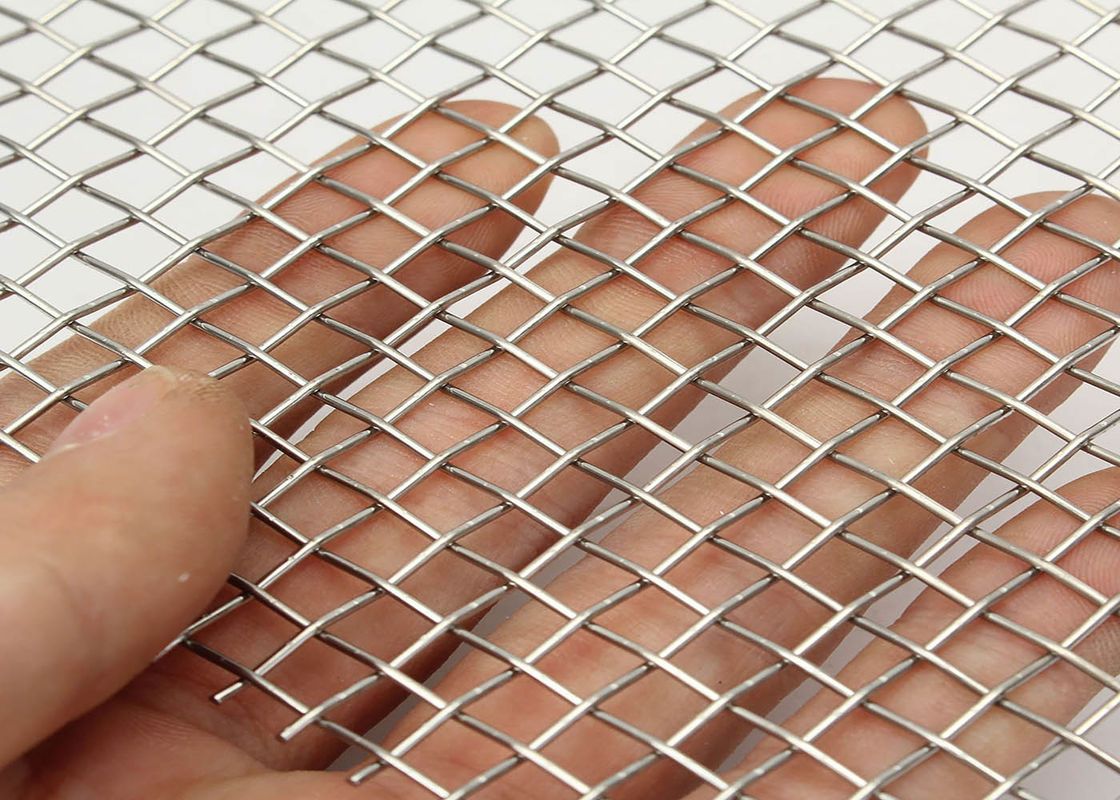

304 Stainless Steel Decorative Wire Mesh Alkali Resisting Environmentally Friendly For BBQ

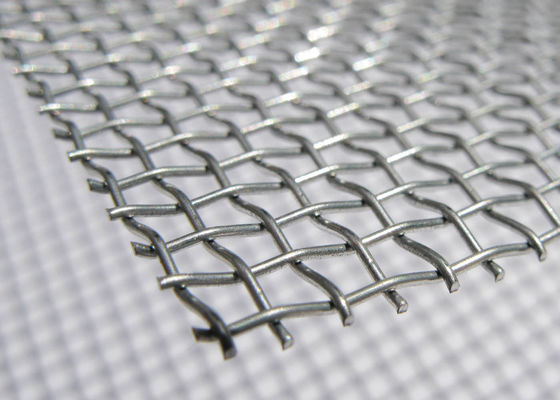

Description of the stainless steel mesh
410/430 stainless steel wire mesh is magnetic and has good corrosion resistance, while 410/430 has good stress corrosion and oxidation resistance. Thermal conductivity is better than austenitic stainless steel series. Its thermal expansion coefficient is smaller than austenite. Heat fatigue resistance, adding stable element titanium, good mechanical properties of welded parts. It is safe and non-toxic, with the same sanitation and safety level as 304 stainless steel, and the price of 304 stainless steel is higher. 410/430 steel wire mesh is mainly used to make parts resistant to air, steam, water and oxidizing acid corrosion. 410/430 steel wire mesh can also be used for industrial filtration, food industry filtration, sugar industry filtration, etc.
The stainless steel mesh is processed by using 304, 304L, 316, 316L, 310, 310s and other metal wires. The surface is smooth, non-corrosive, corrosion-resistant, toxic, hygienic and environmentally friendly. Uses: hospitals, pasta, meat snacks, life flower baskets, fruit basket series mostly stainless steel wire mesh, using electrolytic grinding technology to open the surface treatment, the surface is bright as a mirror.
Stainless steel mesh according to weaving classification:
1, plain weave
2, twill weave
3. stainless steel wire mesh, split plain weave. Twill weave, stainless steel wire mesh size 20 mesh - 630 mesh. Material: SUS304, 304l, SUS316, SUS316L, 31 0, 310S, SUS302, etc.
Feature of stainless steel mesh
Stainless steel is resistant to high temperatures, acids, corrosion and abrasion. Because of these characteristics, stainless steel mesh is widely used in mining, chemical, food, petroleum, pharmaceutical, etc., mainly used for gas, liquid filter and other media separation.
For the oxidizing acid, it was found in the experiment that the 304 stainless steel wire mesh has strong corrosion resistance in the nitric acid below the boiling temperature of ≤ 65%. It also has good corrosion resistance to alkaline solutions and most organic and inorganic acids.
Uses: for sieving and filtration under acid and alkali conditions
Parameter of stainless steel mesh
| mesh |
Wire Diameter |
Aperture |
Open Area |
Weight |
| Inch |
MM |
Inch |
MM |
(%) |
(kg /Square meter) |
| 1x1 |
0.08 |
2.03 |
0.92 |
23.37 |
92 |
2 |
| 2X2 |
0.063 |
1.6 |
0.437 |
11.1 |
87.4 |
2.5 |
| 3X3 |
0.054 |
1.37 |
0.279 |
7.09 |
83.8 |
2.7 |
| 4X4 |
0.047 |
1.19 |
0.203 |
5.16 |
81.2 |
2.7 |
| 5X5 |
0.041 |
1.04 |
0.159 |
4.04 |
79.5 |
2.6 |
| 8X8 |
0.02 |
0.5 |
0.105 |
2.675 |
71 |
1 |
| 9X9 |
0.02 |
0.5 |
0.091 |
2.32 |
67.7 |
1.1 |
| 10X10 |
0.025 |
0.64 |
0.075 |
1.91 |
74.9 |
2 |
| 12X12 |
0.02 |
0.508 |
0.063 |
1.6 |
75.9 |
1.5 |
| 12X12 |
0.022 |
0.55 |
0.062 |
1.567 |
54.8 |
1.815 |
| 14X14 |
0.02 |
0.508 |
0.051 |
1.3 |
71.9 |
1.8 |
| 14X14 |
0.0177 |
0.45 |
0.054 |
1.36 |
75.14 |
1.417 |
| 16X16 |
0.016 |
0.4 |
0.047 |
1.188 |
55 |
1.28 |
| 16X16 |
0.018 |
0.457 |
0.0445 |
1.13 |
71.2 |
1.6 |
| 18X18 |
0.017 |
0.432 |
0.0386 |
0.98 |
69.4 |
1.6 |
| 20X20 |
0.02 |
0.24 |
0.03 |
0.76 |
76 |
0.56 |
| 20X20 |
0.016 |
0.33 |
0.034 |
0.86 |
72.2 |
1.1 |
| 20X20 |
0.014 |
0.35 |
0.036 |
0.92 |
52.5 |
1.225 |
| 20X20 |
0.016 |
0.4 |
0.034 |
0.87 |
46.9 |
1.6 |
| 20X20 |
0.0177 |
0.45 |
0.0322 |
0.82 |
41.7 |
2.025 |
| 22X22 |
0.012 |
0.3 |
0.034 |
0.854 |
54.76 |
0.99 |
| 24X24 |
0.014 |
0.35 |
0.028 |
0.708 |
44.77 |
1.47 |
| 30X30 |
0.014 |
0.35 |
0.0195 |
0.5 |
34.6 |
1.84 |
| 30X30 |
0.012 |
0.305 |
0.0213 |
0.54 |
63.9 |
1.4 |
| 30X30 |
0.0094 |
0.24 |
0.0243 |
0.62 |
72.1 |
0.84 |
| 35X35 |
0.0079 |
0.2 |
0.021 |
0.526 |
52.5 |
0.7 |
| 35X35 |
0.0098 |
0.25 |
0.0187 |
0.475 |
42.92 |
1.09 |
| 40X40 |
0.0079 |
0.2 |
0.017 |
0.435 |
46.9 |
0.8 |
| 40X40 |
0.01 |
0.254 |
0.015 |
0.38 |
59.9 |
1.3 |
| 40X40 |
0.014 |
0.35 |
0.011 |
0.285 |
20.14 |
2.45 |
| 50X50 |
0.0055 |
0.14 |
0.0145 |
0.368 |
72.4 |
0.48 |
| 50X50 |
0.0079 |
0.2 |
0.012 |
0.308 |
36.76 |
1 |
| 60X60 |
0.0047 |
0.12 |
0.012 |
0.303 |
71.6 |
0.42 |
| 60X60 |
0.0059 |
0.15 |
0.0107 |
0.273 |
64.5 |
0.65 |
| 60X60 |
0.007 |
0.18 |
0.0096 |
0.243 |
33 |
0.972 |
| 80X80 |
0.047 |
0.12 |
0.0078 |
0.1975 |
38.7 |
0.576 |
| 80X80 |
0.0055 |
0.14 |
0.0069 |
0.117 |
45.5 |
0.76 |
| 100X100 |
0.0039 |
0.1 |
0.006 |
0.154 |
36.76 |
0.5 |
| 100X100 |
0.0045 |
0.114 |
0.0055 |
0.14 |
55.1 |
0.59 |
| 100X100 |
0.004 |
0.102 |
0.006 |
0.152 |
59.8 |
0.49 |
| 120X120 |
0.0028 |
0.07 |
0.0057 |
0.147 |
67.7 |
0.29 |
| 120X120 |
0.003 |
0.08 |
0.0052 |
0.132 |
38.7 |
0.384 |
| 150X150 |
0.0024 |
0.06 |
0.0043 |
0.11 |
64.7 |
0.26 |
| 150X150 |
0.0028 |
0.07 |
0.0039 |
0.1 |
58.8 |
0.38 |
| 165X165 |
0.0019 |
0.05 |
0.0041 |
0.104 |
67.5 |
0.2 |
| 180X180 |
0.0019 |
0.05 |
0.0035 |
0.091 |
64.5 |
0.22 |
| 180X180 |
0.0024 |
0.06 |
0.0031 |
0.081 |
57.4 |
0.32 |
| 200X200 |
0.0019 |
0.05 |
0.003 |
0.077 |
60.6 |
0.24 |
| 200X200 |
0.0024 |
0.06 |
0.0026 |
0.067 |
52.7 |
0.35 |
| 250X250 |
0.0016 |
0.04 |
0.0024 |
0.0616 |
60.6 |
0.2 |
| 270X270 |
0.0016 |
0.04 |
0.0021 |
0.054 |
57.4 |
0.21 |
| 300X300 |
0.0016 |
0.04 |
0.0018 |
0.045 |
53.5 |
0.23 |
| 325X325 |
0.0014 |
0.035 |
0.0017 |
0.0432 |
55.3 |
0.2 |
| 400X400 |
0.0012 |
0.03 |
0.0013 |
0.0335 |
52.7 |
0.18 |
| 500X500 |
0.0009 |
0.025 |
0.001 |
0.0258 |
50.7 |
0.15 |
| 500X500 |
0.0012 |
0.03 |
0.0008 |
0.0208 |
16.76 |
0.225 |
| 635X635 |
0.0007 |
0.018 |
0.0008 |
0.022 |
55 |
0.1 |
