Product Details:
Payment & Shipping Terms:
|
Material: | 304 Stainless Steel | Usage: | Filter |
---|---|---|---|
Weave Style: | Plain Weave | Mesh Count: | 60 Mesh |
Product Name: | 316 3 Micron Hole Dutch Ultra Fine Stainless Steel Filter Wire Mesh High Tension | Advantage: | High Strength |
Application: | Filters | Type: | Weave Wire Mesh |
High Light: | galvanized woven wire mesh,woven wire mesh sheets |

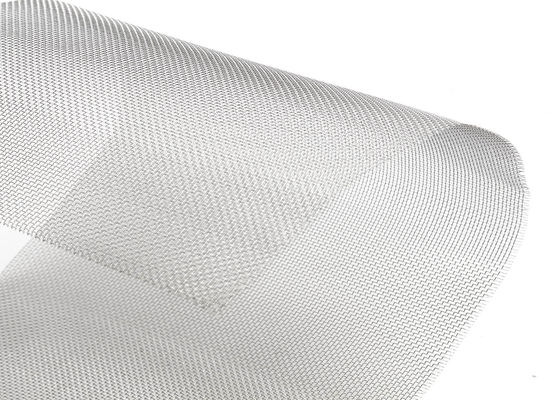

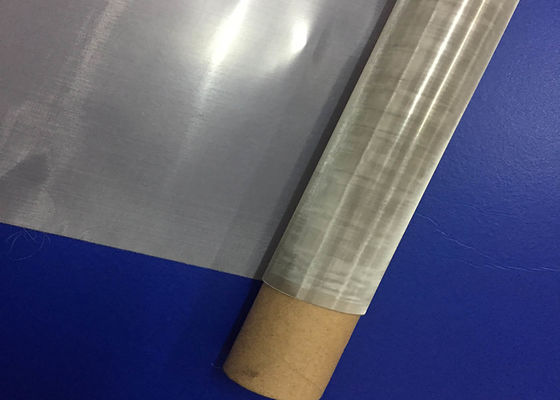

316 3 Micron Hole Dutch Ultra Fine Stainless Steel Filter Wire Mesh High Tension
Description of the stainless steel mesh
1. stainless steel mesh standard roll width: 1m or 48"
2. stainless steel wire mesh standard roll length: 30m or 100'
3. stainless steel wire mesh material: AISI 304 or 316
4, plain weave
5, twill weave
6. stainless steel wire mesh, split plain weave. Twill weave, stainless steel wire mesh size 20 mesh - 630 mesh. Material: SUS304, 304l, SUS316, SUS316L, 31 0, 310S, SUS302, etc.
7.Micron SS wire mesh usually refers to a fine open mesh made of thin wires and precision holes. We offer two types of micron filters: braided wire micron mesh and sintered micron mesh.
8.Micron mesh material and general dimensions:
9.Material: stainless steel wire 201, 202, 304, 304L, 316, 316L, 321, 430, etc.
10.Standard roll width: 1 to 48 inches
11.Standard roll length: 30m to 100"
12.Grid: 1-635mesh
13.Wire diameter: 0.05-1.5mm (usually 0.25-0.80mm)
14.Micron stainless steel wire mesh is a surface filter type medium. It is made by weaving a specific wire in a predetermined pattern to form holes of different shapes and sizes. Ordinary square, twill square, plain Dutch and twill Dutch patterns are common weave patterns.
Technical Description:
1.Standard width stainless steel wire mesh: 1 or 48 inches; stainless steel wire mesh with an additional roll width of 4 meters is also available.
2.Stainless steel wire mesh with standard roll length: 30 m or 100'.
3.Plain weave description:
Plain weave is a commonly used weaving method. The warp, the length of the wire mesh and the weft are determined, parallel to the width, intersecting each other, alternating one at the top and below, forming a 90° angle with each other.
The solid woven wire mesh can have a square or rectangular opening.
Plain weave mesh clothing is a basic component of filters, food colanders, chemicals, shielding, mosquito nets and other production.
Feature of stainless steel mesh
1.Stainless steel is resistant to high temperatures, acids, corrosion and abrasion. Because of these characteristics, stainless steel mesh is widely used in mining, chemical, food, petroleum, pharmaceutical, etc., mainly used for gas, liquid filter and other media separation.
2.Stainless steel is resistant to high temperatures, acids, corrosion and abrasion. Because of these characteristics, stainless steel mesh is widely used in mining, chemical, food, petroleum, pharmaceutical, etc., mainly used for gas, liquid filter and other media separation.
Main purpose of stainless steel mesh:
1.Chemicals: filtration of acid and alkali solutions, chemical experiments, chemical particle filtration, corrosive gas filtration, corrosive dust filtration, etc.
2.Petroleum: oil purification, oil slurry filtration, impurity separation, etc.
3.Medicine: Chinese medicine decoction filtration, solid particle filtration, medicine purification, etc.
4.Electronic products: circuit board structure frame, electronic components, acid-base batteries, radiation protection modules, etc.
5.Printing: ink filtration, toner filtration, toner purification, etc.
6.Machinery: vibrating screen, etc.
Parameter of stainless steel mesh
mesh | Wire Diameter | Aperture | Open Area | Weight | ||
Inch | MM | Inch | MM | (%) | (kg /Square meter) | |
1x1 | 0.08 | 2.03 | 0.92 | 23.37 | 92 | 2 |
2X2 | 0.063 | 1.6 | 0.437 | 11.1 | 87.4 | 2.5 |
3X3 | 0.054 | 1.37 | 0.279 | 7.09 | 83.8 | 2.7 |
4X4 | 0.047 | 1.19 | 0.203 | 5.16 | 81.2 | 2.7 |
5X5 | 0.041 | 1.04 | 0.159 | 4.04 | 79.5 | 2.6 |
8X8 | 0.02 | 0.5 | 0.105 | 2.675 | 71 | 1 |
9X9 | 0.02 | 0.5 | 0.091 | 2.32 | 67.7 | 1.1 |
10X10 | 0.025 | 0.64 | 0.075 | 1.91 | 74.9 | 2 |
12X12 | 0.02 | 0.508 | 0.063 | 1.6 | 75.9 | 1.5 |
12X12 | 0.022 | 0.55 | 0.062 | 1.567 | 54.8 | 1.815 |
14X14 | 0.02 | 0.508 | 0.051 | 1.3 | 71.9 | 1.8 |
14X14 | 0.0177 | 0.45 | 0.054 | 1.36 | 75.14 | 1.417 |
16X16 | 0.016 | 0.4 | 0.047 | 1.188 | 55 | 1.28 |
16X16 | 0.018 | 0.457 | 0.0445 | 1.13 | 71.2 | 1.6 |
18X18 | 0.017 | 0.432 | 0.0386 | 0.98 | 69.4 | 1.6 |
20X20 | 0.02 | 0.24 | 0.03 | 0.76 | 76 | 0.56 |
20X20 | 0.016 | 0.33 | 0.034 | 0.86 | 72.2 | 1.1 |
20X20 | 0.014 | 0.35 | 0.036 | 0.92 | 52.5 | 1.225 |
20X20 | 0.016 | 0.4 | 0.034 | 0.87 | 46.9 | 1.6 |
20X20 | 0.0177 | 0.45 | 0.0322 | 0.82 | 41.7 | 2.025 |
22X22 | 0.012 | 0.3 | 0.034 | 0.854 | 54.76 | 0.99 |
24X24 | 0.014 | 0.35 | 0.028 | 0.708 | 44.77 | 1.47 |
30X30 | 0.014 | 0.35 | 0.0195 | 0.5 | 34.6 | 1.84 |
30X30 | 0.012 | 0.305 | 0.0213 | 0.54 | 63.9 | 1.4 |
30X30 | 0.0094 | 0.24 | 0.0243 | 0.62 | 72.1 | 0.84 |
35X35 | 0.0079 | 0.2 | 0.021 | 0.526 | 52.5 | 0.7 |
35X35 | 0.0098 | 0.25 | 0.0187 | 0.475 | 42.92 | 1.09 |
40X40 | 0.0079 | 0.2 | 0.017 | 0.435 | 46.9 | 0.8 |
40X40 | 0.01 | 0.254 | 0.015 | 0.38 | 59.9 | 1.3 |
40X40 | 0.014 | 0.35 | 0.011 | 0.285 | 20.14 | 2.45 |
50X50 | 0.0055 | 0.14 | 0.0145 | 0.368 | 72.4 | 0.48 |
50X50 | 0.0079 | 0.2 | 0.012 | 0.308 | 36.76 | 1 |
60X60 | 0.0047 | 0.12 | 0.012 | 0.303 | 71.6 | 0.42 |
60X60 | 0.0059 | 0.15 | 0.0107 | 0.273 | 64.5 | 0.65 |
60X60 | 0.007 | 0.18 | 0.0096 | 0.243 | 33 | 0.972 |
80X80 | 0.047 | 0.12 | 0.0078 | 0.1975 | 38.7 | 0.576 |
80X80 | 0.0055 | 0.14 | 0.0069 | 0.117 | 45.5 | 0.76 |
100X100 | 0.0039 | 0.1 | 0.006 | 0.154 | 36.76 | 0.5 |
100X100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 55.1 | 0.59 |
100X100 | 0.004 | 0.102 | 0.006 | 0.152 | 59.8 | 0.49 |
120X120 | 0.0028 | 0.07 | 0.0057 | 0.147 | 67.7 | 0.29 |
120X120 | 0.003 | 0.08 | 0.0052 | 0.132 | 38.7 | 0.384 |
150X150 | 0.0024 | 0.06 | 0.0043 | 0.11 | 64.7 | 0.26 |
150X150 | 0.0028 | 0.07 | 0.0039 | 0.1 | 58.8 | 0.38 |
165X165 | 0.0019 | 0.05 | 0.0041 | 0.104 | 67.5 | 0.2 |
180X180 | 0.0019 | 0.05 | 0.0035 | 0.091 | 64.5 | 0.22 |
180X180 | 0.0024 | 0.06 | 0.0031 | 0.081 | 57.4 | 0.32 |
200X200 | 0.0019 | 0.05 | 0.003 | 0.077 | 60.6 | 0.24 |
200X200 | 0.0024 | 0.06 | 0.0026 | 0.067 | 52.7 | 0.35 |
250X250 | 0.0016 | 0.04 | 0.0024 | 0.0616 | 60.6 | 0.2 |
270X270 | 0.0016 | 0.04 | 0.0021 | 0.054 | 57.4 | 0.21 |
300X300 | 0.0016 | 0.04 | 0.0018 | 0.045 | 53.5 | 0.23 |
325X325 | 0.0014 | 0.035 | 0.0017 | 0.0432 | 55.3 | 0.2 |
400X400 | 0.0012 | 0.03 | 0.0013 | 0.0335 | 52.7 | 0.18 |
500X500 | 0.0009 | 0.025 | 0.001 | 0.0258 | 50.7 | 0.15 |
500X500 | 0.0012 | 0.03 | 0.0008 | 0.0208 | 16.76 | 0.225 |
635X635 | 0.0007 | 0.018 | 0.0008 | 0.022 | 55 | 0.1 |
