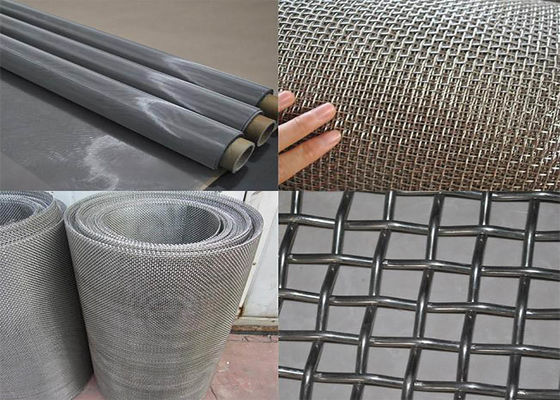

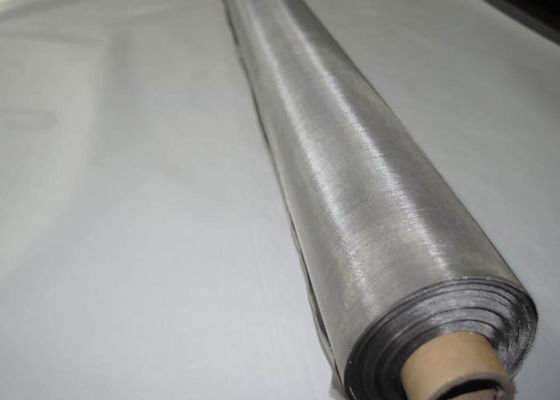

Corrosion Resistant FDA 304 316 310S Stainless Steel Woven Wire Mesh Filter Cloth
Description
Stainless steel wire: Aisi 304, 304L, 316, 316L, 310, 314, 410, 430.
Special steel: Cromax, Incoloy, Inconel, Inconel, Nikkor, Monel, titanium alloy, dual phase steel.
Woven wire mesh can also be provided with carbon steel, low carbon steel, galvanized steel, brass, bronze, copper, aluminum alloy, etc.

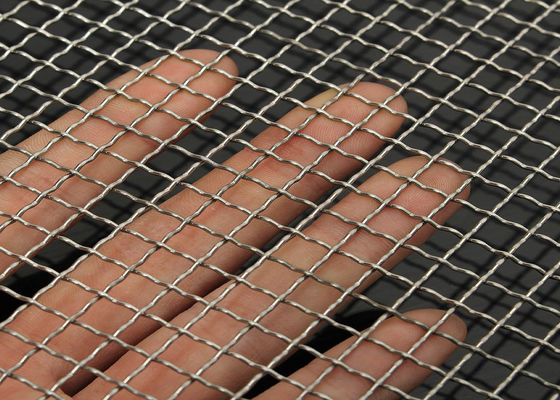

Tabby plain weave netting features:
Stainless steel mesh plain weave, high filtration efficiency, low pressure loss, constant mesh opening, good dimensional stability, large opening area, and good fire resistance.
304 is an industry standard stainless steel woven mesh.
Depending on the application and environment, SS304 has good oxidation resistance at temperatures from about 870 ° C to 925 ° C. If you need higher heat resistance, we recommend using 316.
SS304 can be used in many applications. It is commonly found in kitchens, wine and beer making equipment, chemical containers, building panels and quarries.
Composition - C 0.08, Mn 2.0, Si 0.75, P 0.045, S 0.030, Cr 20.0, Ni 10.5, N 0.10
SS304 also has excellent molding and soldering properties.
Stainless steel mesh according to weaving classification:
1. plain weave
2. twill weave
3. Material: SUS304, 304l, SUS316, SUS316L, 31 0, 310S, SUS302, etc.
Feature of stainless steel mesh
Chemicals: acid-base solution filtration, chemical experiments, chemical particle filtration, corrosive gas filtration, corrosive dust filtration, etc.
Petroleum: petroleum purification, oil slurry filtration, separation of impurities, etc.
Medicine: Chinese medicine decoction filtration, solid particle filtration, drug purification, etc.
Electronics: circuit board structure frame, electronic components, acid and alkali batteries, radiation protection modules, etc.
Printing: ink filtration, toner filtration, toner purification, etc.
Machinery: vibrating screen, etc.
Main purpose of stainless steel mesh:
► Chemicals: acid-base solution filtration, chemical experiments, chemical particle filtration, corrosive gas filtration, corrosive dust filtration, etc.
► Petroleum: petroleum purification, oil slurry filtration, separation of impurities, etc.
► Medicine: Chinese medicine decoction filtration, solid particle filtration, drug purification, etc.
► Electronics: circuit board structure frame, electronic components, acid and alkali batteries, radiation protection modules, etc.
► Printing: ink filtration, toner filtration, toner purification, etc.
► Machinery: vibrating screen, etc.
Parameter of stainless steel mesh
| Mesh |
Wire Gauge SWG |
Wire Diameter (MM) |
Aperture(MM) |
Weight
(kg /Square meter)
|
| 20 |
25 |
0.5 |
0.61 |
2.6 |
| 18 |
23 |
0.61 |
0.8 |
3.4 |
| 16 |
24 |
0.55 |
0.1 |
2.5 |
| 14 |
24 |
0.55 |
0.12 |
4 |
| 12 |
22 |
0.71 |
0.14 |
2.94 |
| 2.3 |
19 |
1 |
0.18 |
1.45 |
| 1.2 |
6 |
4.8 |
2 |
20 |
| 1 |
6 |
4.8 |
2 |
20 |
| 0.7 |
6 |
4.8 |
3 |
14 |
| 5.08 |
14 |
2 |
0.3 |
12 |
| 2.1 |
14 |
2 |
1 |
2.5 |
| 3.6 |
14 |
2 |
1.5 |
1.9 |
