304 Stainless Steel Woven Wire 120 Mesh 0.125MM Hole 80Um Wire Diameter For Filtration

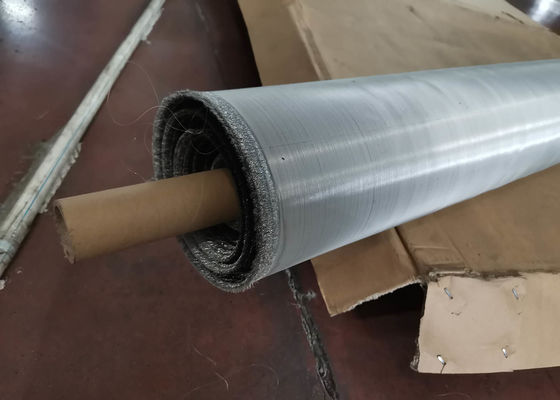

Large Image : 304 Stainless Steel Woven Wire 120 Mesh 0.125MM Hole 80Um Wire Diameter For Filtration

Product Details:

Place of Origin:	Hebei
Brand Name:	R&K
Certification:	SGS
Model Number:	SS-18

Payment & Shipping Terms:

Minimum Order Quantity:	1 squaremeter
Price:	Negotiate
Packaging Details:	inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet
Delivery Time:	5-8 workday
Payment Terms:	L/C, D/P, T/T, Western Union，PayPal
Supply Ability:	1000 squaremeter per week

Contact Now

Detailed Product Description

Material:	AISI 316	Usage:	FWater Ilter
Weave Style:	Plain Weave	Aperture:	50 100 150 200 Micron
Color:	Silver	Advantage:	High Strength
Type:	Wire Cloth	Hole Shape:	Square Hole
High Light:	ss316 mesh cloth , AISI stainless steel mesh cloth , 200Micron stainless steel mesh cloth

304 Stainless Steel Woven Wire 120 Mesh 0.125MM Hole 80Um Wire Diameter For Filtration

Descriptions of the stainless steel wire mesh:

The stainless steel wire mesh is of high quality: the braided wire is made of 304L stainless steel, which is wear-resistant, durable and has a long service life

Specifications-120 mesh, 12" X40" (30cmx100cm) size, 0.125mm hole, 80μm wire diameter, 33% opening area

Easy to use-filter things in life, such as septa, sieve powder, etc.

Suitable for filtration in petroleum, chemical, mineral, food, pharmaceutical, paint and other industries

Mainly used in air conditioners, purifiers, range hoods, air filters, dehumidifiers and dust collectors, suitable for various filtration, dust removal and separation requirements.

Product name	304 Stainless Steel Woven Wire 120 Mesh 0.125MM Hole 80Um Wire Diameter For Filtration
Mesh Count	1 mesh - 2800 mesh
Material	SUS302 201 304 304L 316 316L 310 310S, etc
Weave style	plain weave (plain / twill) plate type dense weave and stainless steel welded wire mesh
Hole size	50 100 150 200 Micron
Usage	Water Filter
Width	1m,1.22m
Length	30m per roll

Feature of stainless steel mesh

The mesh is used to screen or screen fine particles.

Plain weave wire cloth is used for most of the wire mesh weaving. Each warp alternates above and below each weft, and vice versa.

The warp and weft threads usually have the same diameter.

Plain weave is used in most commercial applications and filtration that requires high flow rates.

For best results, simply build a wooden frame to keep the mesh rigid and place the material on top of the mesh. This will screen particles below 100 microns as needed.

Application of the stainless steel wire mesh:

Stainless steel wire mesh is mainly used in mining, petrochemical, food, pharmaceutical, machinery manufacturing and other industries... for screening and filtering in acid and alkaline environments, mud mesh for the petroleum industry, screening and electroplating in the chemical and chemical industries Industry fiber industry, pickling industry pickling net.

Parameter of stainless steel mesh

mesh	Wire Diameter		Aperture		Weight
	Wire Diameter		Aperture		Weight
	Inch	MM	Inch	MM	(kg /Square meter)
1x1	0.08	2.03	0.92	23.37	2
2X2	0.063	1.6	0.437	11.1	2.5
3X3	0.054	1.37	0.279	7.09	2.7
4X4	0.047	1.19	0.203	5.16	2.7
5X5	0.041	1.04	0.159	4.04	2.6
8X8	0.02	0.5	0.105	2.675	1
9X9	0.02	0.5	0.091	2.32	1.1
10X10	0.025	0.64	0.075	1.91	2
12X12	0.02	0.508	0.063	1.6	1.5
14X14	0.02	0.508	0.051	1.3	1.8
16X16	0.016	0.4	0.047	1.188	1.28
16X16	0.018	0.457	0.0445	1.13	1.6
18X18	0.017	0.432	0.0386	0.98	1.6
20X20	0.02	0.24	0.03	0.76	0.56
20X20	0.016	0.4	0.034	0.87	1.6
20X20	0.0177	0.45	0.0322	0.82	2.025
22X22	0.012	0.3	0.034	0.854	0.99
24X24	0.014	0.35	0.028	0.708	1.47
30X30	0.014	0.35	0.0195	0.5	1.84
30X30	0.0094	0.24	0.0243	0.62	0.84
35X35	0.0079	0.2	0.021	0.526	0.7
35X35	0.0098	0.25	0.0187	0.475	1.09
40X40	0.0079	0.2	0.017	0.435	0.8
40X40	0.01	0.254	0.015	0.38	1.3
40X40	0.014	0.35	0.011	0.285	2.45
50X50	0.0055	0.14	0.0145	0.368	0.48
50X50	0.0079	0.2	0.012	0.308	1
60X60	0.0047	0.12	0.012	0.303	0.42
60X60	0.0059	0.15	0.0107	0.273	0.65
80X80	0.047	0.12	0.0078	0.1975	0.576
80X80	0.0055	0.14	0.0069	0.117	0.76
100X100	0.0039	0.1	0.006	0.154	0.5
100X100	0.0045	0.114	0.0055	0.14	0.59
100X100	0.004	0.102	0.006	0.152	0.49
120X120	0.0028	0.07	0.0057	0.147	0.29
120X120	0.003	0.08	0.0052	0.132	0.384
150X150	0.0024	0.06	0.0043	0.11	0.26
150X150	0.0028	0.07	0.0039	0.1	0.38
165X165	0.0019	0.05	0.0041	0.104	0.2
180X180	0.0019	0.05	0.0035	0.091	0.22
180X180	0.0024	0.06	0.0031	0.081	0.32
200X200	0.0019	0.05	0.003	0.077	0.24
200X200	0.0024	0.06	0.0026	0.067	0.35
250X250	0.0016	0.04	0.0024	0.0616	0.2
270X270	0.0016	0.04	0.0021	0.054	0.21
300X300	0.0016	0.04	0.0018	0.045	0.23
325X325	0.0014	0.035	0.0017	0.0432	0.2
400X400	0.0012	0.03	0.0013	0.0335	0.18
500X500	0.0009	0.025	0.001	0.0258	0.15
500X500	0.0012	0.03	0.0008	0.0208	0.225
635X635	0.0007	0.018	0.0008	0.022	0.1
