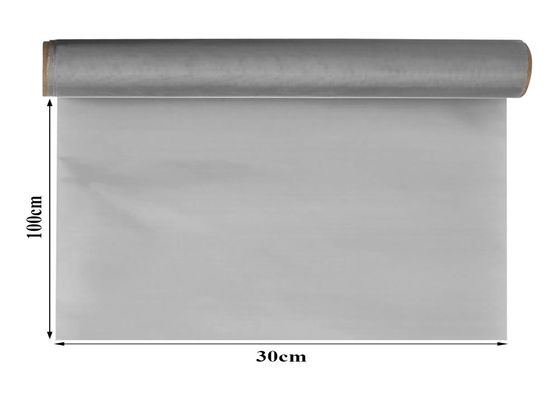

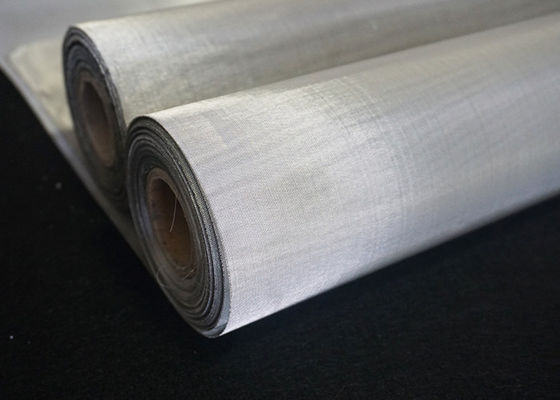

120 micron 304 stainless steel woven wire mesh for water filter

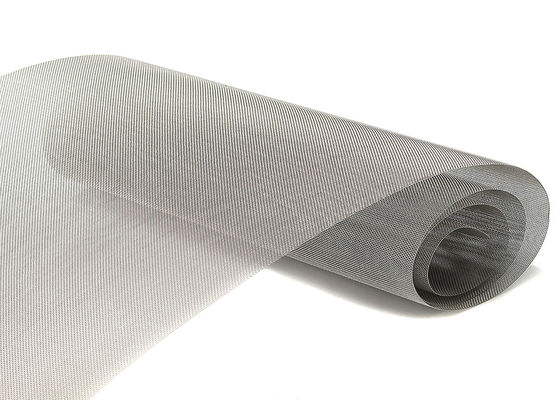

In Twilled Woven Wire Mesh, the weft and warp threads intersect at the top and bottom, and the intersection of the warp threads is reversed at a determined distance to obtain a rigid, stable and strong type of wire mesh fabric.
Crossed twill wire mesh is a fundamental component in the production of filters, food colanders, chemicals, shielding, mosquito nets, etc.
Wire:
Stainless steel wire: Aisi 304, 304L, 316, 316L, 310, 314, 410, 430.
Also available in carbon steel, galvanized steel, aluminum alloy, brass, phosphor bronze and other metal twill weave mesh.
Plain weave is a commonly used weaving method. The warp threads defining the length of the wire mesh and the weft are parallel to the width, intersect each other, alternate one at the top and below, forming a 90° angle between each other.
The solid woven wire mesh can have a square or rectangular opening.
Mai Shi plain weave stainless steel woven mesh/cloth has the characteristics of high filtration efficiency, small pressure loss, constant mesh opening, good dimensional stability, large opening area and good fireproof performance.
Product Application
widely used in aerospace, petroleum, chemical industry
scientific research and transportation industries
electroplating industry for pickling mesh, printing mesh
battery industry and a variety of sophisticated filtration products.
Product Features
Temperature resistance, acid resistance, alkali resistance.
The oil-water separation filter has a temperature resistance of 260 ° C
An acid resistance of 86%, and an alkali resistance of 90%.
Its function is to separate the water and oil in the oil.
It has a small resistance to the oil and allows the oil to pass smoothly.
It has a large resistance to the water. 10KG pressure water cannot pass through, so it plays the role of oil-water separation.
Parameter of stainless steel mesh
| mesh |
Wire Diameter |
Aperture |
Open Area |
Weight |
| Inch |
MM |
Inch |
MM |
(%) |
(kg /Square meter) |
| 1x1 |
0.08 |
2.03 |
0.92 |
23.37 |
92 |
2 |
| 2X2 |
0.063 |
1.6 |
0.437 |
11.1 |
87.4 |
2.5 |
| 3X3 |
0.054 |
1.37 |
0.279 |
7.09 |
83.8 |
2.7 |
| 4X4 |
0.047 |
1.19 |
0.203 |
5.16 |
81.2 |
2.7 |
| 5X5 |
0.041 |
1.04 |
0.159 |
4.04 |
79.5 |
2.6 |
| 8X8 |
0.02 |
0.5 |
0.105 |
2.675 |
71 |
1 |
| 9X9 |
0.02 |
0.5 |
0.091 |
2.32 |
67.7 |
1.1 |
| 10X10 |
0.025 |
0.64 |
0.075 |
1.91 |
74.9 |
2 |
| 12X12 |
0.02 |
0.508 |
0.063 |
1.6 |
75.9 |
1.5 |
| 12X12 |
0.022 |
0.55 |
0.062 |
1.567 |
54.8 |
1.815 |
| 14X14 |
0.02 |
0.508 |
0.051 |
1.3 |
71.9 |
1.8 |
| 14X14 |
0.0177 |
0.45 |
0.054 |
1.36 |
75.14 |
1.417 |
| 16X16 |
0.016 |
0.4 |
0.047 |
1.188 |
55 |
1.28 |
| 16X16 |
0.018 |
0.457 |
0.0445 |
1.13 |
71.2 |
1.6 |
| 18X18 |
0.017 |
0.432 |
0.0386 |
0.98 |
69.4 |
1.6 |
| 20X20 |
0.02 |
0.24 |
0.03 |
0.76 |
76 |
0.56 |
| 20X20 |
0.016 |
0.33 |
0.034 |
0.86 |
72.2 |
1.1 |
| 20X20 |
0.014 |
0.35 |
0.036 |
0.92 |
52.5 |
1.225 |
| 20X20 |
0.016 |
0.4 |
0.034 |
0.87 |
46.9 |
1.6 |
| 20X20 |
0.0177 |
0.45 |
0.0322 |
0.82 |
41.7 |
2.025 |
| 22X22 |
0.012 |
0.3 |
0.034 |
0.854 |
54.76 |
0.99 |
| 24X24 |
0.014 |
0.35 |
0.028 |
0.708 |
44.77 |
1.47 |
| 30X30 |
0.014 |
0.35 |
0.0195 |
0.5 |
34.6 |
1.84 |
| 30X30 |
0.012 |
0.305 |
0.0213 |
0.54 |
63.9 |
1.4 |
| 30X30 |
0.0094 |
0.24 |
0.0243 |
0.62 |
72.1 |
0.84 |
| 35X35 |
0.0079 |
0.2 |
0.021 |
0.526 |
52.5 |
0.7 |
| 35X35 |
0.0098 |
0.25 |
0.0187 |
0.475 |
42.92 |
1.09 |
| 40X40 |
0.0079 |
0.2 |
0.017 |
0.435 |
46.9 |
0.8 |
| 40X40 |
0.01 |
0.254 |
0.015 |
0.38 |
59.9 |
1.3 |
| 40X40 |
0.014 |
0.35 |
0.011 |
0.285 |
20.14 |
2.45 |
| 50X50 |
0.0055 |
0.14 |
0.0145 |
0.368 |
72.4 |
0.48 |
| 50X50 |
0.0079 |
0.2 |
0.012 |
0.308 |
36.76 |
1 |
| 60X60 |
0.0047 |
0.12 |
0.012 |
0.303 |
71.6 |
0.42 |
| 60X60 |
0.0059 |
0.15 |
0.0107 |
0.273 |
64.5 |
0.65 |
| 60X60 |
0.007 |
0.18 |
0.0096 |
0.243 |
33 |
0.972 |
| 80X80 |
0.047 |
0.12 |
0.0078 |
0.1975 |
38.7 |
0.576 |
| 80X80 |
0.0055 |
0.14 |
0.0069 |
0.117 |
45.5 |
0.76 |
| 100X100 |
0.0039 |
0.1 |
0.006 |
0.154 |
36.76 |
0.5 |
| 100X100 |
0.0045 |
0.114 |
0.0055 |
0.14 |
55.1 |
0.59 |
| 100X100 |
0.004 |
0.102 |
0.006 |
0.152 |
59.8 |
0.49 |
| 120X120 |
0.0028 |
0.07 |
0.0057 |
0.147 |
67.7 |
0.29 |
| 120X120 |
0.003 |
0.08 |
0.0052 |
0.132 |
38.7 |
0.384 |
| 150X150 |
0.0024 |
0.06 |
0.0043 |
0.11 |
64.7 |
0.26 |
| 150X150 |
0.0028 |
0.07 |
0.0039 |
0.1 |
58.8 |
0.38 |
| 165X165 |
0.0019 |
0.05 |
0.0041 |
0.104 |
67.5 |
0.2 |
| 180X180 |
0.0019 |
0.05 |
0.0035 |
0.091 |
64.5 |
0.22 |
| 180X180 |
0.0024 |
0.06 |
0.0031 |
0.081 |
57.4 |
0.32 |
| 200X200 |
0.0019 |
0.05 |
0.003 |
0.077 |
60.6 |
0.24 |
| 200X200 |
0.0024 |
0.06 |
0.0026 |
0.067 |
52.7 |
0.35 |
| 250X250 |
0.0016 |
0.04 |
0.0024 |
0.0616 |
60.6 |
0.2 |
| 270X270 |
0.0016 |
0.04 |
0.0021 |
0.054 |
57.4 |
0.21 |
| 300X300 |
0.0016 |
0.04 |
0.0018 |
0.045 |
53.5 |
0.23 |
| 325X325 |
0.0014 |
0.035 |
0.0017 |
0.0432 |
55.3 |
0.2 |
| 400X400 |
0.0012 |
0.03 |
0.0013 |
0.0335 |
52.7 |
0.18 |
| 500X500 |
0.0009 |
0.025 |
0.001 |
0.0258 |
50.7 |
0.15 |
| 500X500 |
0.0012 |
0.03 |
0.0008 |
0.0208 |
16.76 |
0.225 |
| 635X635 |
0.0007 |
0.018 |
0.0008 |
0.022 |
55 |
0.1 |
