200 Mesh 1mm Aperture 316 Stainless Woven Mesh Oil Filter Screen Longlife

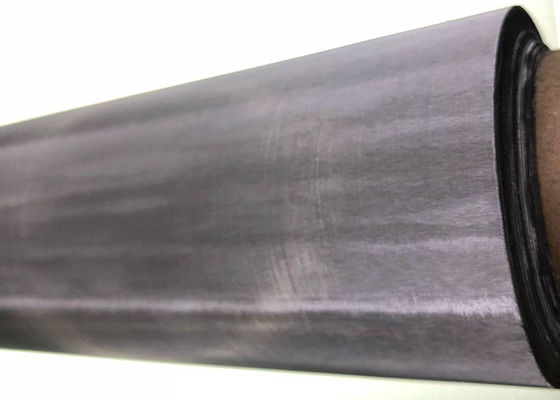

Large Image : 200 Mesh 1mm Aperture 316 Stainless Woven Mesh Oil Filter Screen Longlife

Product Details:

Place of Origin:	China
Brand Name:	R&K
Certification:	SGS
Model Number:	18 mesh

Payment & Shipping Terms:

Minimum Order Quantity:	30 squaremeter
Price:	Negotiate
Packaging Details:	plastic bag ,Outer package:carton
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	30 squaremeter per day

Contact Now

Detailed Product Description

Color:	Silver	Usage:	Filter Oil
Width:	Max To 2.5 Meter	Length:	Normal 30 Meters
Advantage:	Preservative	Material:	316 Stainless Steel Wire Mesh
High Light:	galvanized woven wire mesh , woven wire cloth mesh

200 mesh 1mm aperture 316 stainless steel woven wire mesh oil filter screen

Similar to 304, 316 grade stainless steel contains a large amount of chromium and nickel. 316 also contains silicon, manganese and carbon, most of which are iron. The main difference between 304 and 316 stainless steel is the chemical composition, where 316 contains a large amount of molybdenum. It is usually 2-3% by weight, and there is only a trace amount in 304. The higher molybdenum content gives the 316 grade a higher corrosion resistance.

316 stainless steel is generally considered to be one of the most suitable choices when selecting austenitic stainless steel for marine applications. Other common applications for 316 stainless steel include:

1. Chemical processing and storage equipment.
2. Oil refining equipment
3. Medical equipment
4. Marine environment, especially in the presence of chloride

Product Application

widely used in aerospace, petroleum, chemical industry
scientific research and transportation industries
electroplating industry for pickling mesh, printing mesh
battery industry and a variety of sophisticated filtration products.

Product Features

Temperature resistance, acid resistance, alkali resistance.
The oil-water separation filter has a temperature resistance of 260 ° C

An acid resistance of 86%, and an alkali resistance of 90%.
Its function is to separate the water and oil in the oil.

It has a small resistance to the oil and allows the oil to pass smoothly.

It has a large resistance to the water. 10KG pressure water cannot pass through, so it plays the role of oil-water separation.

Specification

mesh	Wire Diameter		Aperture		Open Area	Weight
	Wire Diameter		Aperture		Open Area	Weight
	Inch	MM	Inch	MM	(%)	(kg /Square meter)
1x1	0.08	2.03	0.92	23.37	92	2
2X2	0.063	1.6	0.437	11.1	87.4	2.5
3X3	0.054	1.37	0.279	7.09	83.8	2.7
4X4	0.047	1.19	0.203	5.16	81.2	2.7
5X5	0.041	1.04	0.159	4.04	79.5	2.6
8X8	0.02	0.5	0.105	2.675	71	1
9X9	0.02	0.5	0.091	2.32	67.7	1.1
10X10	0.025	0.64	0.075	1.91	74.9	2
12X12	0.02	0.508	0.063	1.6	75.9	1.5
12X12	0.022	0.55	0.062	1.567	54.8	1.815
14X14	0.02	0.508	0.051	1.3	71.9	1.8
14X14	0.0177	0.45	0.054	1.36	75.14	1.417
16X16	0.016	0.4	0.047	1.188	55	1.28
16X16	0.018	0.457	0.0445	1.13	71.2	1.6
18X18	0.017	0.432	0.0386	0.98	69.4	1.6
20X20	0.02	0.24	0.03	0.76	76	0.56
20X20	0.016	0.33	0.034	0.86	72.2	1.1
20X20	0.014	0.35	0.036	0.92	52.5	1.225
20X20	0.016	0.4	0.034	0.87	46.9	1.6
20X20	0.0177	0.45	0.0322	0.82	41.7	2.025
22X22	0.012	0.3	0.034	0.854	54.76	0.99
24X24	0.014	0.35	0.028	0.708	44.77	1.47
30X30	0.014	0.35	0.0195	0.5	34.6	1.84
30X30	0.012	0.305	0.0213	0.54	63.9	1.4
30X30	0.0094	0.24	0.0243	0.62	72.1	0.84
35X35	0.0079	0.2	0.021	0.526	52.5	0.7
35X35	0.0098	0.25	0.0187	0.475	42.92	1.09
40X40	0.0079	0.2	0.017	0.435	46.9	0.8
40X40	0.01	0.254	0.015	0.38	59.9	1.3
40X40	0.014	0.35	0.011	0.285	20.14	2.45
50X50	0.0055	0.14	0.0145	0.368	72.4	0.48
50X50	0.0079	0.2	0.012	0.308	36.76	1
60X60	0.0047	0.12	0.012	0.303	71.6	0.42
60X60	0.0059	0.15	0.0107	0.273	64.5	0.65
60X60	0.007	0.18	0.0096	0.243	33	0.972
80X80	0.047	0.12	0.0078	0.1975	38.7	0.576
80X80	0.0055	0.14	0.0069	0.117	45.5	0.76
100X100	0.0039	0.1	0.006	0.154	36.76	0.5
