HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
Payment & Shipping Terms:
|Advantage:||High Ware Resistence||Color:||White And Blue|
|Usage:||Dryer And Filter||Function:||Paper Mill Dryer Belt|
SGS polyester mesh belt,
polyester mesh belt SGS,
3mm thickness polyester mesh belt

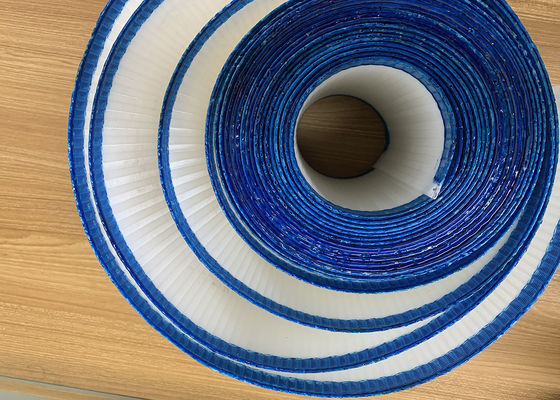

Spiral White Polyester Mesh Belt For Material Handling Little Ring
Large Loop Polyester Mesh Belt Spiral Link Dryer Fabric for Food Stuff Processingwith loop is also called polyester spiral wire mesh belt,Spirl wire dryer screen.
According to loops size:Polyester Mesh can be devided into large loop Polyester Spiral Mesh Belt,Medium Spiral Wire Mesh Belt,Small Loop Wire Mesh Belt.
According to stuff:Polyester Mesh Belt can be devided into Polyester Spiral Mesh Belt and Polyester Spiral Mesh Belt with Stuff,which is polyester wire,which can be added into the loop,the numbers of the wire can be 3,4,5.
According to color,Polyester Mesh Belt can be devided into white,blue,red and black.
Polyester Spiral Mesh Belt with stuff,this kind of polyester dryer screen belt is filled with stuff to reduce the air permeability and to intensive the opening ,then to reduce the material loss from the opening.
Polyester Spiral Mesh Belt with Stuff is mainly used in sludge desiccation,paper pulp washing,coal washing,chemicals,dehydration of wine bran,vinegar bran dehydration and other industries.It is better in the high ventilation part of drying part of paper-making machines.
The product has good Hard-wearing
It has a flat surface
Good air permeability
Stable property against heat and moisture
Low thermal shrinking
Less elongation at heat
Long service life
Resistance under 180 degrees
Easy to clean
Unique structure help the solid granule get easily off the belt after filtration
Tear-resistance, shrink-resistance and abrasion resistance
Safe for food processing applications
High dimensional and diagonal stability,good air ventilation.
Seamless - the seam has exactly the same strength of the belt
Spiral belts are mainly used in filtration or separation applications for municipal projects for example waste water treatment, and various sludge belt press liquid filtration applications. Our products are suitable for most mechanical dewatering cases of various materials.
polyester spiral dryer belt is suitable for high-pressure pressfilter washer, horizontal belt washer, pulp-liquor separator and netting belt coal-washer.
polyester spiral dryer belt are extensively used for producing cardboard,kraft paper,corrugated paper,paper for train fare,single two-shed press-filter,instead of papermaking machine dry blanket,canvas,as well as apply to colliery,food and medicine as conveyor belts.
polyester spiral dryer belt are made with special first quality yarns in 100%polyester,every spiral link dryer fabric is heat-set granting a high degree of stability and long running life.
1. Separation in solid and liquid to equip with filter press
2. conveyor belts filtration machine
3. Filter Leaf ,
4. Horizontal Rotating Pan Filter ,Vacuum filter
5. in Chemical industry ,Fertilizer industry
6. Sugar making ,
7. food and beverage ,metallurgy
8. Building ,Waste water dealing ,and so on .
Advantages of our spiral belts are focusing on: strength, flat surface, good air permeability, stable property against heat and moisture, low thermal shrinking, less elongation at heat and a long lifespan.
|Loop Weave Model||Wire / Thread Diameter (mm)||Thickness(mm)||Weight(kg/m2)||Air Permeability
|Large Loop 4070B||0.9||1.1||3||1.7||20500+-1500|
|Large Loop 4070A||0.9||1.1||3||1.9||5250+-500|
|Medium Loop 3868B||0.7||0.9||2.5||1.4||18500+-1500|
|Medium Loop 3868A||0.7||0.9||2.5||1.7||4750+-500|
|Small Loop 3252B||0.5||0.7||1.9||1.1||15000+-1500|
|Small Loop 3252A||0.5||0.7||1.9||1.4||4000+-500|
